High Illumination 5W LED Veterinary Head Lamp with One Battery
Features:
Scope of application: Medical head lamp, for medical field except ophthalmology. Wear on the operator, lighting for clinical examination.
Characteristic: Medical head lamp, operate simple, easy to install ,low-voltage safety. It is used in outpatient, ward and departments in the general hospital, community hospital, army field hospital and so on.
Product component: The main lamp, supporting parts, power supply box, charger, etc.
Performance:
This product design with low voltage output, cold light, adopt green energy-saving light source,its has the following advantages: low-voltage,energy-saving,stable performance, safe and reliable, long service life.
The design and production of this light source strictly executes the first part of the safety requirements of medical electrical equipment GB9706.1-2007: general requirements which is guaranteed in safety.
Main Technical Parameters:
Model
|
C.T.
|
Power
|
Input
power
|
Power supply
time
|
Charge
Time
|
Battery capacity
|
KM11-LHL48
|
6000k±500k
|
5W
|
≤10W
|
4h
|
5h
|
DC3.7V
4000 mAh
|
Requirements of working environment:
A. Environmental temperature: 5℃~40℃
B. Relative humidity : ≤85%
C. The atmosphere: 86.0 kPa~106.0kPa
Product list:
Head light: one
Power box of A-6: one
Charger: one

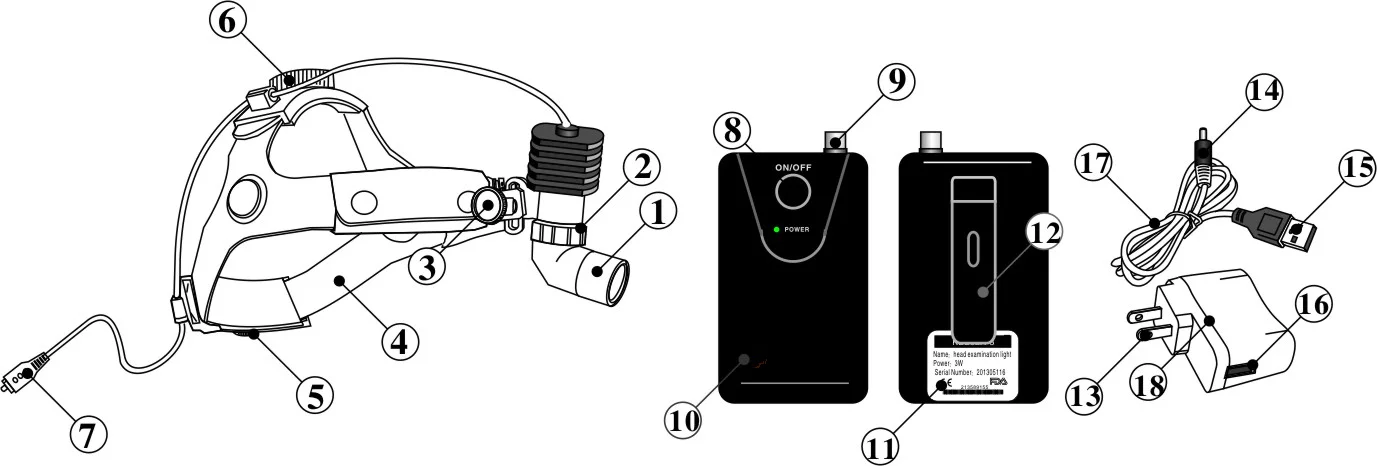

Product Interface:

1.Lamp holder 2. Light spot adjusting ring 3. Lock switch of the lamp head 4.Headband 5.Back tightness-adjusting knob 6.Top tightness-adjusting knob 7.DC power plug 8.Power switch 9.DC output socket 10.Power supply box 11.Product label 12.Back clip of the power box 13.AC power plug 14.2.1plug 15.USB plug 16.USB plug hole 17. Battery charging cord 18.Charger
