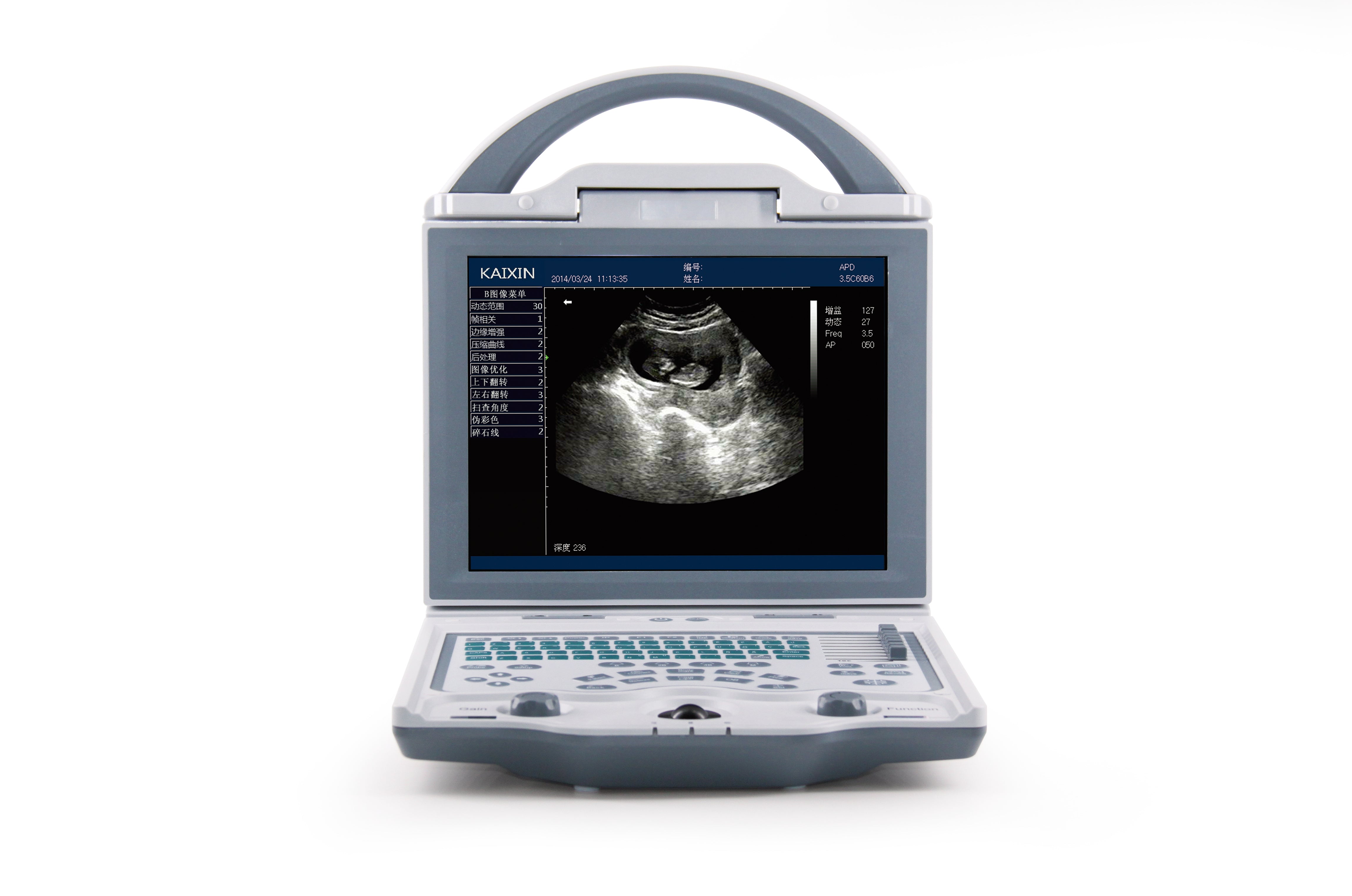

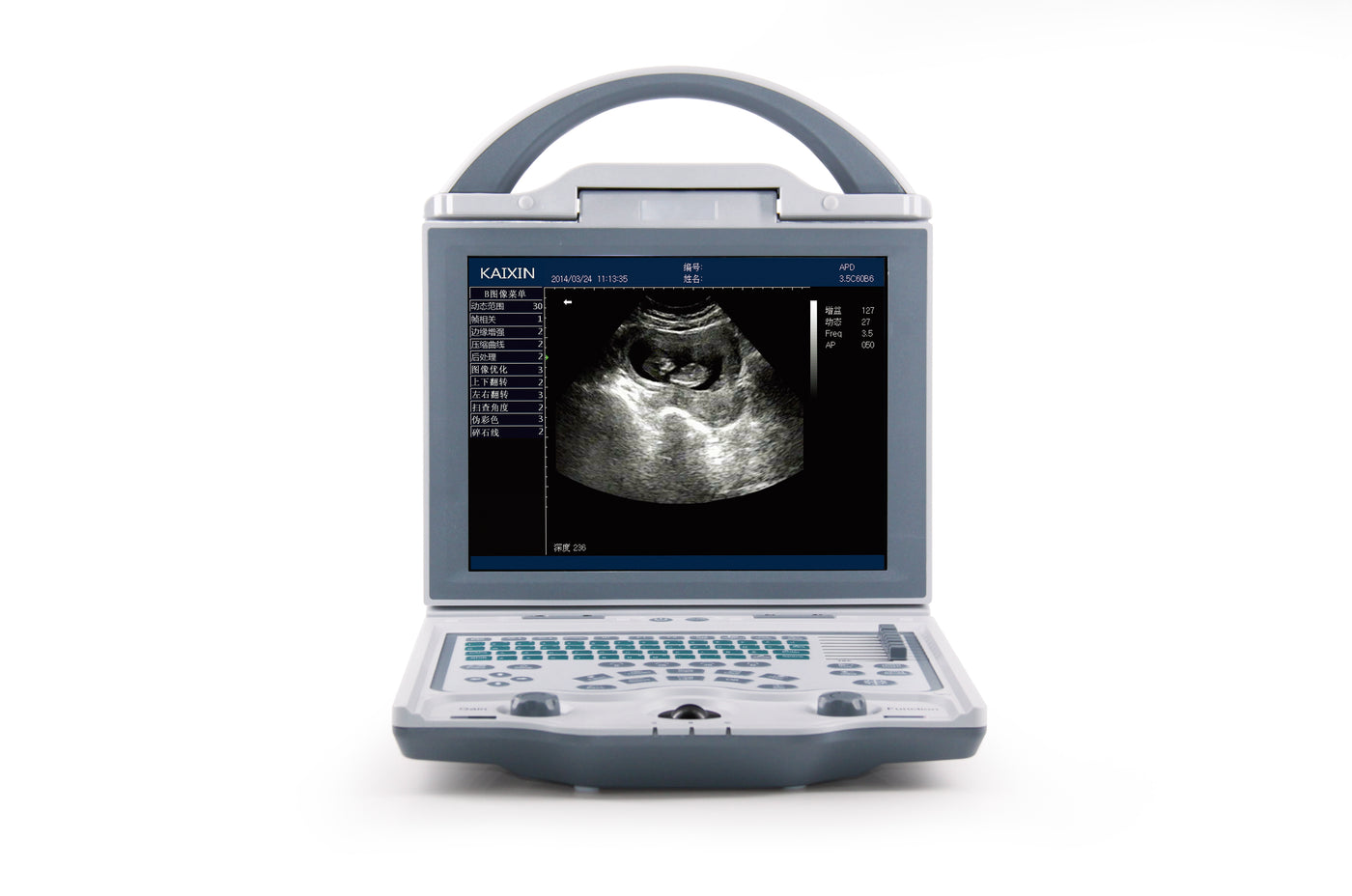

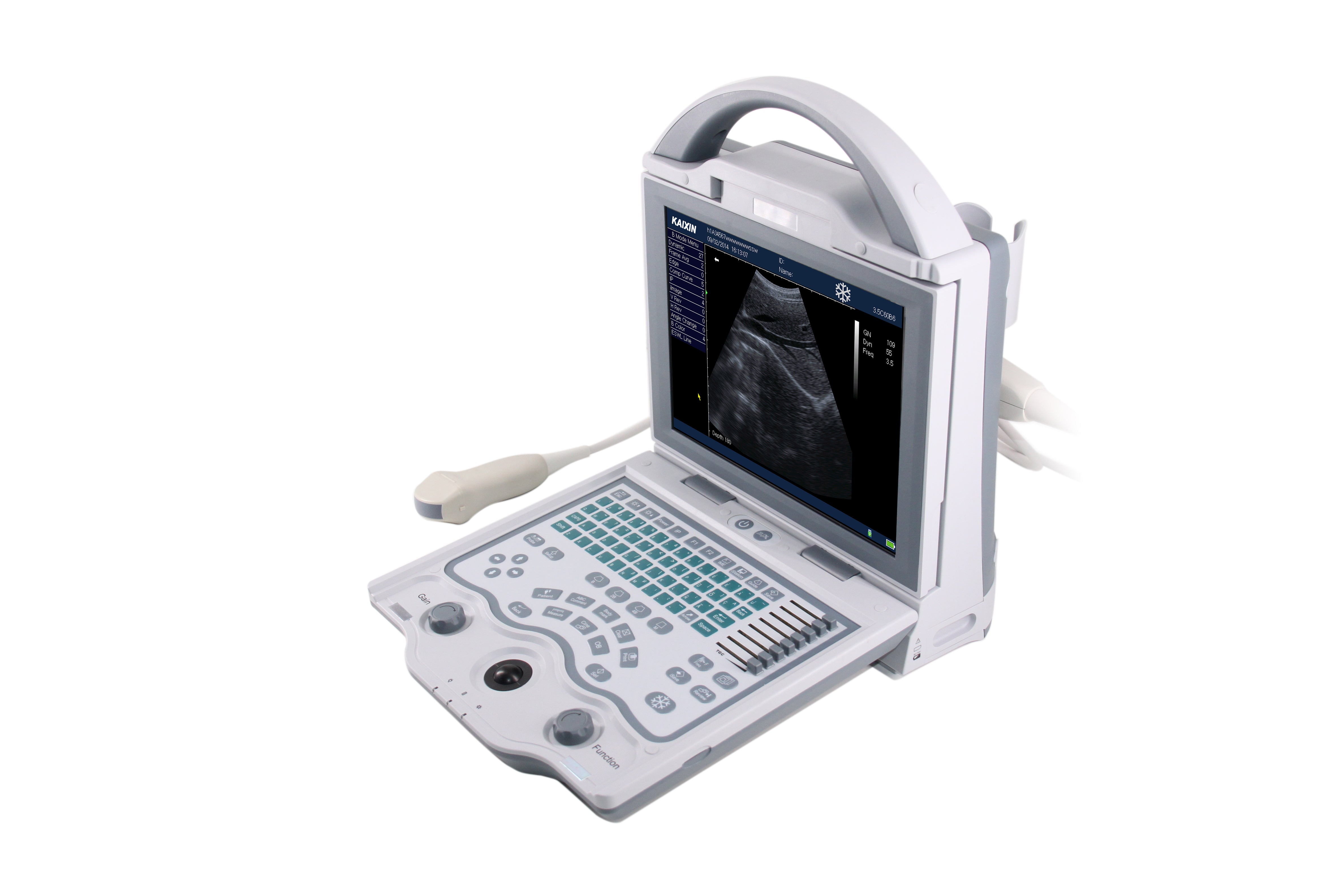

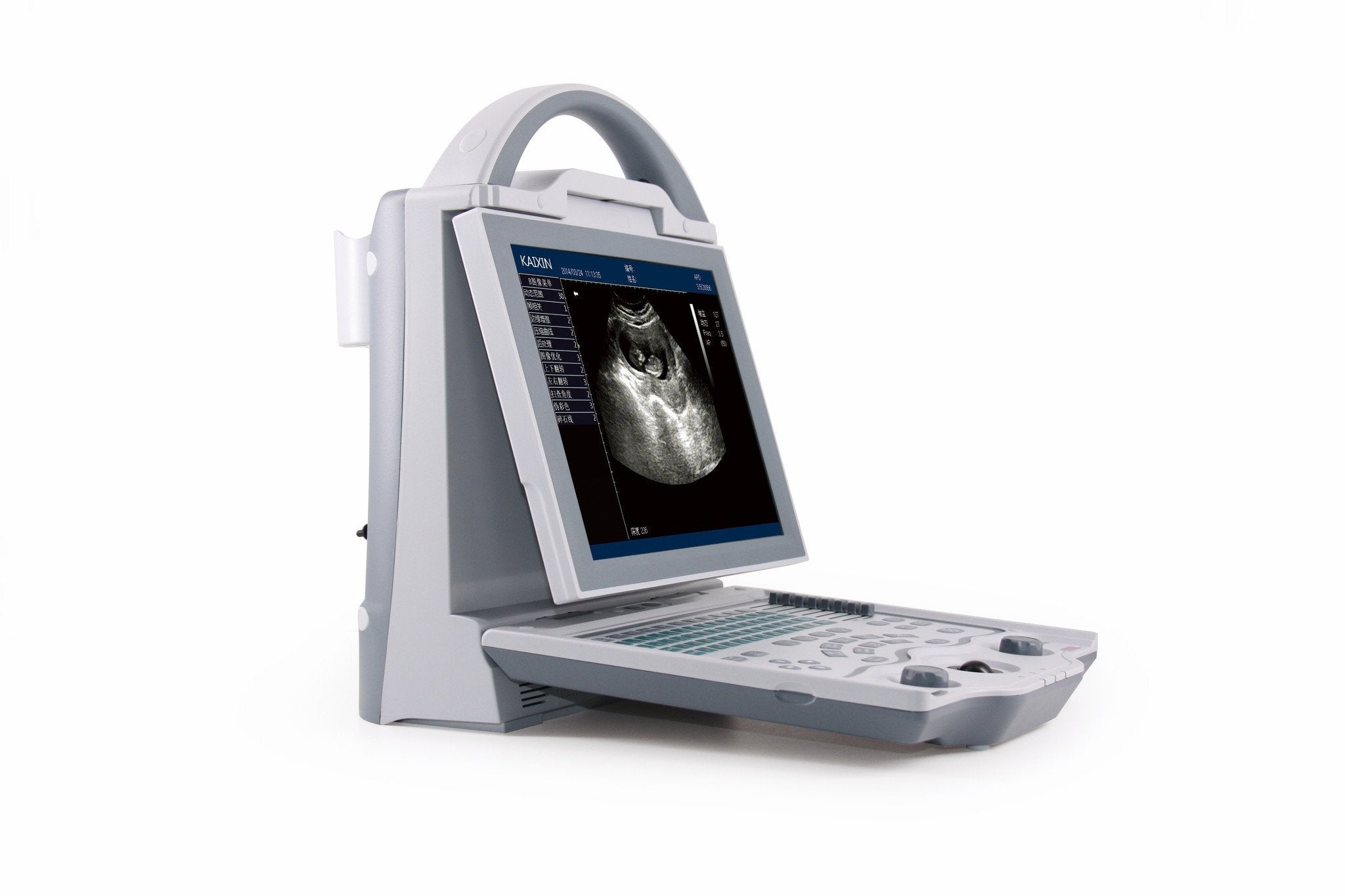

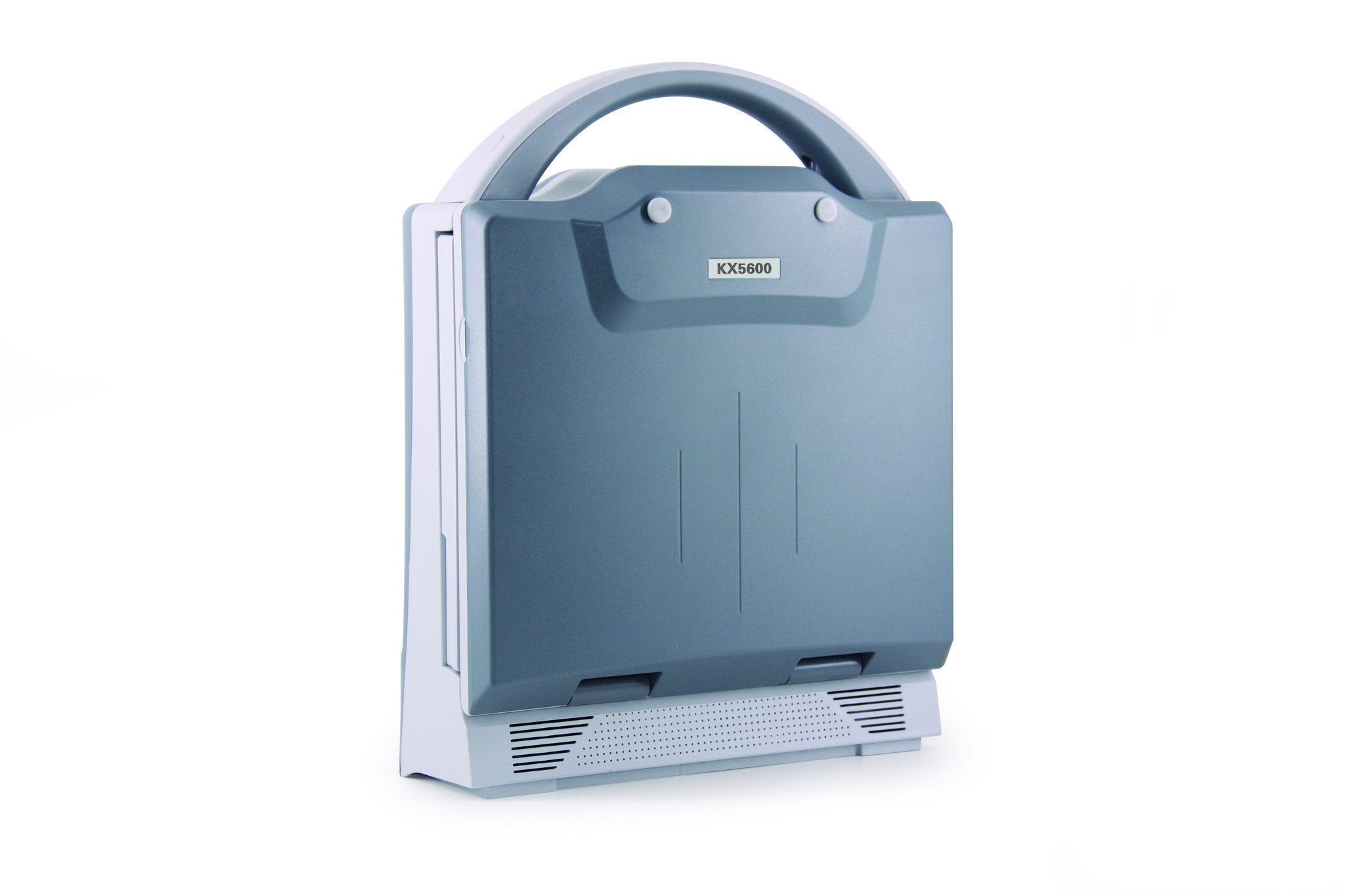

KX5600V

New Kaixin Mobile LED Ultrasound With DICOM

KX5600V is the newest scanner from Kaixin.  Provides good image quality at an affordable price.

Advantages

  • Lightweight at only 10 lbs, including battery and probe.  Similar ultrasounds are around 20 lbs.
  • Large 10.4" LED screen, with full screen image.
  • Two standard probe connectors
  • Only veterinary ultrasound with standard DICOM
    • (Digital Imaging and Communications in Medicine (DICOM) is a standard for handling, storing, printing, and transmitting information in medical imaging. It includes a file format definition and a network communications protocol.)
  • Battery included, with 4 hours standard battery life.
  • LED monitor allows outside work in sunlight without a sun shade.
  • Anti-dust and anti-spalsh keyboard is convenient for outside conditions.
  • Affordable price, similar models sell for above $4,999.
  • 70mm rectal probe lens and 70mm wide image. Wide image is good for seeing big follicles in large animals.

Specifications

  • 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle.
  • Adopt ARM7 embedded control system + FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
  • Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese

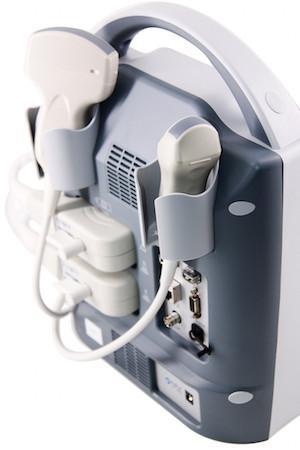

  • Two probe sockets, auto-identify different optional probe
  • Body marks:1.General 2. Bovine  3.Canine  4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body marks indicating probe position
  • Display mode:B、2B、4B 、B/M、M
  • Adjustable depth: 10 grades, max depth to 236mm
  • Gain:0~127dB
  • Contrast:27~90dB
  • Gray scale:256
  • 8 steps intelligent TGC
  • 8 kinds pseudo colors
  • Image storage: 4G hard disk to permanently store about 5000 frames images
  • Cine loop:256 frames
  • Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
  • the gravel software package with real-time position line measurement
  • Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
  • Cardio measurement:Depth, slope, heart rate, cycl;
  • OB measurement including: Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth
  • Other measurement: pig’s meat factor measurement
  • OB report function
  • One-key store: concise and practical
  • One-key review:fast, practical image review function
  • One-key Print
  • One-key Transfer the current frozen image to net workstation to complete its image text report and print directly
  • Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station which is really complicated and waste time)
  • Unique One-key-light keyboard function for black room use
  • Display brightness adjustable
  • Dual TV output: PAL/NTSC, can connect video printer when necessary
  • Power supply:100-240V~ 1.2-0.6A  frequency:50-60Hz
  • Power supply adaptor output:DC12.8V 3.0A
  • Main unit weight:4.5kg(without accessories)
  • Main unit dimension:256×150×326mm(L×W×H)

Main basic configuration

  • Main unit
  • 6.5MHz linear rectal probe
  • Power supply adaptor
  • Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
  • Reticle
  • Two probe sockets
  • DICOM 3.0

Optional

  • 4.0MHz Convex Rectal probe
  • 6.5MHz Micro-Convex Probe for small animals
  • 3.5MHz Linear Probe for eye muscle
  • 3.5MHz Convex Probe
  • 7.5MHz Linear Probe
  • Battery charger
  • Trolley
  • Video printer(UP-897MD)
  • Ethernet Switch
