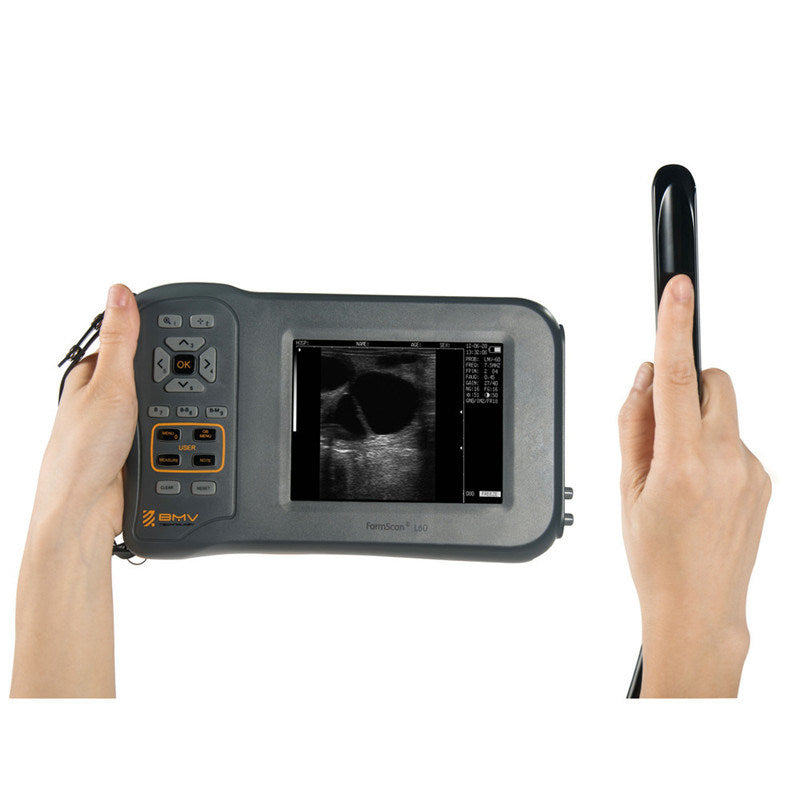

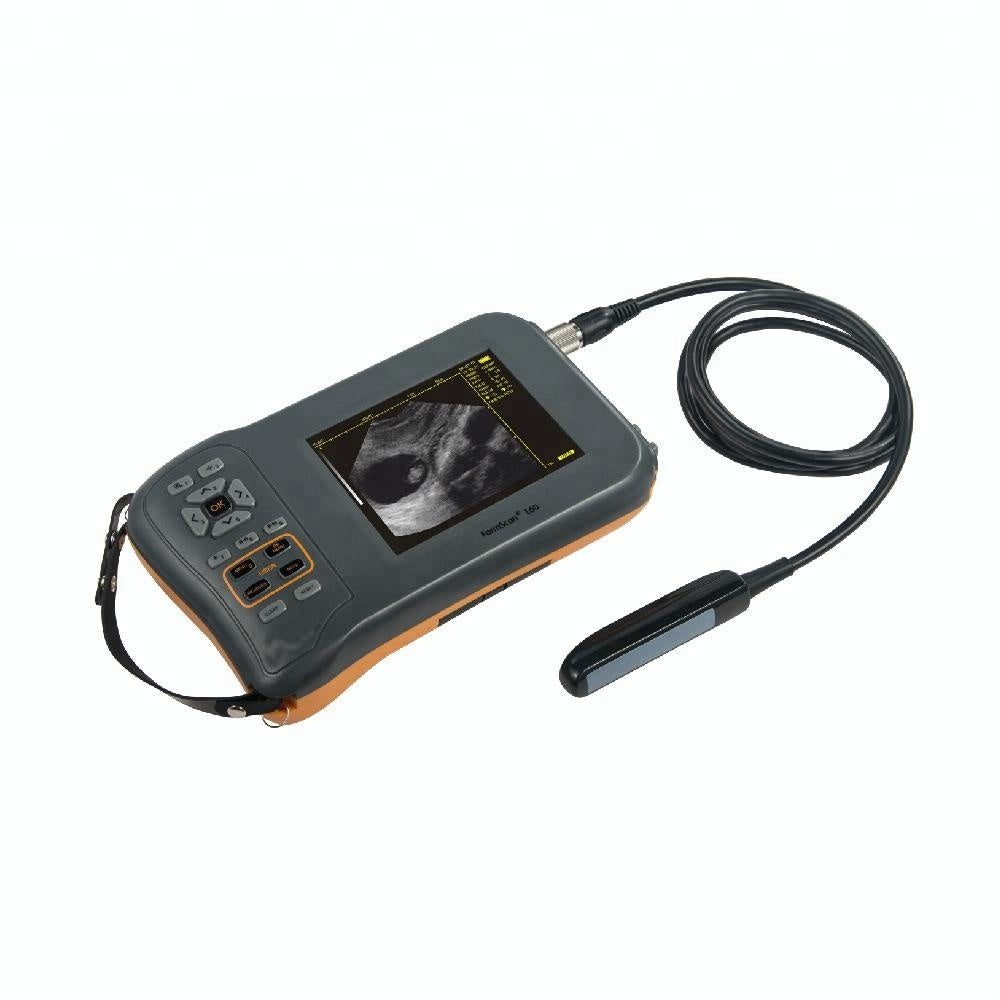

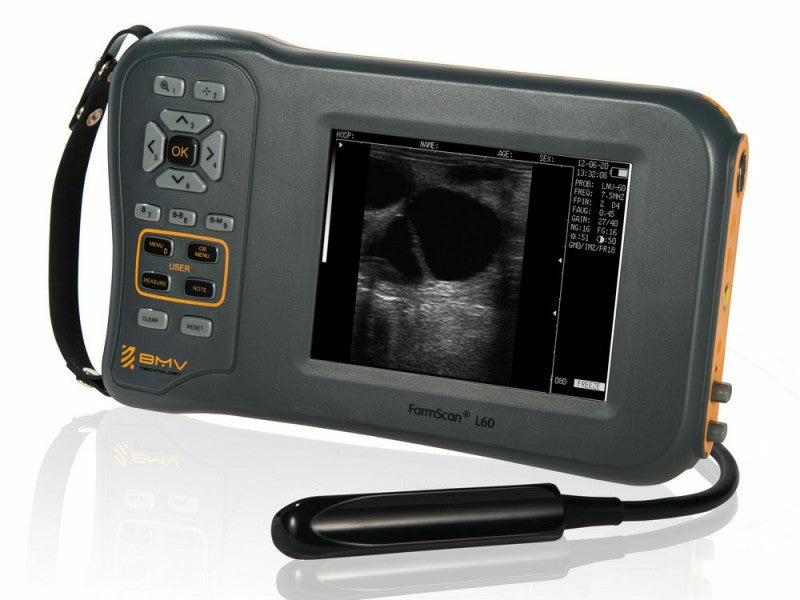

BovyEquiScan60L

BovyEquiScan60L - Comes Standard with Linear Rectal Probe

Dimensions

17.0 x 17.0 x 6.0 cm

Unit weight

1720 g including probe

Battery weight

280 g

Image presentation (projection) mode

B Mode – live imaging,

B+B Mode (2B Mode – Dual Mode Display),

B+M Mode

Probe frequency and type

electronic linear 7.5 MHz (from 4 to 9MHz)

Scanning range

from 0 to 12 cm (for linear probe, rectal use)

Screen

LCD, LED screen, 5.0’’ diagonal

Keyboard

membrane

Cine loop (image sequence)

256 frames (ca. 20 seconds)

Image memory

200 images with date, index No. and description

Cine loop memory

50 cine loops with date, index No. and description

Transmission to the computer

through the USB2.0 port

Power source

Li-ion battery pack, 14.4 V, 3.1Ah

Continuous operation on fully charged battery

about 5 h

Pack charging time

2 hrs 30 min

Battery low indicator

automatic – graphic indicator

Working temperature

- 10°C do + 40°C

Storage temperature

0°C do + 45°C

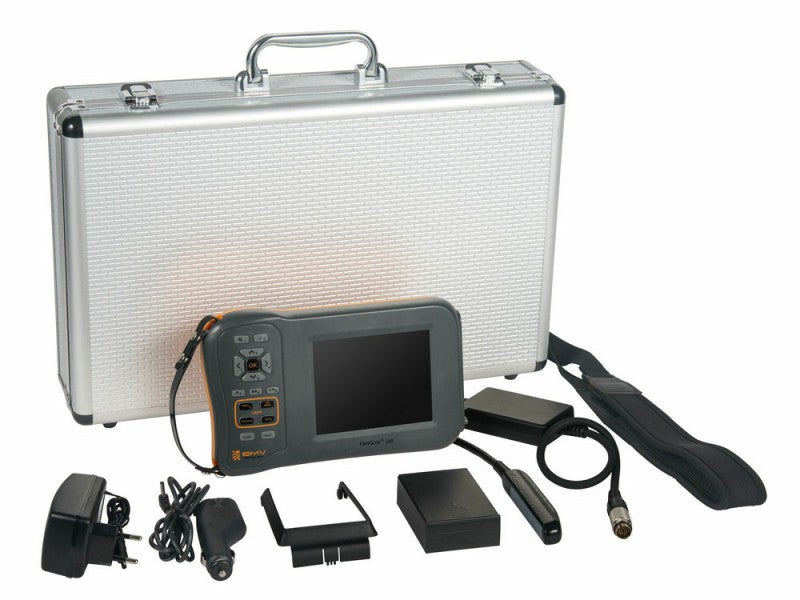

A standard set contains:



NO.

DISCRIPITION

QTY

1

Main Unit: L60

1

2

Rectal Linear Probe

1

3

110V~240V AC Adapter  for Machine

1

4

Li-ion Battery 2600 mAh

1

5

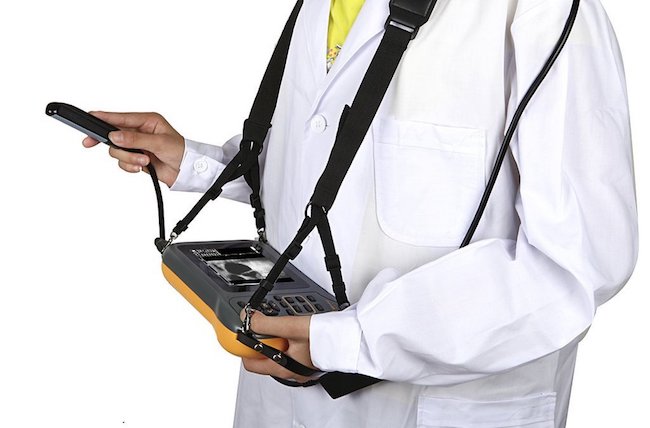

Shoulder straps

1

6

Wrist strap

1

7

Basic User's Guide

1

8

Desk-hold for machine

1

9

Packing List

1

10

Aluminium alloy carry case

1

11

110V~240V AC Adapter for Battery

1

12

12 months warranty both for machine and probe under PRO-SUPPORT

1



Optional Accessories:

NO.

DISCRIPITION

QTY

1

Additional Li-ion Battery 2600 mAh

2

2

Car mobile Charger

1

3

Convex rectal probe

1

4

Linear Abdominal

1

5

Convex Probe

1

6

Micro-convex Probe

1

7

I.F.R. Introducer for Rectal Linear probe

1

8

I.F.R. Introducer for Convex Rectal probe

1

9

I-Scan® V1 Videos Goggles

1

10

I-Scan® V2 Videos Goggles

2

11

Additional 12 months warranty service for main machine under PRO-SUPPORT

1

12

Leather Protector

1
