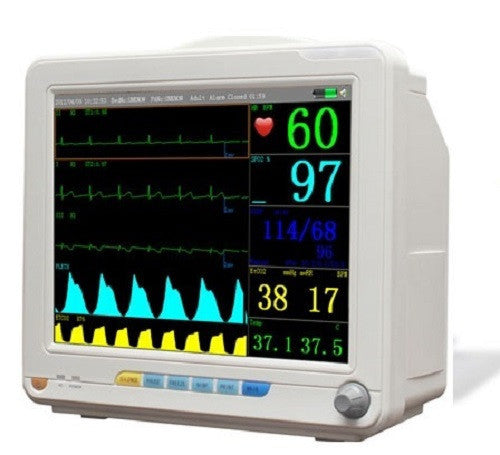

Patient Monitor KM-12

Veterinary 12" Patient Monitor

KM-12 animal patient monitor with specific vet software and accessories. Includes small cuffs, lingual SPo2 probe, and ECG with clips.


  • One level menu, easy to use
  • Parameters ECG/RESP, SpO2, NIBP, TEMP, Pulse Rate and IBP(optional)
  • Maximum 720 hour graphic and tabular trends of all parameters
  • Suitable for adult, pediatric and neonatal patient
  • Arrhythmia analysis, ST calculation, Pace analysis
  • Anti-ESU, anti- defibrillator
  • Standard network interface, can connect to central monitor system


  • Screen 12" TFT,
  • Resolution ratio 800x600, up to 12 waveform
  • Weight 4 lbs
  • Size 300x275x150mm
  • Power supply 100~240 VAC, 50/60 Hz, Pmax=90VA Fuse T1.5A
  • Battery 2.6 Ah 12V rechargeable battery
  • Operating time after full charge is more than 1 hour.
  • Operating time after first low battery alarm will be about 5 minutes.
  • Charging time less than six hours.
  • Plumic acid battery


  • Recorder(Built-in)
  • CO2
  • Anesthesia depth
