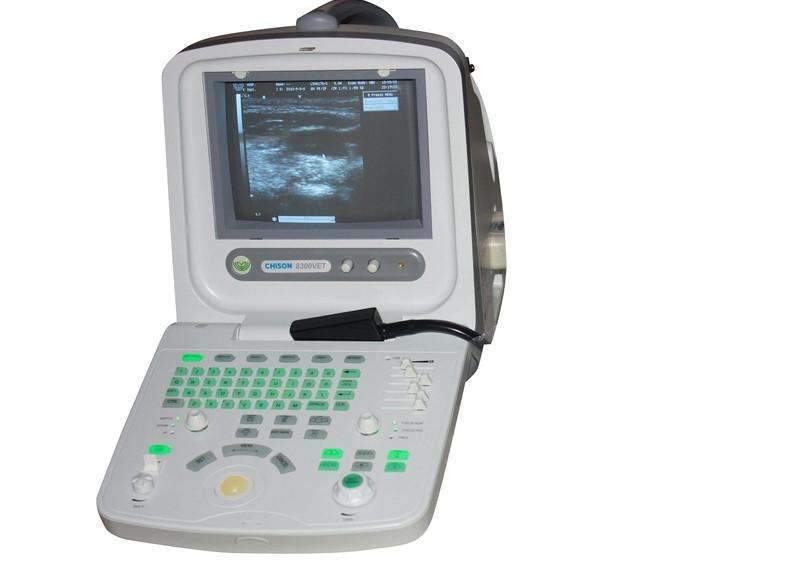

Chison 8300V Demo Model

A Best Selling Digital Compact at Great Value! Demo model was working few hours, only few left  with Rectal linear probe.

Chison 8300Vet Ultrasound is a quality digital compact machine that has sold for a long time with excellent customer reviews. Best for equine and bovine diagnostic reproduction and pet ultrasound examination!

Has great customer reviews. "As desribed, thank you!" Buyer: pnhsavvy12.


-Comes with Probe of your choice: Rectal, Convex, Micro Convex, Linear Array
-Optional two Probes of choice
-Two year warranty
-Wide Applications and Special Software for VET
-Back-lit ergonomic keyboard for good visibility in dark room
-Neat and Clean keyboard, easy to remember

Software Packages

  • Canine: GS, CRL, HD, BD
  • Feline: HD, BD
  • Equine: GS
  • Bovine: BPD, CRL, Trunk Diameter
  • Ovine: BPD, CRL, Trunk Diameter

Scanning Methods

  • Electric Convex, Electronic Linear, Electronic micro-convex

Display modes

  • B, B/B,4B, B/M, M

Gray Scale

  • 256 levels

Digital Scanning Techniques

  • Real-time dynamic imaging: RDF,RDA,DFS,DRA.
  • Harmonic imaging, Compound Imagaing, VHSI (Image optimization software)

Scanning Depth

  • 240mm Maximum (depends on the probe type)
  • Probe Frequency:2.5MHz - 10.0MHz (Depend on the probe type)

Scanning Methods

  • Electronic Convex/Electronic Linear/Electronic Micro-Convex


  • Abdomen, OB&GYN, Small parts, Reproduction, Cardiology, etc.

Display modes

  • B,B/B,4B,M,B/M


  • 10-inch SVGA high resolution monitor

CINE loop

  • 128 frames

Image storage

  • Can do permanent storage, Built-in memory, and USB disk (through USB port)


  • Has 4-step

Image Processing

  • Pre-processing:IP selection, dynamic range, edge enhancement, smooth, frame averaging, scanning angle selection, line density selection etc.
  • Post-processing: Y correction, gray transformation, gray rejection etc.
  • STC:6 slides for Near, Far and Overall gain control

Image Reversing

  • Left/Right, Up/Down

General Measurements

  • B mode: distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile, etc.
  • M mode: distance, time, velocity, heart rate, etc.

Archives Management

  • Patient information management


  • Full screen documentation, hospital name, patient name, date/time
  • Annotation database available, pre-saved phrases can be recalled

Power Supply

  • AC230V ± 10%,50Hz(standard)/AC110V ± 10%,60Hz (Upon customer request)

Standard Configuration

  • Main unit + 6.0MHz Micro convex probe + 2 probe connectors + 2 USB ports+ VGA port


7.5MHz long lens linear rectal probe, 7.5MHz linear probe, 3.5MHz Convex probe

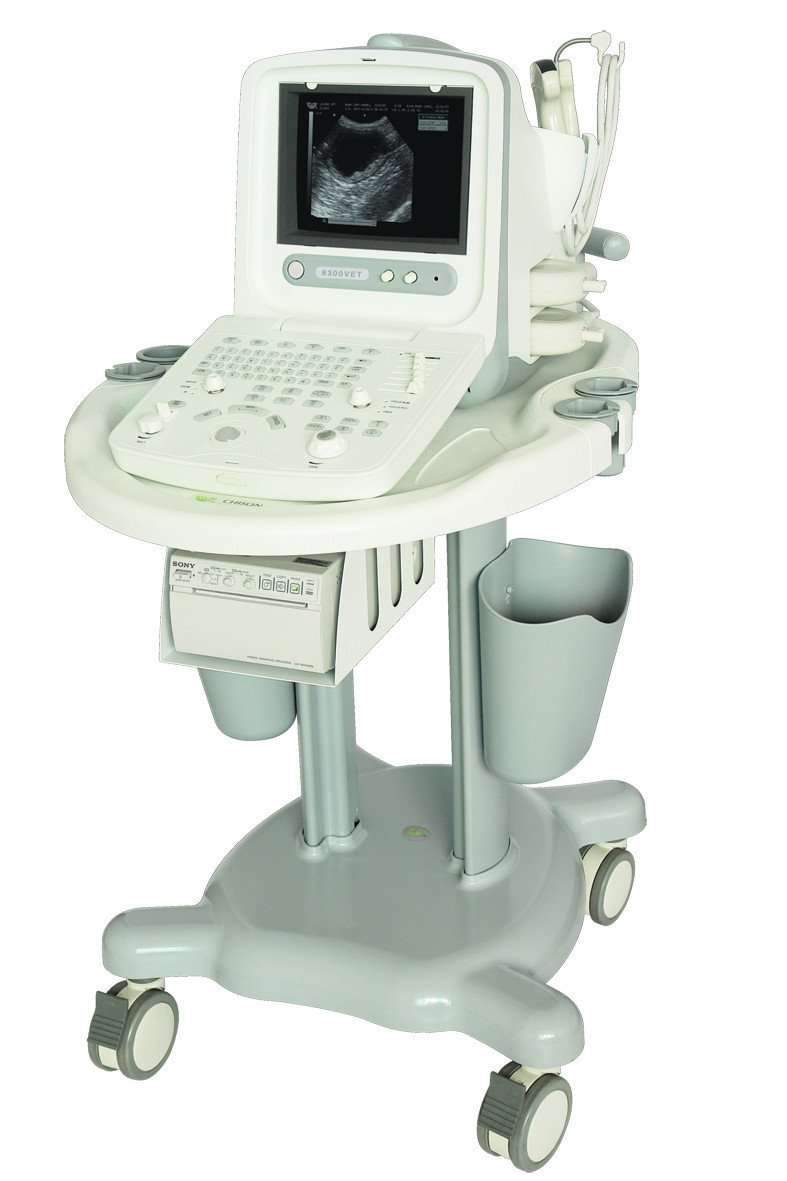

USB flash disk , Trolley(TR -8000), Video printer, DICOM3.0,
Vehicle power charger, Carrying case, Keyboard water-proof cover

Micro Convex Probe Convex Probe
Linear Array Probe Linear Rectal Probe
