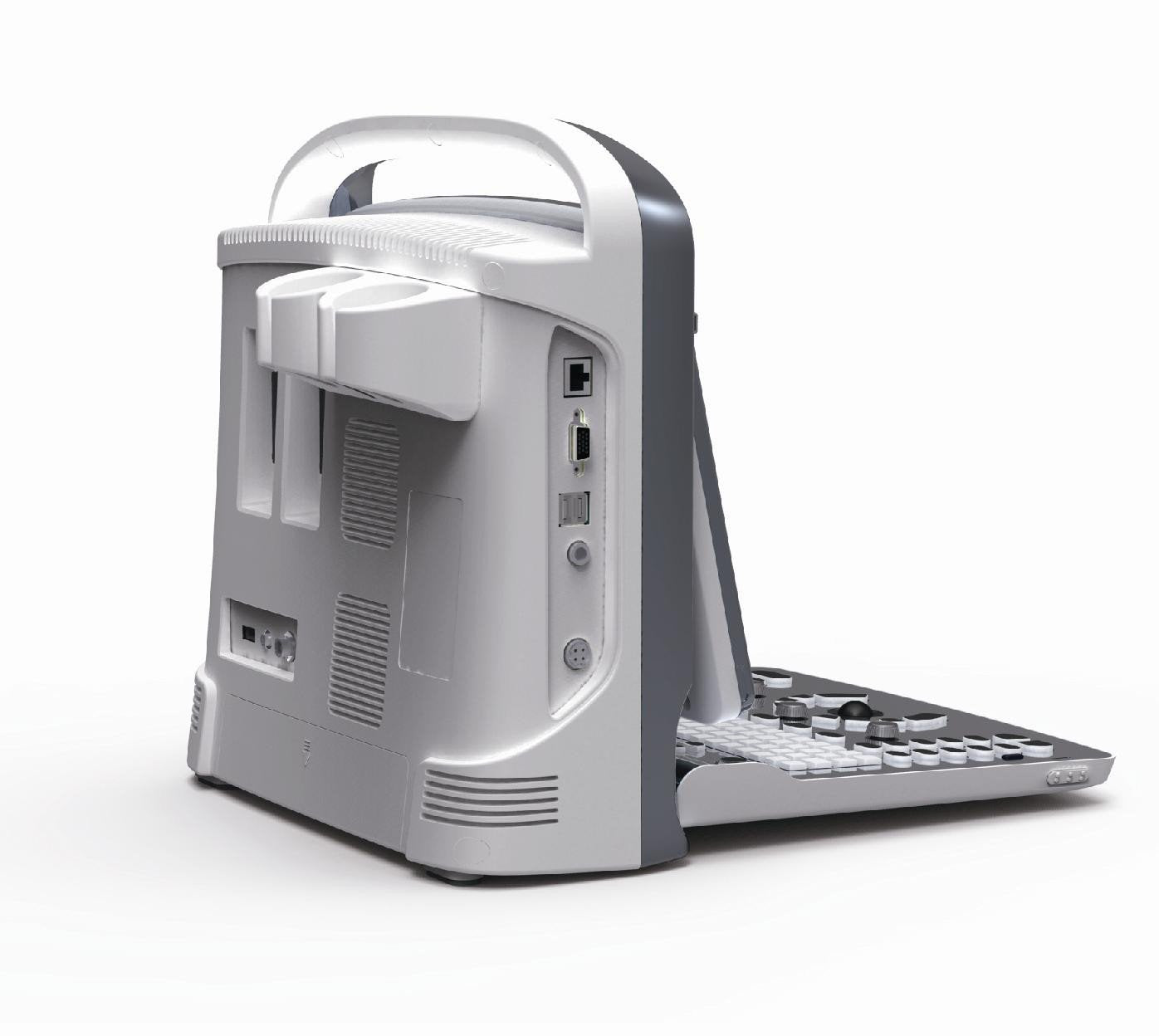

ECO 1Vet is a high quality portable ultrasound which offers excellent image quality. It is lightweight and very easy to use. ECO1VET is both hearty and reliable for pregnancy examinations with all kinds of animals. Can also be used for heat detection in cattle and mares enabling both clinician and owner to determine the best time for insemination, sex determination, and measurement of follicles. Software packages includes (Canine, Feline, Equine, Bovine, Ovine).
ECO 1Vet portable ultrasound is an excellent cost effective choice for a diagnostic tool. Offers a streamlined workflow, and a slim light design. Offers high frequency probes with excellent image quality.
ECO 1Vet has a streamlined workflow with real time image save, one key image save for still image and cine loop (most ultrasounds have complicated image save with many steps). Saved image and cine loop are right on the screen to make for easy browsing. Images and cine loop can be sent to USB, and read on PC (most black and white ultrasounds can not read cine loop on PC).
ECO 1Vet is better when compared with Edan DUS 60. DUS 60 cannot include images in report, has fixed screen, is much larger, and keyboard is not streamlined. Compared with Mindray DP10 & DP20, ECO1 has a higher working platform, full screen easy access, comparable image quality, long cine memory, FDA approval, better linear rectal probe, ability to switch from human to vet software, better accessories and a better price.
Specifications for Chison ECO 1Vet
Applications - Large animals: Reproduction, Tendon; Small animals: Abdomen, Small parts, Basic cardiology
12 inch rotatable LED monitor (0 - 30 deg) adapt to different viewing angles
Ultra light and compact design, ideal for mobile services
Display Modes: B, B/B, 4B, M, B/M
Gray Scale 256 Levels
Multiple Beam forming Technology (Enhance Frame Rate, Improve Image Resolution)
240mm Max Scanning Depth (depending on the probe type)
2.5MHz - 11 MHz Probe Frequency (depending on the probe type)
Archives Management - Patient information management, Patient images record, Patient exam report.
Software Packages: Canince:GS, CRL, HD, BD; Feline: HD, BD; Equine: GS; Bovine: BPD, CRL, Trunk Diameter; Ovine: BPD, CRL, Trunk Diameter
Power Supply - AC 240V-100V, 50Hz-60Hz
A broad range of transducers available
Main unit with 12” LED monitor
1pc 5.3 - 10.0MHz linear probe L7M-A
Compound Imaging, Tissue Harmonic, i-image, Trapezoida, Chroma
1 probe connector
Built-in rechargeable lithium ion battery (2 hours)
Carry Roller Bag
Anti-water keyboard cover
2nd probe connector
Deluxe trolley TR-8000
Probes of your choice
C3-A: 3.5MHz Convex (2.5MHz to 5.0MHz) Application: For Abdomen, Large animal
L7M-A:7.5MHz Linear (5.3 MHz to 10.0MHz) Application: Small parts, vascular of small animal or Equine tendon
MC6-A :6.0MHz Micro-Convex (4.5MHz to 8MHz) Application: Abdomen, cardiac, urology, OB/GYN Small animal: 10kg
L7V-A: 7.5MHz Linear rectal (5.3MHz to 10.0MHz) Application: Reproduction, OB/GYN, Large animal
