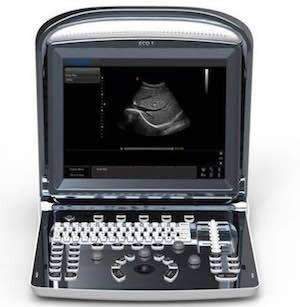

Chison ECO 1Vet

Affordable Premium Portable B&W Veterinary Ultrasound

Chison Eco 1Vet portable ultrasound is an excellent cost effective choice for a diagnostic tool. Offers a streamlined workflow, and a slim light design. Main Unit has two year warranty, and five years for probe. Offers high frequency probes with excellent image quality.

When compared with Edan DUS 60, ECO1 is better. DUS-60 cannot include images in report, has fixed screen, is much larger, and keyboard is not streamlined. Compared with Mindray DP10 & DP20, ECO 1 has a higher working platform, full screen easy access, comparable image quality, long cine memory, FDA approval, better linear rectal probe, ability to switch from human to vet software, better accessories and a better price.


  • Reliable
  • LED High Resolution Screen
  • 30 Degree Rotatable Monitor
  • One Key to Full Screen Mode
  • Compound Imaging, One Step Image Saving, Friendly Easy Review of Images
  • 4G Memory Standard
  • Multiple Beamforming Technology
  • Enhances Fram Rate
  • Improves Image Resolution
  • Supports Video Printer and PC Printer
  • Patient information management, images record, and exam report
  • Full screen documentation, Hospital name, Patient name, Date/time
    Annotation database available, Pre-saved phrases can be recalled


    • Applications for large animal: reproduction, tendon
    • Applications for small animal: abdomen, small parts, basic cardiology
    • Display Modes: B, B/B, 4B, M, B/M
    • Gray Scale: 256 levels
    • Scanning Depth: 240mm Max (depending on probe)
    • Probe frequency: 2.5MHz - 11 MHz (depending on probe)
    • Probe connectors: one
    • Cine loop: 256 frames
    • Zoom: 4 steps
    • AC 240V-100V, 50Hz- 60Hz

    Software Packages

    • Canine: GS,CRL, HD, BD
    • Feline: HD, BD
    • Equine: GS
    • Bovine: BPD, CRL, Trunk Diameter
    • Ovine: BPD, CRL, Trunk Diameter

    General Measurements

    • B mode: distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile, etc.
    • M mode: distance, time, velocity, heart rate, etc.

    Standard Configuration includes

    • Main unit, L7M-A Linear (5.3MHz-10.0MHz) probe, 1probe connector, 3 USB ports, VGA port, Video port, LAN port


    • 2 probe connectors, built-in battery, DICOM 3.0, anti-water keyboard cover, carrying bag


    L7S-A Linear (5.3-11.0MHz) L7M-A Linear (5.3-10.0 MHz)
    L7S-A Linear (5.3-11.0MHz) L7M-A Linear (5.3-10.0 MHz)
    MC6-A Micro-Convex (6.0MHz) MC5V-A Micro-Convex (5.0 MHz)
    MC6-A Micro-Convex (6.0MHz) MC5V-A Micro-Convex (5.0 MHz)
    C3-A Convex (3.5 MHz) L7V-A Linear rectal (5.0-10.0 MHz)
    C3-A Convex (3.5 MHz) L7V-A Linear rectal (5.0-10.0 MHz)


    ECO1 Vet Ovary of Bovine ECO1 Vet Late Pregnancy of Bovine
    Ovary Of Bovine Late Pregnancy of Bovine
    ECO1 Vet Bovine Ovary ECO1 Vet Bovine Pregnancy
    Bovine Ovary Bovine pregnancy
    ECO1 Vet Early Pregnancy of Bovine ECO1 Vet Canine Kidney
    Early Pregnancy of Bovine Canine Kidney

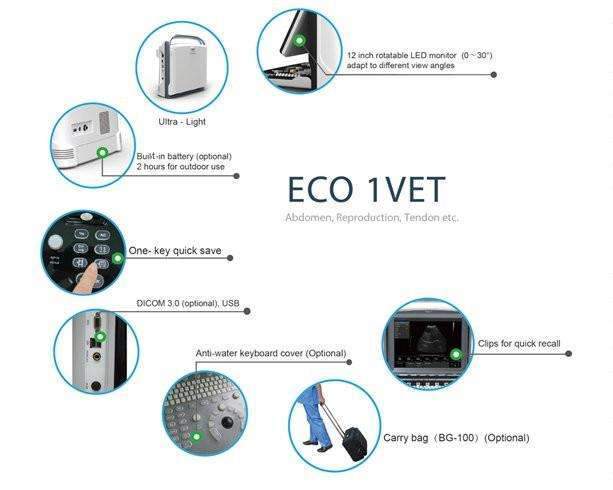

    ECO1 VET Ultrasound Features
