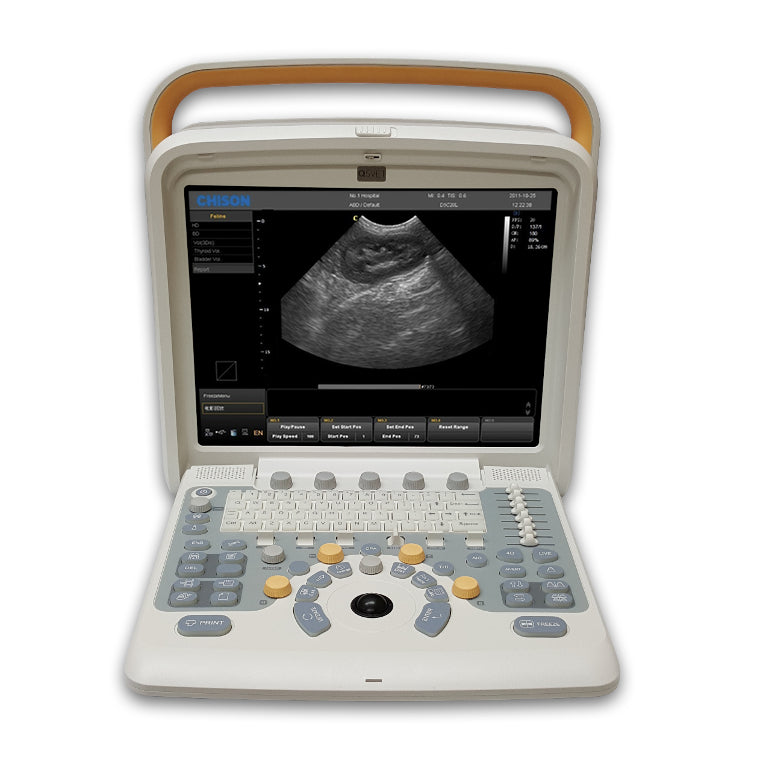

Chison Q5Vet

Affordable Compact Color Doppler Veterinary Scanner

The Chison Q5V color doppler animal ultrasound delivers superb quality.  Has SRA, THI advanced technologies that provide a better contrast resolution. With professional VET probes and VET software greatly helps veterinarians make an accurate diagnosis. Can use for multiple application in both small and large animals.  The Chison Q5V built with a work flow oriented user interface to allow user friendly operation with minimum soft key entries.

Two year warranty on ultrasound and probe.  Comes with your selection of probe, included in price.

Features

  • Streamlined workflow
  • Various measurements
  • Detailed reports
  • Image archieve system
  • Multi-beam former technology
  • Compounding technology
  • Premium Images

Imaging modes

    • B,2B,4B,B/M,M
    • CFM
    • PW Mode
    • Power Doppler / DirectionalPD
    • Duplex
    • Trapezoidal
    • Chroma B/PW

Probes, Wideband, Multi-frequency

  • 6.0MHz Micro-Convex probe
  • 5.0MHz Micro-Convex probe
  • 7.5MHz Linear probe
  • 3.5MHz Convex probe

3.5Mhz Convex D3C60L 7.5Mhz Linear D7L40L
6.0Mhz Micro Convex D6C15L 5.0Mhz Micro Convex D5C20L
7.5Mhz Linear Rectal D7L50L



Image processing technology

  • THI on convex probe
  • Speckle Reduction Algorithm (SRA)
  • Compound technology
  • I-Image:image optimization software

Standard configuration

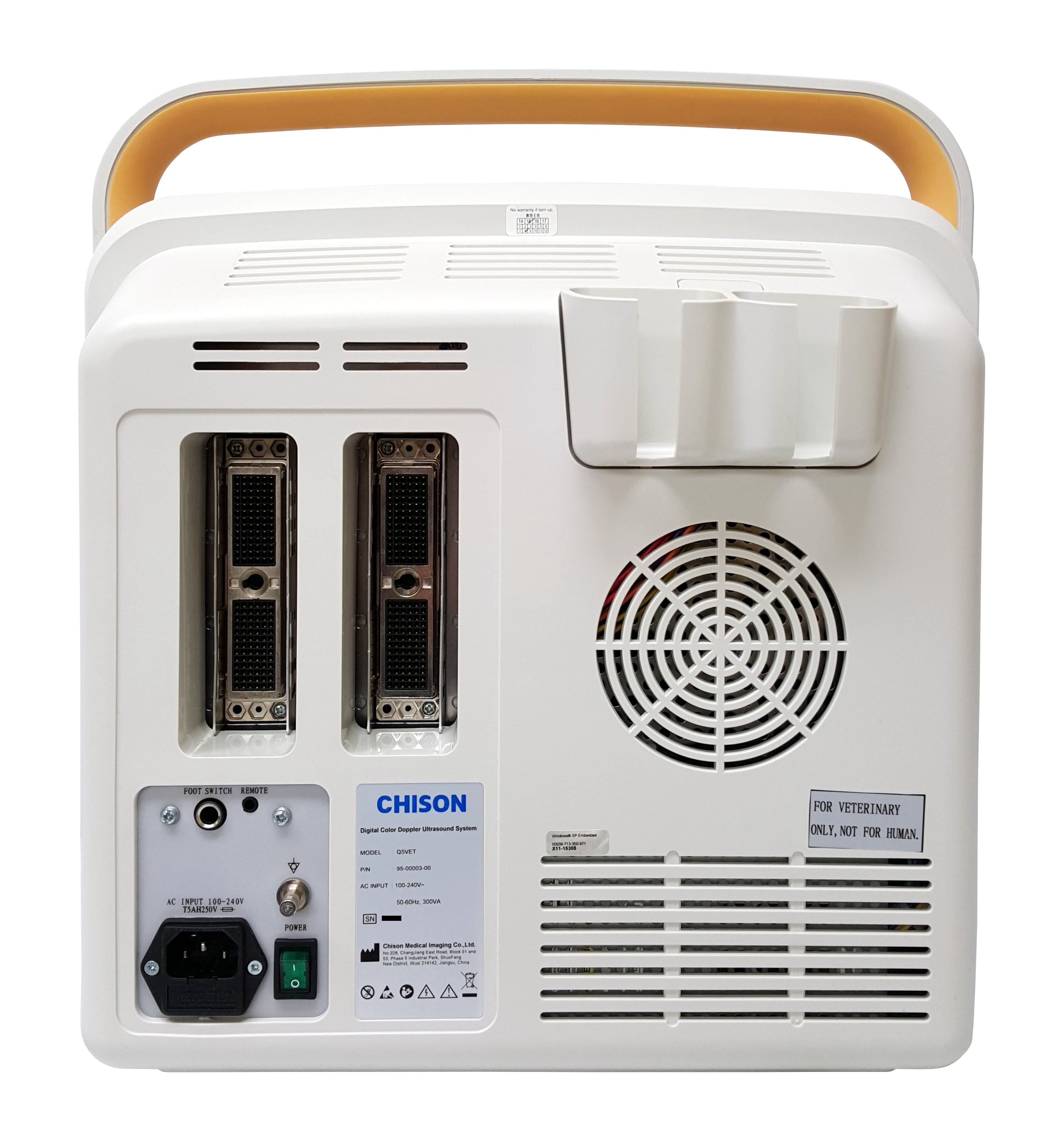

  • Main unit,15" LCD, 2 probe connectors
  • Hard disk,2 USB ports,Video out,TV out
  • LAN port,VGA out

Options

  • 6.0MHz Micro-Convex probe
  • 5.0MHz Micro-Convex probe
  • 7.5MHz Linear probe
  • 3.5MHz Convex probe
  • Video Printer: SONY UP897MD
  • PC Printer (any type)
  • DICOM 3.0
  • I-Image:image optimization software
  • Biopsy kit: for convex, linear,TV probe
  • Foot-switch





Streamlined Workflow

Multi-Beam Former Technology

Compounding Technology

Premium Images
