Product Description
|

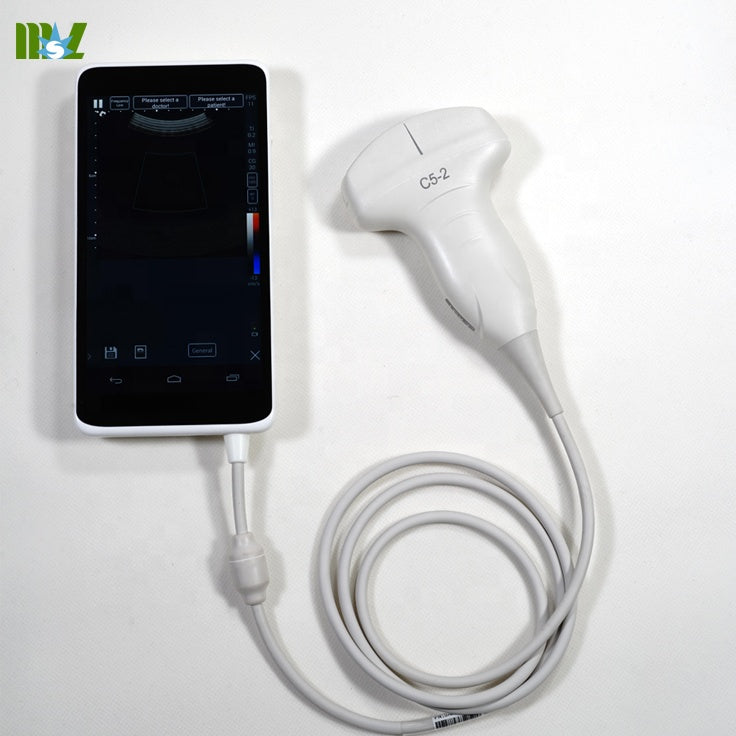

Handheld Ultrasound Scanner (KM6-AC)
|
Monitor
|
6 inch LCD high-resolution (1280*720) full touch screen
|
Probe Type
|
80 elements
|
Frequency
|
Convex array 2-5MHZ / Linear array 5-10MHZ
|
Displaying Mode
|
B, M,C,B+B,B+M
|
Cine-loop
|
1024 Frames
|
Frame Rate
|
Convex:16fps / Linear:24ps
|
Depth
|
Convex:≤200mm / Linear: ≤70mm
|
Grayscale
|
256 level
|
Gain
|
Convex: 0~150dB adjustable,Linear: 0~120dB adjustable
|
Image Processing
|
Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc.
|
Power
|
Built-in battery(5400mAh) to support 2h for continuous scanning
|
Image Format
|
JPEG, DICOM
|
Language
|
Over 60 different language including English, Spanish, German etc.
|
Measurement
|
Length, Area, Arrow, Angle, Perimeter, Text.
|
Camera
|
5M auto focus
|
Wireless Connection
|
WIFI, BLUETOOTH,3G/4G(LTE,WCDMA/EDGE/GPRS/GSM)
|
Memory
|
64GB
|
Connection Interface
|
Micro USB2.0, HDMI,3.5mm headphone jack,
|
Operating System
|
Android
|
Printer
|
WIFI printer
|
File Management
|
Patient file & image file
|
Cloud
|
Cloud image storage, cloud file management, standard API & SDK interface, Information sharing platform
|
Technical Training
|
Online and offline tutorial, self-built online training material
|
Remote Software Update
|
Yes
|
Size
|
165*85*23mm
|
Weight
|
Convex:570g / Linear:550g
|
Standard Configuration
|
Main unit (Transducer included): 1pc,USB wire: 1pc
Adapter: 1pc
Carrying bag: 1pc
Bag of gel(20g): 1pc
|
