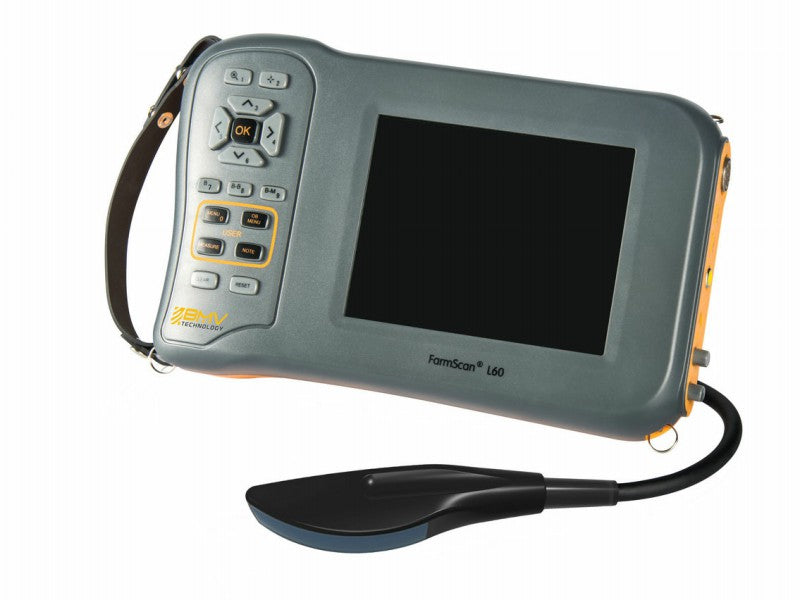

BovyEquiScan60C

BovyEquiScan 60C

Model No.

 60C  - Comes Standard with Rectal Convex Probe

Applications

Special developed for Farm/Meat Production conditions:Bovine,Ovine,Equine Swine,Camel,Fish,Deer,Snake

Warrnaty

2 years warranty time under BMV's PRO-SUPPORT service(probe:14 month after shipping)

Weight

approx 0.60kg

Size

260*120*40 (L*H*D)

Digital Channels

32(depending on different models)

Probe Element

128

Cine-Loop

360~540 ((depending on different models))

Body Mark

16 body marks

Battery

1)  one(1) Lithium Ion above 240 mintues continues use;



2)  battery can be recharged separately

Viewing options

1)I-Scan® Video Goggles



2) television or computer LED/LCD/CRT monitor



3)LCD can turn off when using I-Scan® Goggles,so that make sure FarmScan® L60 working up to 360 mintues

Monitor

5.8'' inches,TFT color LCD

Standard Probe

6.5 Mhz Linear Recall Probe(Multi-frequncy:5.5,6.5,7.5Mhz)

Optional Probes

1)3.5Mhz convex probe(Multi-frequncy:2.5,3.5,5.0Mhz)



2)6.5Mhz HF Linear probe(Multi-frequncy:6.5,7.5,8.5 Mhz)



3)5.0Mhz Micro-convex probe(Multi-frequncy:4.5,5.0,5.5Mhz)

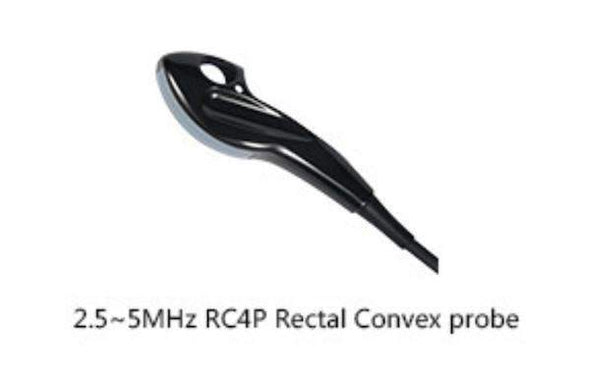

4)Rectal Convex probe

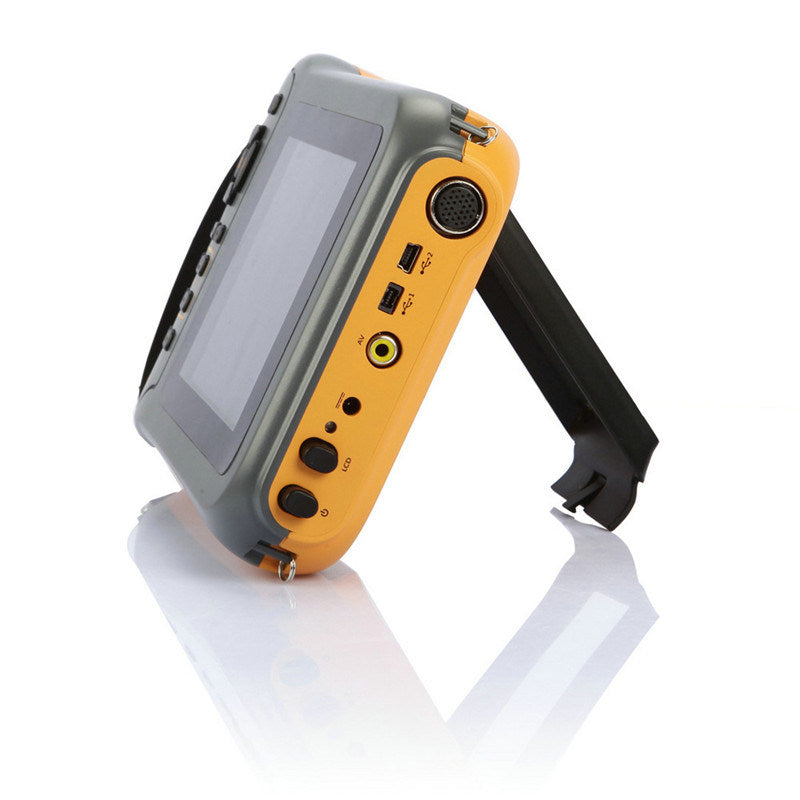

TV outport

Yes,Video PALD,NTSC for video recorder and ultrasound working station

Display Depth

≥220mm, mulit-steps
