Lightweight Black & White Ultrasound for Mixed Practice
Demo model was used for a couple of hours only for photography.
The iuStar100Vet BW is a lightweight, hand-carried black and white scanner ideal for work with small animals, equine or mixed practice. The only portable system in the globe that can connect 3 probes at one time. It offers advanced UniView (speckle reduction) and UniCT (spatial compounding) in the standard configuration. The 15 inch screen can be angled up or down, which is particularly useful when scanning at different heights.
Standard Features
- Tissue Harmonic Imaging & Pulse Inversion Harmonic Imaging
- TSI (Tissue Specific Imaging)
- B ,M, 2B, B/M, 4B Modes
-
UniCTTM (Spatial Compound Imaging)
-
UniViewTM (Adaptive Speckle Reduction)
-
iuScanTM (Auto Optimization)
- Zoom
- Expand Mode
- 3 active probe ports
- 32GB hard drive
- 2 USB ports
- Biopsy Guide
Optional features
Physical Specifications
- Dimension and weight
- Height: 90mm
- Width: 360mm
- Depth: 360mm
- Weight: Approx. 10lbs (no peripherals)
- Monitor
- 15-inch high resolution LED monitor
- Resolution: 1024 × 768
- Audio Speakers
- Probe Ports and Holders
- Probe ports: 3 active ports
- Probe holders: 3 probe holders
- Electrical Power
- Voltage: 100 - 240V
- Frequency: 50/60 Hz
- Power consumption: Approx. 100VA
- Circuit breaker: 100 – 240V ~, 2.2A
- Built-in Lithium battery (optional)
- Operating Environment
- Ambient temperature: 5 – 40 °C
- Relative humidity: 35% – 75% (no condensation)
- Atmospheric pressure: 700hPa – 1060hPa
- Storage & Transportation Environment
- Ambient temperature: -5 – 40 °C
- Relative humidity: 20% – 80% (no condensation)
- Atmospheric pressure: 700hPa – 1060hPa
User Interface
- Control Panel
- User-centric control panel
- Backlit keys ensure accurate work in the dark room
- 8-segment TGC control
- Full-sized, QWERTY keyboard for text input, function keys, and system programming
- System Boot-up
- Boot-up from complete shut-down in less than 50 sec
- Shut-down in less than 3 sec
- Comments
- Supports text input and arrow
- Adjustable text size
- Body Marks
- More than 110 body marks for versatile application
Screen Information
- Common info:
- United Imaging logo
- Hospital name,
- Exam date
- Exam time
- Thermal and Mechanical Acoustic Output Indices
- Gender, Age, ID, Name
- Focus position
- Thumbnail
- Imaging parameters
Imaging Parameters
- Overview
- Digital Broadband beamforming
- 16 channels
- Image depth up to 31 cm (exam and transducer specific)
- B-mode
- Depth 31cm
- Zoom Freeze status or real-time
- TGC 8-segment TGC control
- Dynamic range 30-120
- Gain
- Persistence 4 levels (exam and transducer specific)
- L/R flip and U/D flip
- Gray Map 6 levels (exam and transducer specific)
- Frequency
- Colorize map
- Acoustic Output Indices
-
UniviewTM: Adaptive Speckle Reduction
-
iuScanTM: Auto Optimization
-
UniCTTM: Spatial compound imaging
- Focus number: Adjustable
- Focus position: Adjustable
- Focus spacing: Adjustable
- Display formats: B, 2B, 4B
- TSI: General/Fat/Fluid/Muscle
- Pulse Inversion THI
- Available on all types of transducer
- Utilizing pulse inversion technologies to enhance high-resolution harmonic signals, iuStar100BW provides increased contrast and axial resolution, clearer boundaries and better visualization of structures
- M-Mode
- Display formats: Adjustable
- Dynamic range
- Gain
- M sweep speed
- Colorize map
- Gray Map
- Time mark
- L/R flip and U/D flip
- M soften
- Thumbnail Image Display
- Support Save, Send to USB
- Image/Cine Review
- Available in all modes
- Cineloop image review 340 frame
- Frame by frame manual cine loop review or auto playback with variable speed
- Imaging Post Processing:
- B-mode: Gray map, Colorize map, L/R U/D flip, Zoom
- M-mode: Gray map, Colorize map
Measurement/Analysis & Report
- 2D-Mode
- Distance
- Trace Length
- Ratio (D)
- Area
- Volume
- M-Mode
- Distance
- Time
- Slope
- Heart Rate
- Clinical Option Measurement Package
- Abdomen
- Obstetric
- Gynecology
- Cardiac
- Small parts
- Report
- Specific report template to the application
- Editable value in report
- Images are selectable
Exam Storage & Management
- Exam Storage
- 32GB hard drive
- Support connecting external storage
- Direct digital storage of single frame and cine 2D
- Exam Management
- Center workstation dedicated for patient exam management
- Patient exam query/retrieve
- Support review of current and past exam
- New exam
- Active exam
- End exam
- Export images as JPG/AVI format
- Support backup/send to USB devices
- Connectivity
- Ethernet Network Connection
- USB, serial data output (need a converter cable)
- DICOM 3.0 basic
Transducers
- Linear (L40): L11-4Ds
- Applications: Vascular, Small parts, Musculoskeletal, Carotid, Nerve, Orthopedic
- Number of Elements: 80
- Center Frequency: 7.5MHz
- Working Frequencies: 5 – 10MHz
- Convex (R60): C5-2Ds
- Applications: Abdomen, Obstetrics, Gynecology, Kidney, Urology
- Number of Elements: 80
- Center Frequency: 3.5MHz
- Working Frequencies: 2 – 5MHz
- Endocavity (R13): E10-4Cs
- Applications: Gynecology, Obstetrics, Urology
- Number of Elements: 80
- Center Frequency: 6.5MHz
- Working Frequencies: 5 – 9MHz

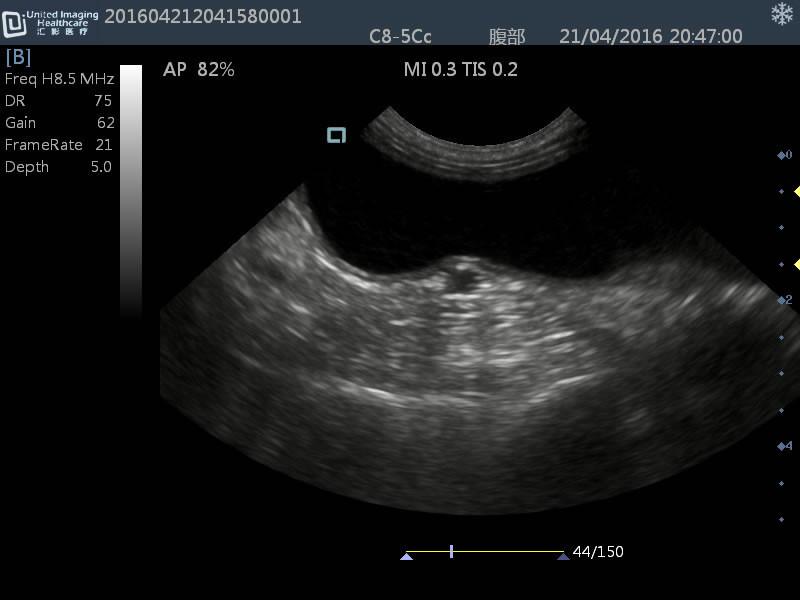

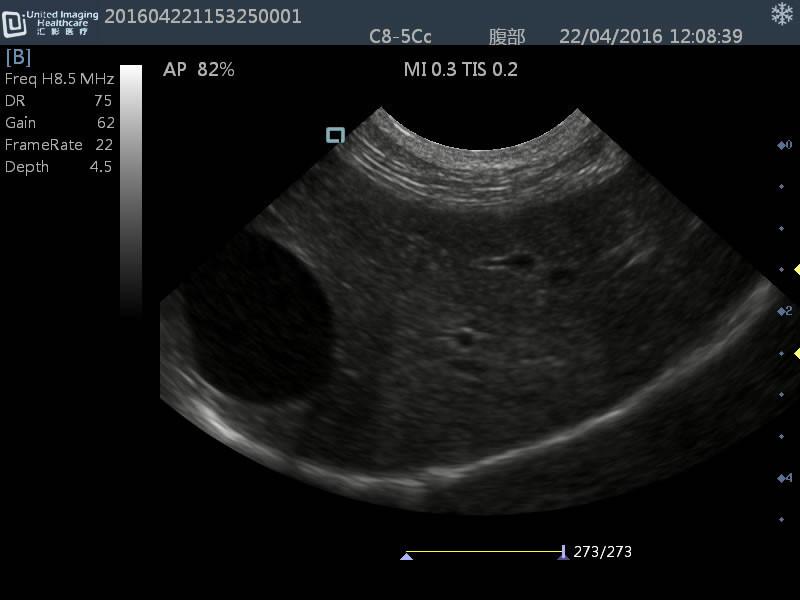

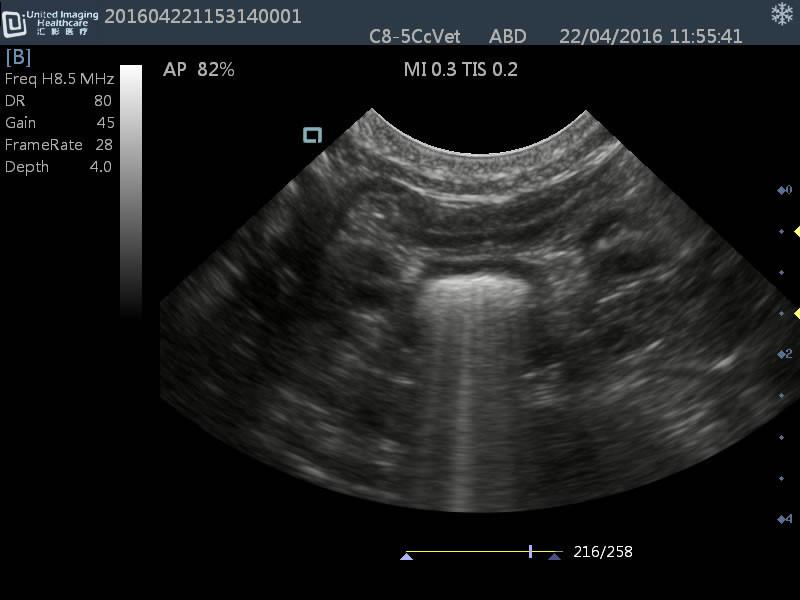

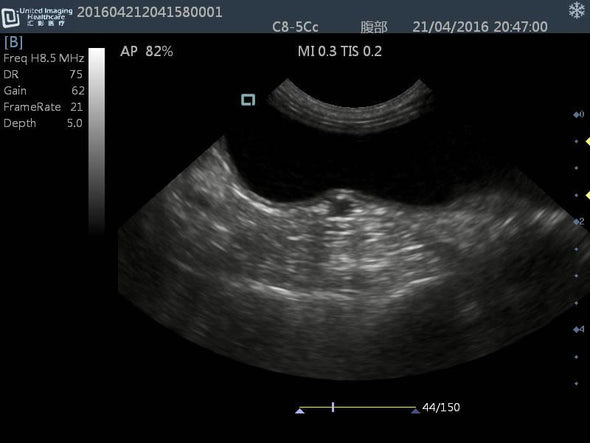

- Micro-convex (R15): C8-5Cc
-
Applications: General small abdomen and cardiac, Equine musculoskeletal and abdomen
- Number of Elements: 80
- Center Frequency: 6.5MHz
- Working Frequencies: 5 – 9MHz
- Micro-convex (R20): C7-4Cc
- Applications: Medium and large dog abdominal
- Number of Elements: 80
- Center Frequency: 5.0MHz
- Working Frequencies: 3 – 7MHz
- Linear (L40): L11-4Fc
-
Applications: Equine and bovine reproduction, Equine musculoskeletal, Fish-sexing, egg determination
- Number of Elements: 80
- Center Frequency: 7.5MHz
- Working Frequencies: 5 – 10MHz
- Linear (L70) L7-4Dc
- Applications: Equine and bovine reproduction, Equine musculoskeletal, Fish-sexing, egg determination
- Number of Elements: 80
- Center Frequency: 5.0MHz
- Working Frequencies: 3 – 7MHz
Peripheral Devices & Accessories (Optional)
- Black/white digital video printer
- SONY UP-D897, MITSUBISHI P93DC
- Black/white analog video printer
- SONY UP-897MD, MITSUBISHI P93W-Z
- Graph/text printer
- HP Laserjet M1005; HP Laserjet P2035; HP Laserjet P1102
- HP Laserjet P1102w; HP Laserjet P1108
- HP Laserjet 1536dnf MFP
- HP Deskjet 2050; HP Deskjet D2568; HP Deskjet 1050 J410
- HP Deskjet 2520hc
- Built-in DVR
- Built-in digital video recorder, save space and is a useful tool for education and memory
- Max storage length each time: 30 minutes
System Inputs and Outputs
- Video/Audio output
- VGA out
- S-video out (optional)
- Other input/output
