Demo model was working few hours. Full warranty 2 years.

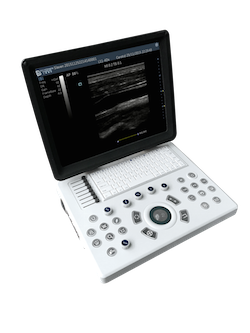

The iuStar100Vet BW is a lightweight, hand-carried black and white scanner ideal for a small animal, equine or mixed practice. The only portable system in the globe can connect 3 probes at a time. It offers advanced UniView(speckle reduction)and UniCT(spatial compounding) in standard configuration. The screen on the system is 15inch and can be angled up or down, this is a really useful function when scanning at different heights.
System Overview
Application: Abdomen, Obstetrics, Gynecology, Cardiology, Small parts, Urology, Vascular, Pediatrics, Nerve, Others
Transducer types
Curved array transducer
Linear array transducer
Imaging modes
B-Mode
(Tissue Harmonic Imaging & Pulse Inversion Harmonic Imaging)
M-Mode
TSI (Tissue Specific Imaging)
Standard features
B-Mode
(Tissue Harmonic Imaging & Pulse Inversion Harmonic Imaging)
M-Mode
TSI (Tissue Specific Imaging)
B,M,2B,B/M,4B
UniCTTM(Spatial Compound Imaging)
UniViewTM(Adaptive Speckle Reduction)
iuScanTM (Auto Optimization)
Zoom
Expand Mode
2 active probe ports
32GB hard drive
2 USB ports
Biopsy Guide
Optional features
DICOM
Video & PC printer
Physical Specification
Dimension and weight
Height: 90mm
Width: 360mm
Depth: 360mm
Weight: Approx.4.5kg (no peripherals)
Monitor
15-inch high resolution LED monitor
Resolution: 1024 ×768
Audio speakers
Stereo audio speakers
Probe port and holder
Probe ports: 3 active ports
Probe holder: 3 probe holder
Electrical Power
Voltage: 100 - 240V~
Frequency: 50/60 Hz
Power consumption: Approx. 100VA
Circuit breaker: 100 – 240V ~, 2.2A
Built-in Lithium battery (optional)
Operating Environment
Ambient temperature: 5 – 40 °C
Relative humidity: 35% – 75% (no condensation)
Atmospheric pressure: 700hPa – 1060hPa
Storage & Transportation Environment
Ambient temperature: -5 – 40 °C
Relative humidity: 20% – 80% (no condensation)
Atmospheric pressure: 700hPa – 1060hPa
User Interface
Control panel
User-centric control panel
Backlit keys ensure accurate work in the dark room
8-segment TGC control
Full-sized, QWERTY keyboard for text input, function keys and system programming
System boot-up
Boot-up from complete shut-down in less than 50 sec
Shut-down in less than 3 sec
Comments
Supports text input and arrow
Adjustable text size
Body mark
More than 110 body marks for versatile application
Screen information
Common info:
United Imaging logo
Hospital name,
Exam date
Exam time
Thermal and Mechanical Acoustic Output Indices
Gender, Age, ID, Name
Focus position
Thumbnail
Imaging parameters
Imaging Parameters
Overview
Digital Broadband beamforming
16 channels
Image depth up to 31 cm (exam and transducer specific)
B-mode
Depth 31cm
Zoom Freeze status or real time
TGC 8-segment TGC control
Dynamic range 30-120
Gain
Persistence 4 levels (exam and transducer specific)
L/R flip and U/D flip
Gray Map 6 levels (exam and transducer specific)
Frequency
Colorize map
Acoustic Output Indices
UniviewTM : Adaptive Speckle Reduction
iuScanTM : Auto Optimization
UniCTTM: Spatial compound imaging
Focus number: Adjustable
Focus position: Adjustable
Focus spacing: Adjustable
Display formats: B, 2B, 4B
TSI: General/Fat/Fluid/Muscle
Pulse Inversion THI
Available on all types of transducer
Utilizing pulse inversion technologies to enhance high-resolution harmonic signals, iuStar100BW provides increased contrast and axial resolution, clearer boundaries and better visualization of structures
M-mode
Display formats: Adjustable
Dynamic range
Gain
M sweep speed
Colorize map
Gray Map
Time mark
L/R flip and U/D flip
M soften
Thumbnail Image Display
Support Save, Send to USB
Image/cine review
Available in all modes
Cineloop image review 340 frame
Frame by frame manual cine loop review or auto playback with variable speed
Imaging Post processing:
B-mode: Gray map, Colorize map, L/R U/D flip, Zoom
M-mode: Gray map, Colorize map
Measurement/Analysis and Report
Generic measurements
2D-mode
Distance
Trace Length
Ratio (D)
Area:
Volume:
M-mode
Distance
Time
Slope
Heart Rate
Clinical option measurement package
Abdomen, obstetric, gynecology, cardiac, small parts
Report
Specific report template to the application
Editable value in report
Images are selectable
Exam Storage and Management
Exam storage
32GB hard drive
Support connecting external storage
Direct digital storage of single frame and cine 2D
Exam management
iCentre workstation dedicated for patient exam management
Patient exam query/retrieve
Support review of current and past exam
New exam, Active exam
End exam
Export images as JPG/AVI format
Support backup/send to USB devices
Connectivity
Ethernet Network Connection
USB, serial data output (need a converter cable)
DICOM 3.0 basic
Transducers

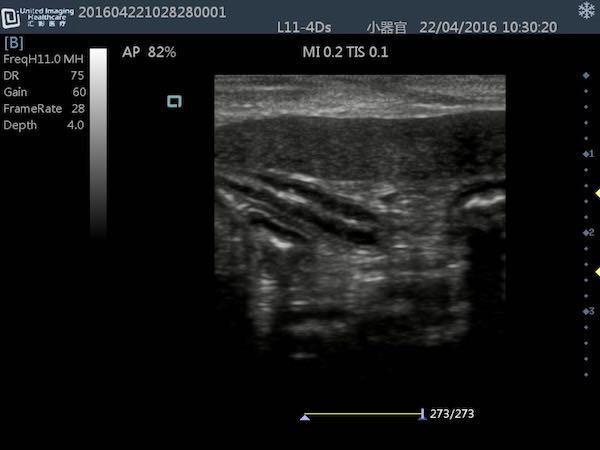

Linear(L40): L11-4Ds
Application: Vascular, Small parts, Muscleskeletal, Carotid, Nerve, Orthopedic
Number of element: 80
Center frequency: 7.5MHz
Working frequencies: 5 – 10MHz
Convex(R60): C5-2Ds
Application: Abdomen, Obstetrics, Gynecology, Kidney, Urology
Number of element: 80
Center frequency: 3.5MHz
Working frequencies: 2 – 5MHz
Endocavity(R13): E10-4Cs
Application: Gynecology, Obstetrics, Urology
Number of element: 80
Center frequency: 6.5MHz
Working frequencies: 5 – 9MHz

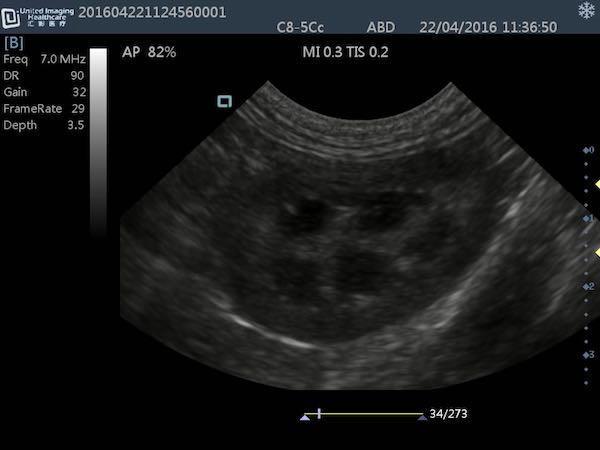

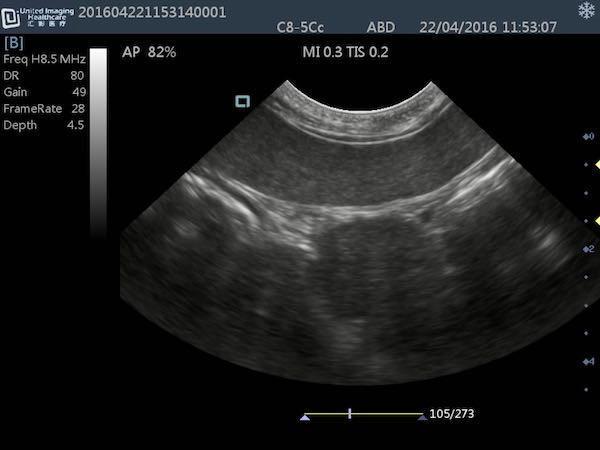

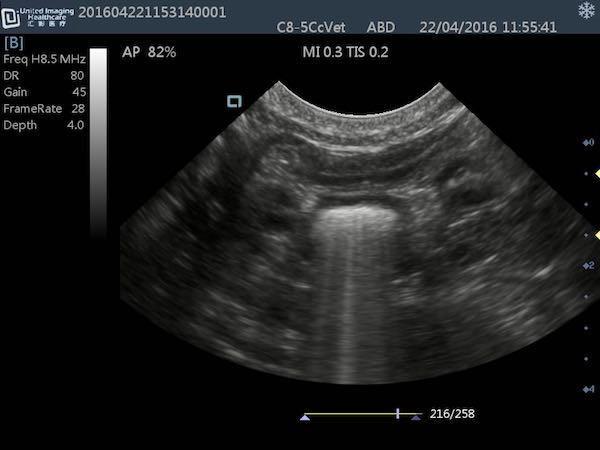

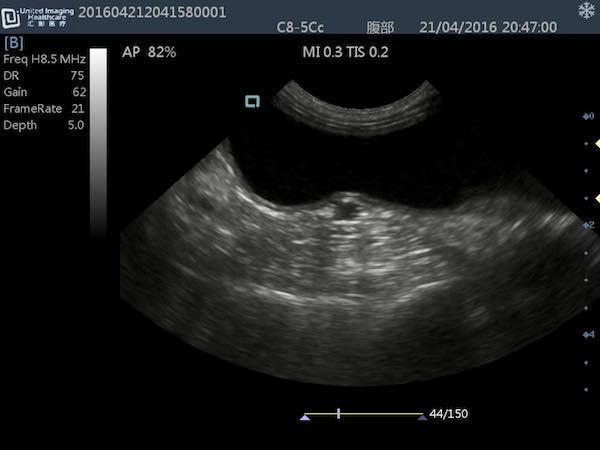

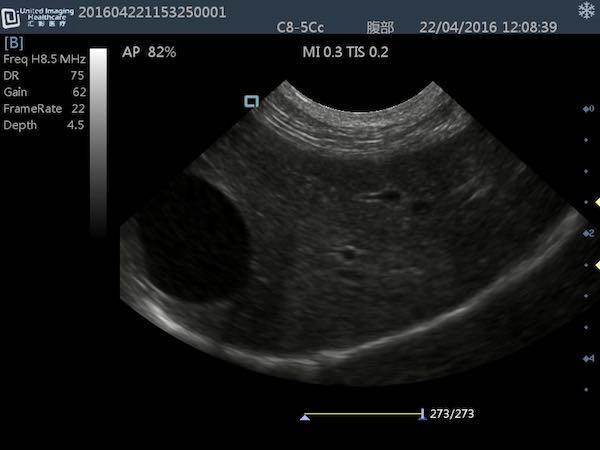

Micro-convex(R15): C8-5Cc
Application: General small abdomen and cardiac
Equine musculoskeletal and abdomens
Number of element: 80
Center frequency: 6.5MHz
Working frequencies: 5 – 9MHz
Micro-convex(R20): C7-4Cc
Application: Medium large dog abdominal
Number of element: 80
Center frequency: 5.0MHz
Working frequencies: 3 – 7MHz
Linear(L40): L11-4Fc
Application: Equine and bovine reproduction, Equine musculoskeletal, Fish-sexing, egg determination
Number of element: 80
Center frequency: 7.5MHz
Working frequencies: 5 – 10MHz
Linear(L70) L7-4Dc
Application: Equine and bovine reproduction, Equine musculoskeletal, Fish-sexing, egg determination
Number of element: 80
Center frequency: 5.0MHz
Working frequencies: 3 – 7MHz
Peripheral Devices and Accessories (Option)
Black/white digital video printer
SONY UP-D897, MITSUBISHI P93DC
Black/white analog video printer
SONY UP-897MD, MITSUBISHI P93W-Z
Graph/text printer
HP Laserjet M1005; HP Laserjet P2035; HP Laserjet P1102
HP Laserjet P1102w; HP Laserjet P1108
HP Laser Jet 1536dnf MFP
HP Deskjet 2050; HP Deskjet D2568; HP Deskjet 1050 J410
HP Deskjet 2520hc
Built-in DVR
Built-in digital video recorder, save space and is a useful tool for education and memory
Max storage length each time: 30 min
System Inputs and Outputs
Video/Audio output
VGA out
S-video out (optional)
Other input/output
USB
Ethernet
