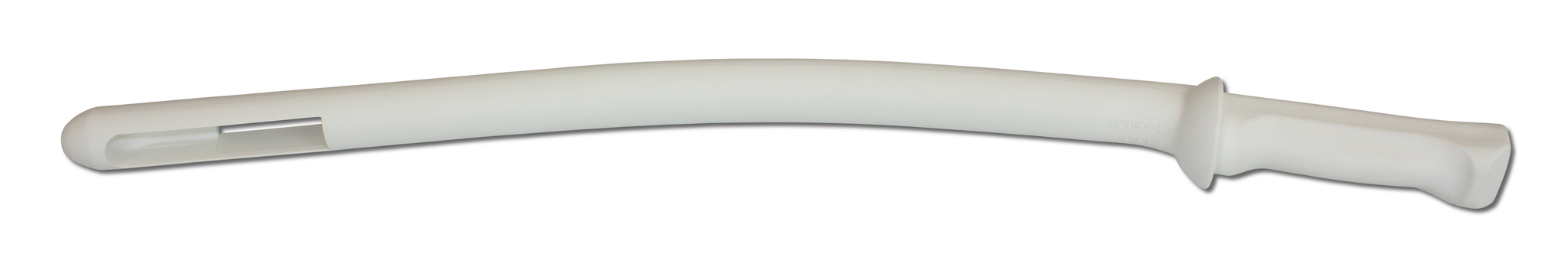

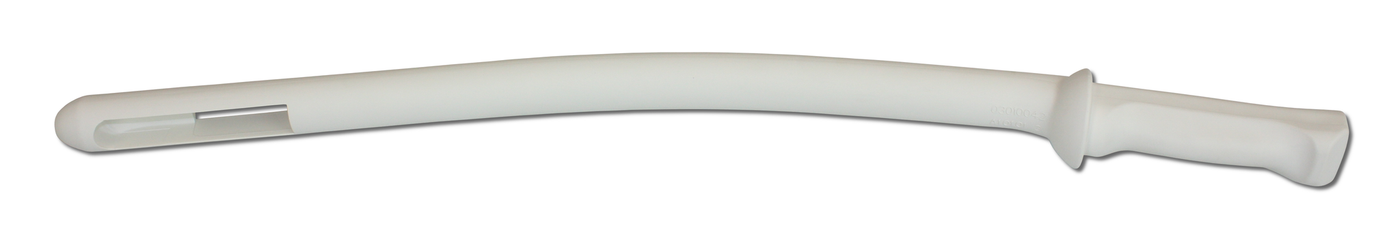

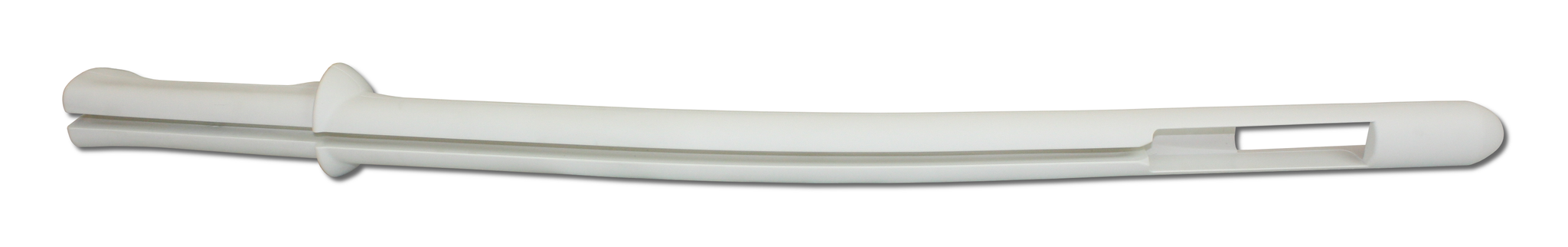

KX5200V & Rectal Insertion Arm

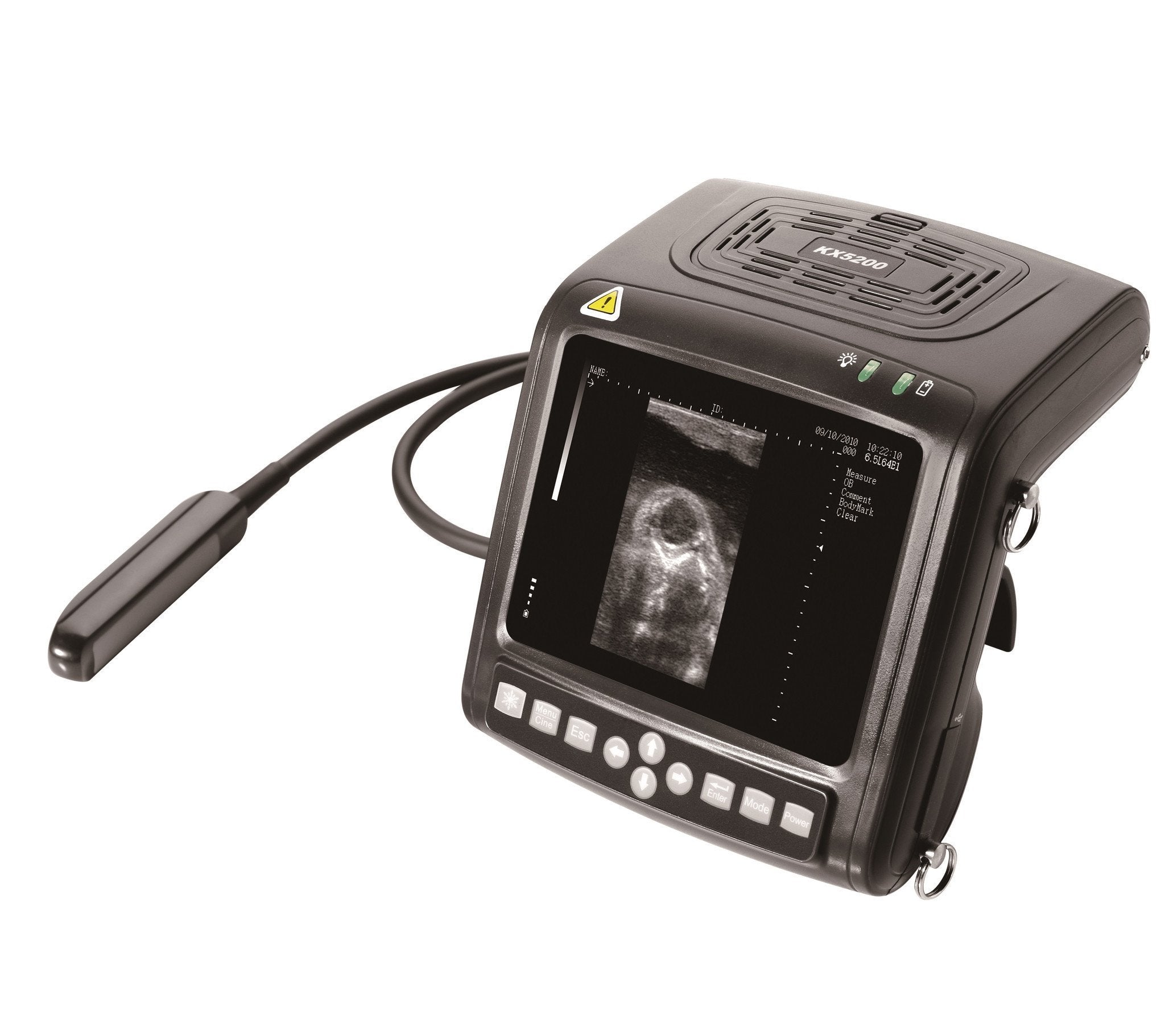

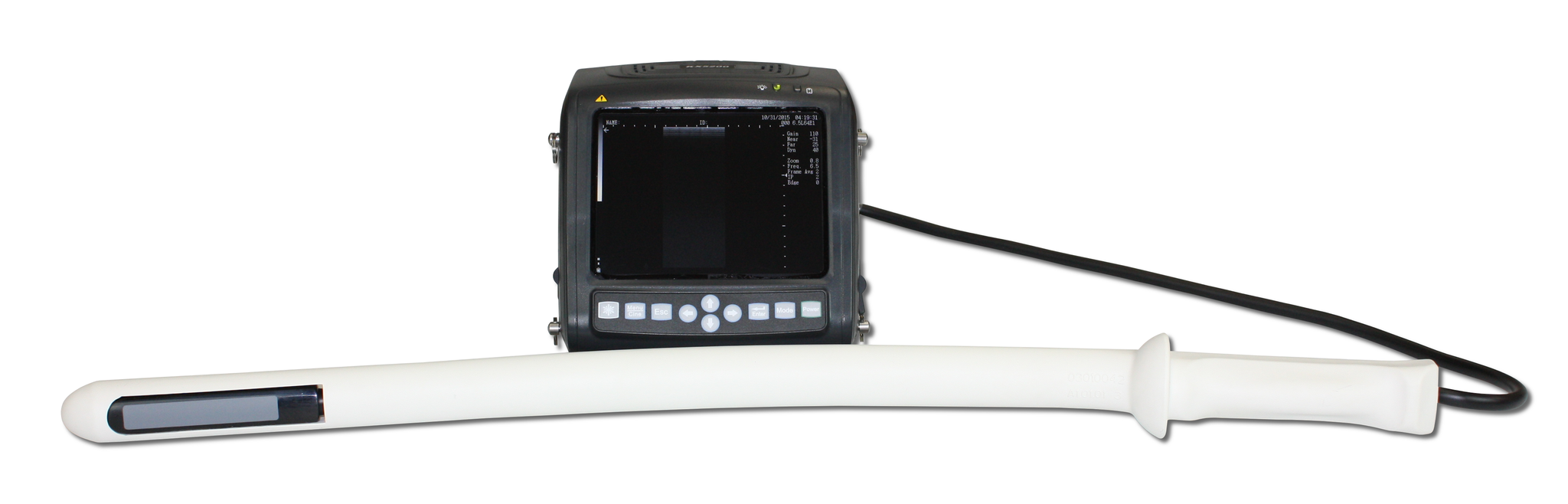

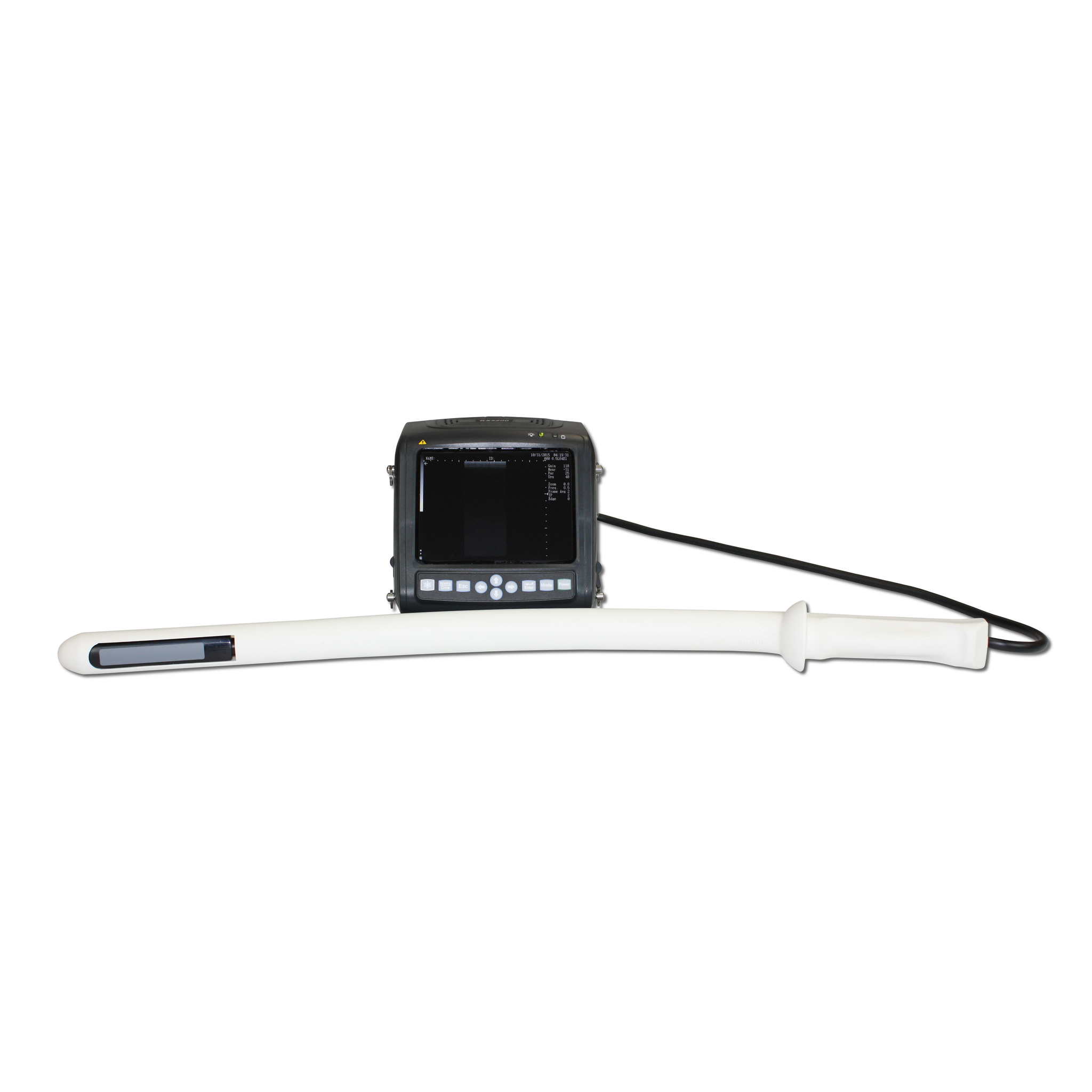

Demo Digital Veterinary Wrist Ultrasound Scanner with Rectal Insertion Arm

This machine was a demo unit briefly for less than an hour.  Comes with a full 2 year warranty, choice of probe, like new. A convenient wrist design, with multiple patents in one, smart and light, great for carrying, makes examining easier.

A smart design that includes an internal battery makes the diagnosis easy, and brings you a new mobile experience. Includes professional measuring software for veterinary use. High speed USB port supports USB flash disk and optional mouse.  USB port also supports image transfer to PC.

Features

  • Two large capacity lithium batteries, about 360 minutes work time
  • 8 kinds of internal pseudo color display
  • 5.7" high resolution color TFT LCD monitor
  • Small and light at 1.1Kg

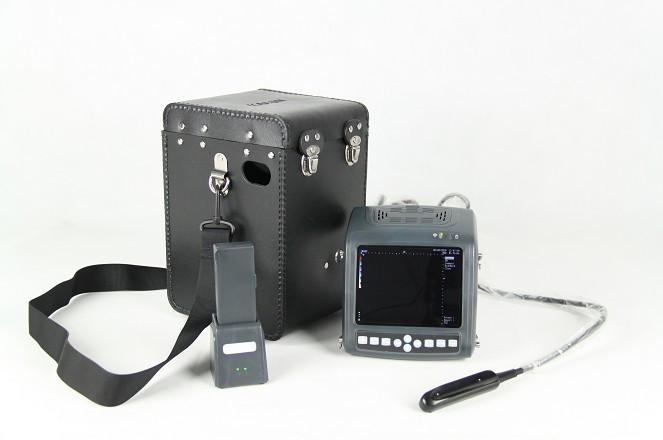

  • Backpack integration design, convenient for veterinary and farm use
  • Splash and dust proof function that is easy to clean

Common measurement: distance, circumference, area, volume, etc.

OB measurement: Bovine, Ovine, Canine, Feline, Goat, Llama, gestational weeks and expected date.

Cardio measurement: depth, slope, heart rate, cycle.

Obstetric measurement and analysis: 15 kinds of obstetric tables, several GA measurement and OB report.

Specifications

  • Dual-mode TV output:PAL/NTSC, connecting to video recorder and ultrasonic working station.
  • Optional mouse to operate easier.
  • Freeze or unfreeze image by shutter release.
  • Menu operation language: Chinese/English.
  • Single probe socket, automatically identify the probe, support several optional probes.
  • Body mark: 64 body marks with probe position.
    • Display mode:B,2B,4B,B/M,M, total 5 kinds.
    • 8 kinds of Magnification, maximum display depth is 240mm.
    • Gain range: 0-127dB.
    • Dynamic range: 27-90dB.
    • Gray: 256.
    • Intelligent TGC control: near-field and far-field adjustment.
    • Adjustable and intelligent focus.
    • Frame frequency:30 frames/second.
    • Permanent image storage: 100 frames.
    • Cine loop:256 frames.
  • Puncture guiding function(2 guiding lines, angle and position adjustable)

Unit

  • Adapter rating: 100-240V~,50-60Hz,70VA. Output of adapter: DC12V 3.0A. Maom device rating:DC12V 3.0A.
  • Dual power supply: Power:AC110/230V -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.
  • Battery: high-capacity lithium Battery(2400mAh), more than 200 minutes work.
  • Net weight: 1.1kg.
  • Main unit size: 155x180x80mm(length x width x thickness)
