(Included One Probe of Choice: Please specify in checkout.)

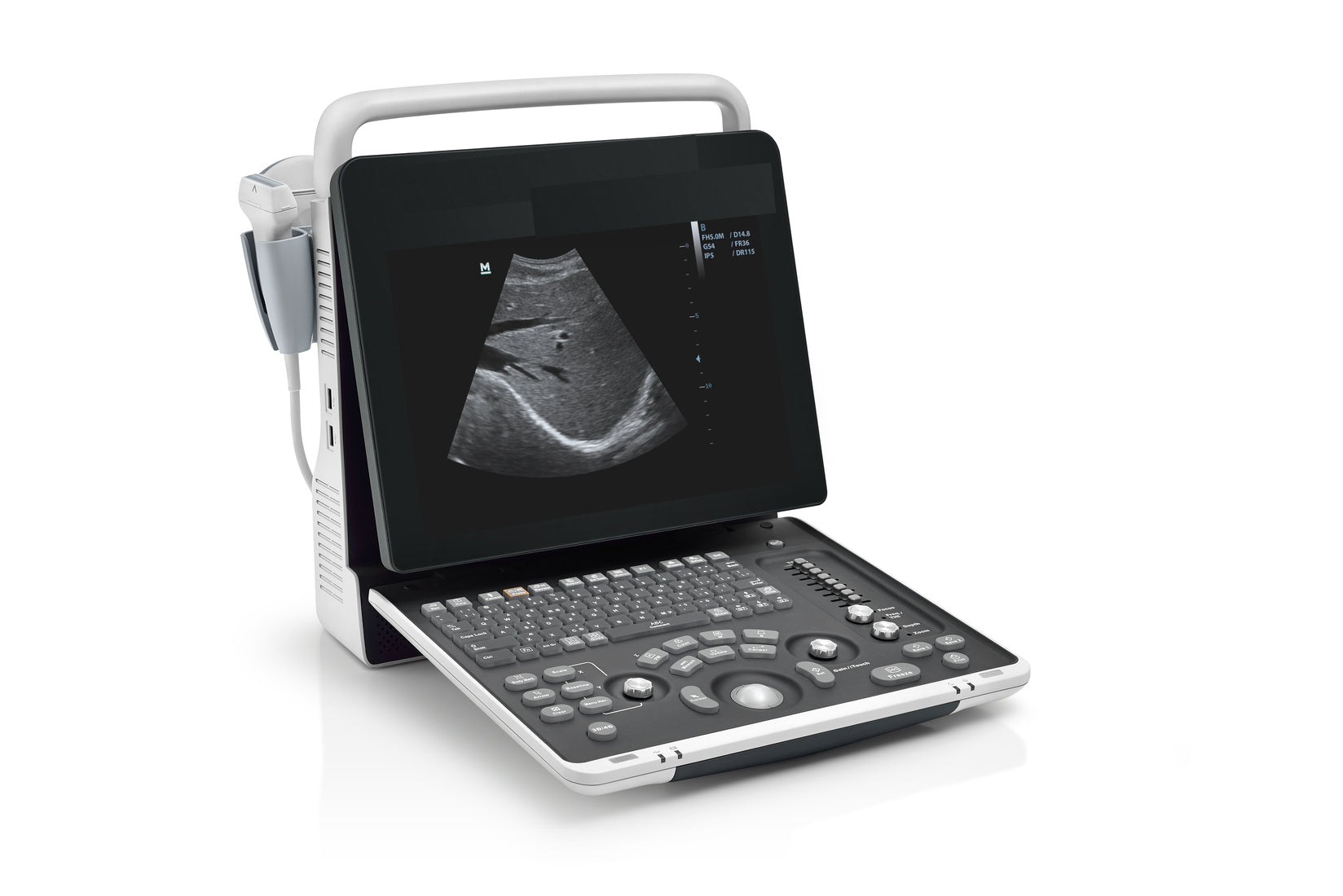

With comprehensive configurations and an integrated design, NEW KDP-50Vet is the outcome of Mindray’s contin- uous and determined efforts towards making veterinary healthcare more efficient, effective and accessible for all. The KDP-50Vet, a premium Black & White ultrasound system, offers more than your expectation. With a smart new shape and full screen, enhanced mobility and more convenient operations, this reliable and affordable system will enhance general practices and is well-suited for multiple veterinary clinical needs.
Enhanced Veterinary Diagnostic Confidence
- Power Doppler: Identify blood flow under various veterinary clinical settings
- PW Doppler and Auto Trace: Reveal details of blood flow for more comprehensive diagnosis
- Veterinary Applications: Measurement, Comment, Report and Body mark designed for canines, felines, equines, bovines, ovines and more
Mobile Design for Veterinary Daily Use
- Sleek, streamlined, and compact shape
- 60 degree tilting angle adjustable monitor
- 2 universal transducer connectors
- 500GB hard disk for large patient data storage
- 1.5h scanning with rechargeable battery
- Slim trolley for easy mobility
- Convenient hand-carried bag for easy transportation
Dedicated Veterinary Workflow
-
iTouchTM : Quick image optimization in one touch
-
iZoomTM : Instant full screen image expansion with one button
-
iStorageTM: Directly transfer images and reports to PC via network cable
-
User-defined keys: programmable personalized operations tailored for veterinarian
Performance
PSHTM(Phase Shift Harmonic Imaging)
Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise.
iBeamTM
Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization .
iClearTM
Gain improved image quality based on auto structure detection
· Sharper & Continuous Edges
· Smooth Uniform Tissues
· Cleaner ‘no echo areas’
iScapeTM
Get a complete and extended view of the anatomical structure through panoramic imaging coupled with velocity indication and forward/backward scan ability making scanning much easier, smoother and more controllable.
ExFOV
Discover better diagnostic information through extended view of the anatomical structure on all convex probes.
Trapezoid Imaging
Discover better diagnostic information through extended view of the anatomical structure on all linear probes .
B-SteerTM
Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.
Free Xros MTM
Gain precise anatomical observation by freely placing sample lines at any angle. Attain better images through simultaneous display of up to 3 sample lines.
IMT (Intima-Media Thickness)
Auto measurement of anterior and posterior wall thickness providing accurate carotid status.

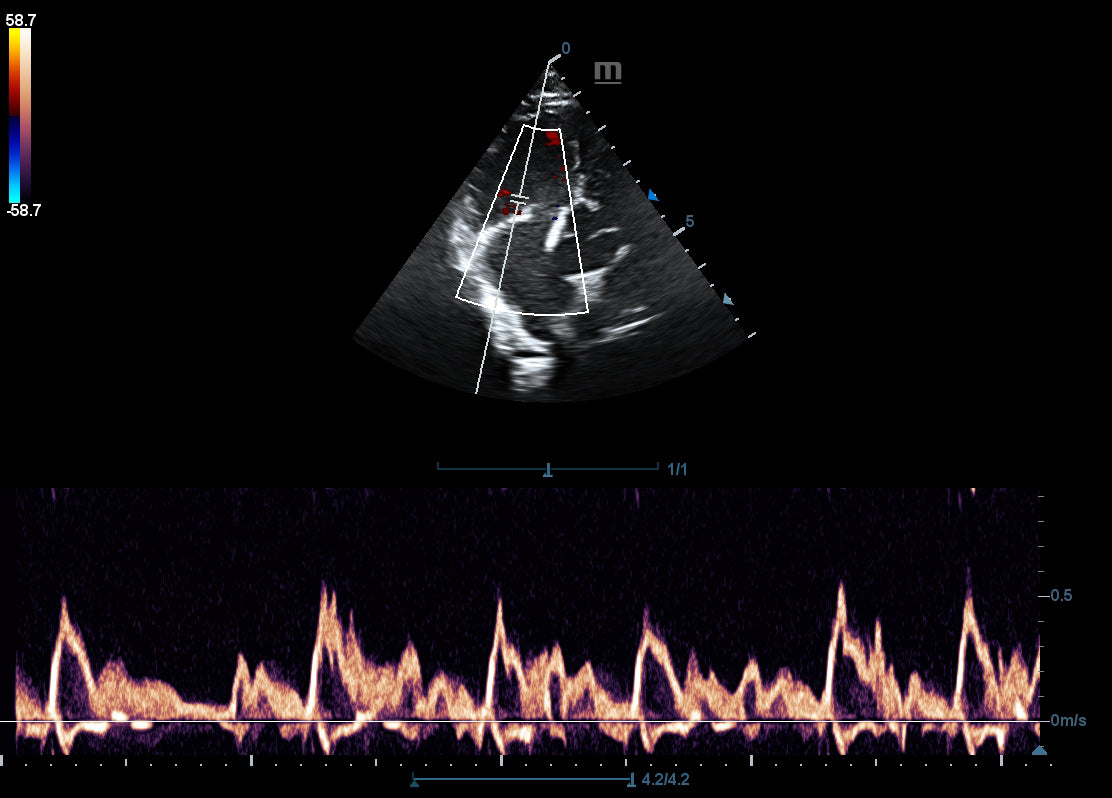

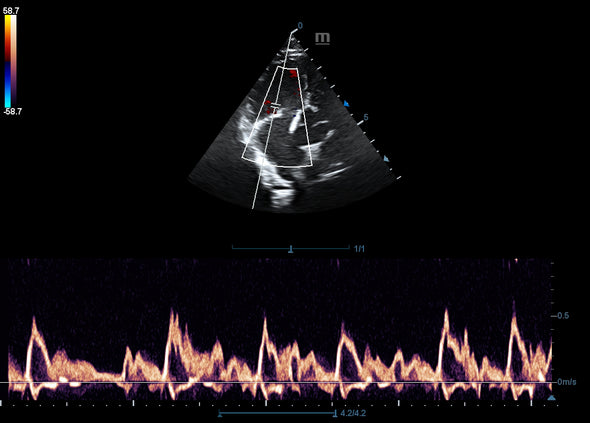

PW
PW Doppler and Auto Trace reveal details of blood flow for more comprehensive diagnosis.
Transducer Options:
Micro –convex
Convex
Endocavity
-
75L50EAV
Center Frequency: 7.5MHz
-
50L60EAV
Center Frequency: 5MHz
-
65EL60EA
Center Frequency: 6.5MHz
-
65EC10ED
Center Frequency: 6.5MHz
Linear
-
75L38EA
Center Frequency: 7.5MHz
-
75L53EA
Center Frequency: 7.5MHz
-
10L24EA
Center Frequency: 10MHz
Intra-operative
Bi-plane (Convex & Convex)
