Fully Digital B Mode Kaixin Ultrasound

KX2600V is high frequency 5.0-8.0Mhz ultrasound scanner by Kaixin. Excellent for small animals sonography at veterinarian hospital and clinics.  The machine has two probe connectors allowing you to connect two transducers at the same time.


  • One Probe

  • Two year warranty


  • Menu operation, support 5 customized languages: English, Spanish, Russian, French, Portuguese.
  • OB measurement: EDD and GA for bovine, equine, ovine, canine, feline, goat, swine and llama.
  • Automatically calculate back fat and lean percentage of swine

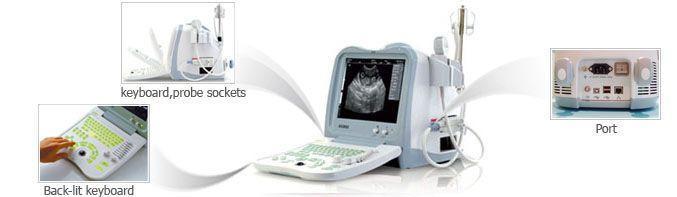

  • Back-lit silica gel keyboard, photoelectric trackball and encoder, easy to operate
  • 28 grades depth adjustment under full visual field, maximum display depth is 245mm
  • 100 frames permanent storage, 256 frames cine loop
  • Two USB ports, supports large capacity U disk (supports document management/software upgrades/one-key storage)
  • Print various images and reports directly from laser printer
  • DICOM 3.0 network port, easily realizes network transmission function


  • Adopt ARM9 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
  • 10" high resolution CRT display, progressive scanning without sparkle.
  • Double probe sockets, automatically identify the probe, support several optional probes.
  • Body mark: 1.general 2.bovine 3.canine 4.equine 5.feline 6.cadioloy - 7 kinds, total 22 body marks with probe position.
  • Display mode: B, 2B, 4B, B/M, M, total 5 kinds.
  • 28 grades depth adjustment, maximum display depth is 245mm.
  • Gain range: 0~ 127dB.
  • Dynamic range: 27~ 90dB.
  • Gray: 256.
  • Intelligent TGC control: 8 segments.
  • Frame frequency: 30 frames/second.
  • Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss of image when power off.
  • Cine loop: 256 frames.
  • Puncture guiding function ( 2 guiding lines, angle and position adjustable )
  • General measurement: distance, perimeter, area (trace method, ellipse method), volume, etc.
  • Cardiac measurements: depth, slope, heart rate, time.
  • OB measurement: EDD and GA for swine, bovine, equine, ovine, canine, feline, goat and llama.
  • Other measurement: Lean meat percentage of swine.
  • OB report function.
  • Dual-mode TV output: PAL/NTSC, connecting to video recorder and ultrasonic working station.
  • DICOM 3.0 network port, realizing network transmission easily.
  • Power supply: AC110/230V -15%~+10%(self-adaptation supply voltage)60/50Hz±1Hz.
  • Net weight: 10kg.
  • Main unit size: 400x280x325mm (length x width x height)

Standard configuration

  • Main unit: 1 pc.
  • 10" high resolution CRT monitor: 1 pc.
  • Double probe sockets, automatically identify probe.
  • 6.5MHz linear rectal probe: 1 pc

Optional Probe/ configuration

  • 6.5MHz multi-frequency micro-convex probe
  • 3.5MHz multi-frequency convex probe
  • 7.5MHz multi-frequency linear probe
  • 6.5MHz multi-frequency trans-vaginal probe
  • 4.0MHz multi-frequency convex rectal Probe
  • 5.0MHz multi-frequency micro-convex probe
  • Trolley
  • Video recorder(P93W-S)
  • Laser printer (Specified models: HP Laser Jet 1020, HP Laser Jet 1022, HP Laser Jet P1007, HP Laser Jet P1008)
