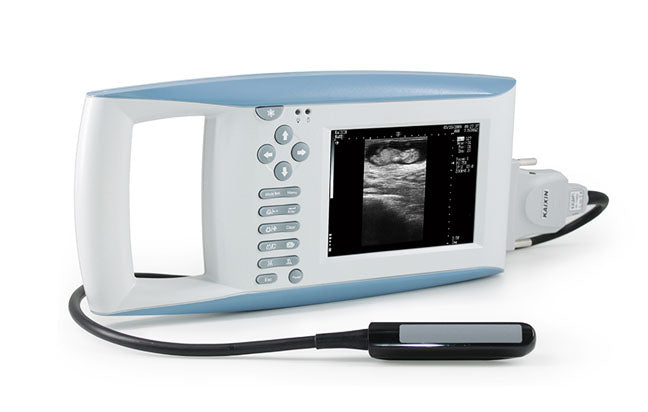

KX5100V

A Full Digital B Mode Ultrasonic Diagnostic Instrument

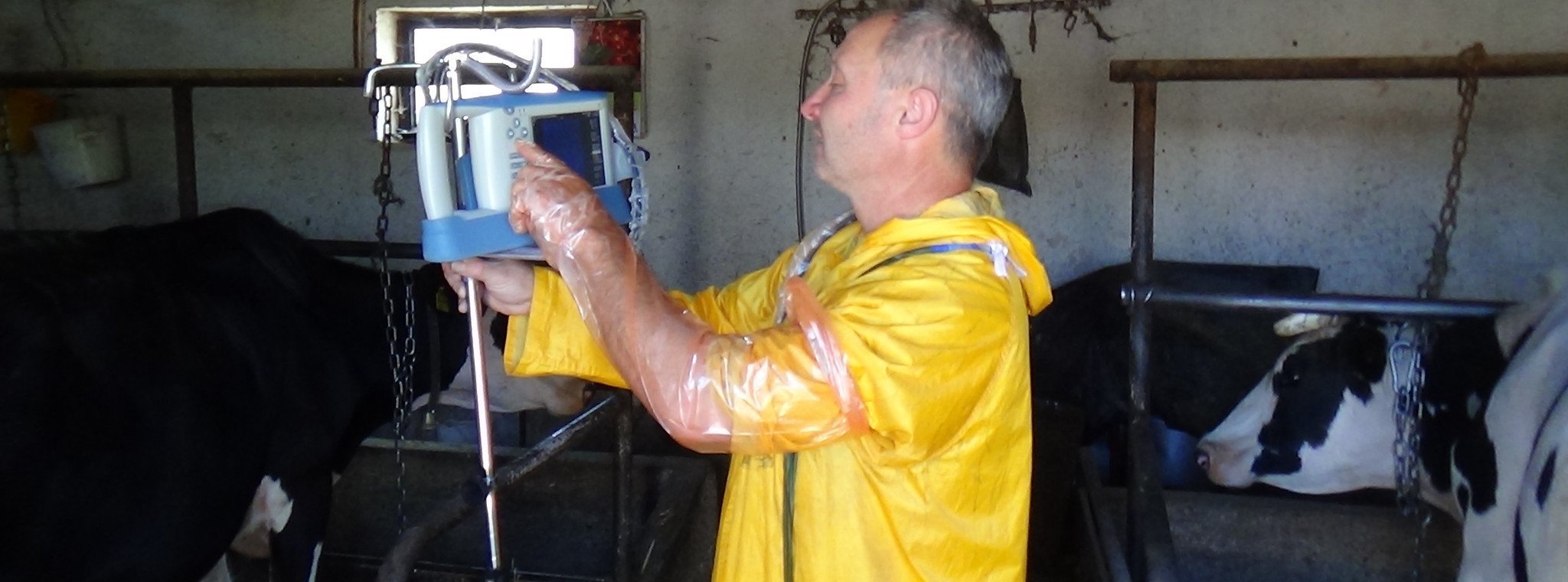

KX5100V palm ultrasound scanner is a full B Mode, B, B/B, B/M, M, 4B, veterinary diagnostic instrument.  KX5100V vet application for pregnancy, fertility and diseases on bovine, equine, ovine, swine, canine, feline, goat, llama. Battery powered and light at only 3 pounds makes for easy mobility. Full two year warranty with KeeboMed Inc.

Standard Configuration

  • Main Unit 1 pc.

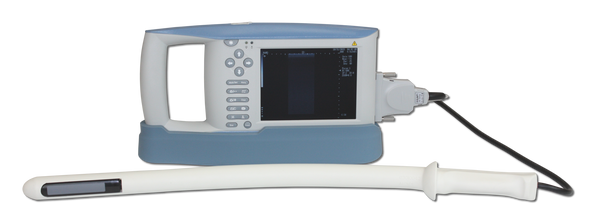

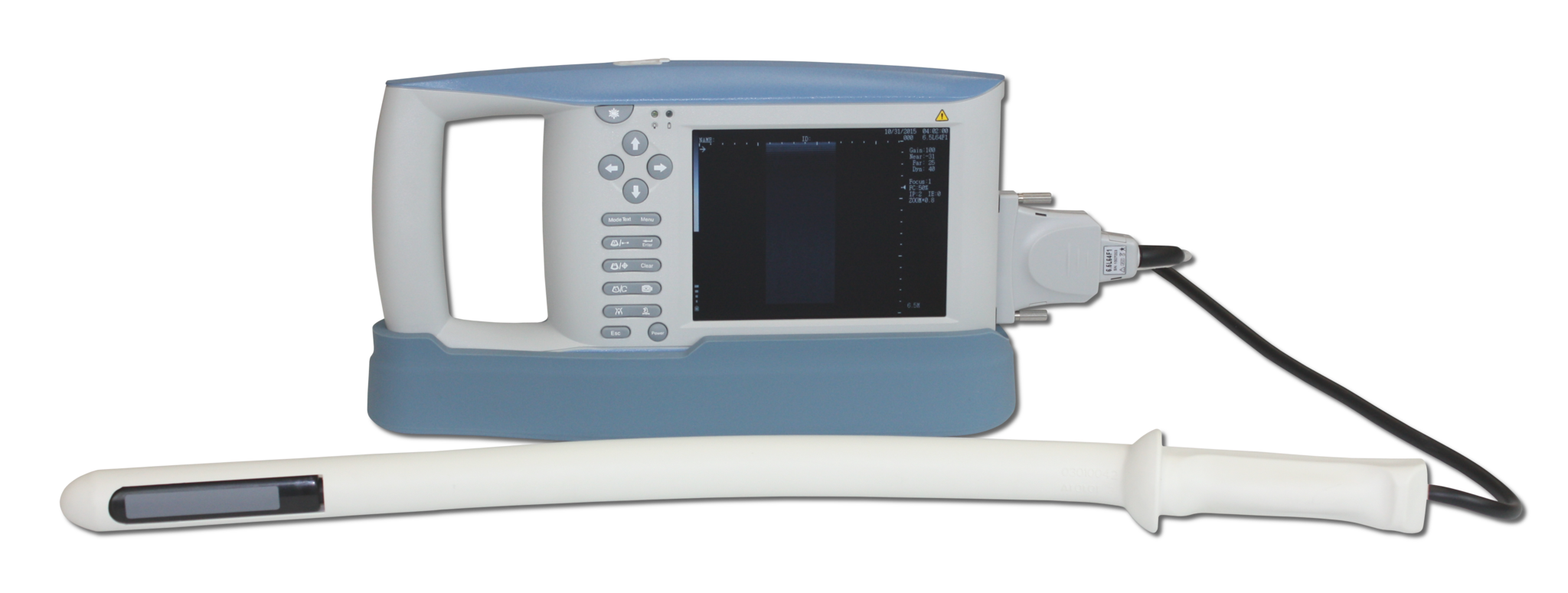

  • 6.5 MHZ linear rectal probe 1 pc.
  • Power adapter: 1 pc.
  • Lithium battery: 2 pcs.
  • Belt for metal case
  • Metal case: 1 pc.
  • Silica gel base: 1pc

Specifications

  • Grey scale: 256
  • 6.4" crystal screen
  • Power supply: AC100V~240V Frequency: 50Hz~60Hz
  • Power consume: ≤ 40VA
  • Main unit size: 326*162*47mm
  • Main unit weight: 1.5kg approximately

Main function

  • Display mode: B, B/B, B/M, M, 4B
  • M speed: 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s
  • Magnification: 0.8, 1.0, 1.2, 1.5, 1.7, 2.0, 2.4, 3.0
  • Depth hoist/ Pan the lens
  • Local zooming
  • Adjustment and displaying of the near field, far field, total gain and dynamic range
  • Single point, multi-point dynamic focusing
  • Frequncy conversion
  • Angles conversion
  • Frange correlation
  • Image post processing, gamma correction and edge enhancement
  • Image freeze, unfreeze
  • Up/ down, left/right, black/white reverse
  • 8 kinds of pseudo color display
  • Patient information, image note and automatic time display
  • Body marks with probe marks: 64 kinds
  • Calculations of distance, perimeter, area, volume, heart rate, slope rate, cycle
  • 10 kinds of obstetric table, automatic calculations of expected date of childbirth and fetus weight
  • Puncture guide line
  • Energy Saving
  • 120 frames Image storage( hard-disk)
  • 256 frames Cine loop
  • Chinese and English alternation
  • Obstetric report;
  • PAL and NTSC alternation
  • USB flash disk storage & image transfer to PC

Probes

  • 3.5MHz multi-frequency convex probe
  • 7.5MHz multi-frequency linear probe
  • 6.5MHz multi-frequency micro-convex probe
  • 4.0MHz multi-frequency  convex rectal probe

(Optional) configuration

  • Probe
  • Goggles
  • Neck belt
  • USB flash disk
  • Thermal printer (P93W-S)
  • Battery (2400mAh)
  • Mouse
  • Color laser printer (specified models: HP Color LaserJet CP1515n, HP Color LaserJet CP1525n)
