Load image into Gallery viewer, Keebomed Palm ultrasounds KX5200V

KX5200V On Sale

Name: KX5200V On Sale
Brand: Keebomed
SKU: KX5200KM
Price: 3,999.00 USD
Availability: InStock

$ 3,999.00

Probes

Quantity

Veterinary Wrist Ultrasound Scanner

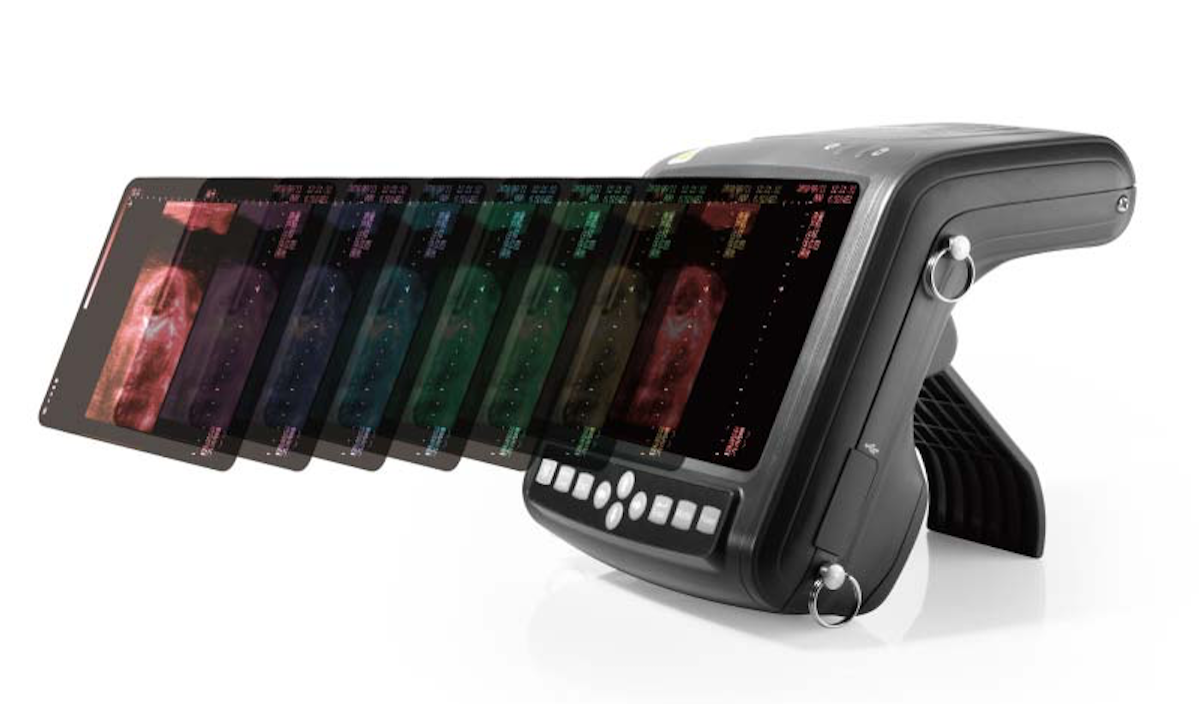

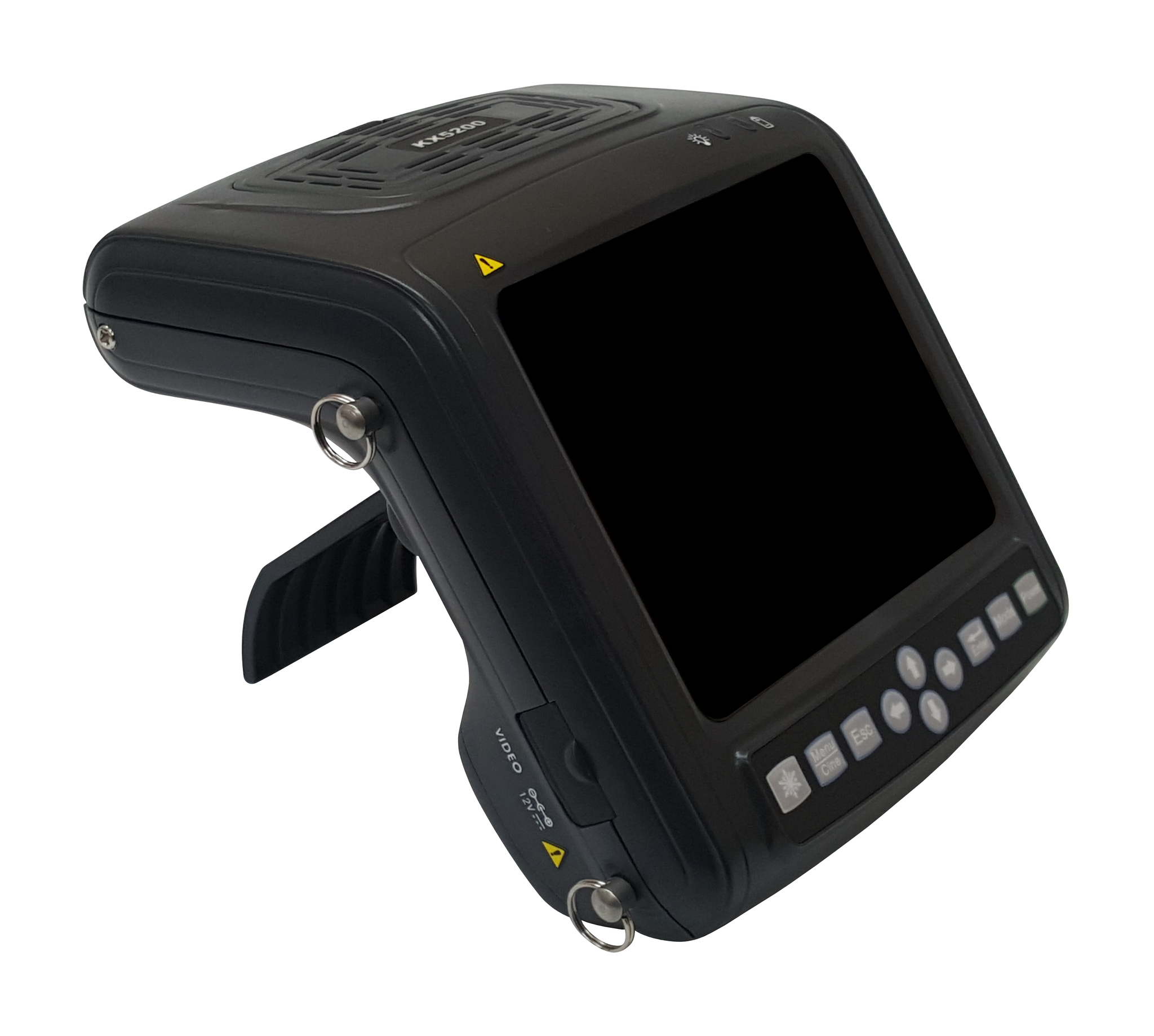

KX5200V is a full digital B mode ultrasound scanner with extensive veterinary clinical applications. It gives an excellent image quality with high resolution and high penetration. It is lightweight and can conveniently be worn on the wrist or hung on the neck for hands free use.

Purchase with us for best price, and a two year warranty on ultrasound and probe.

Features

Digital image technology
Ingenious outline and multifunction
Different probes can be used optionally
Very light for using

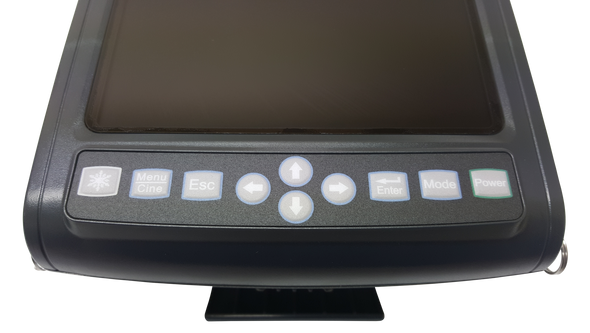

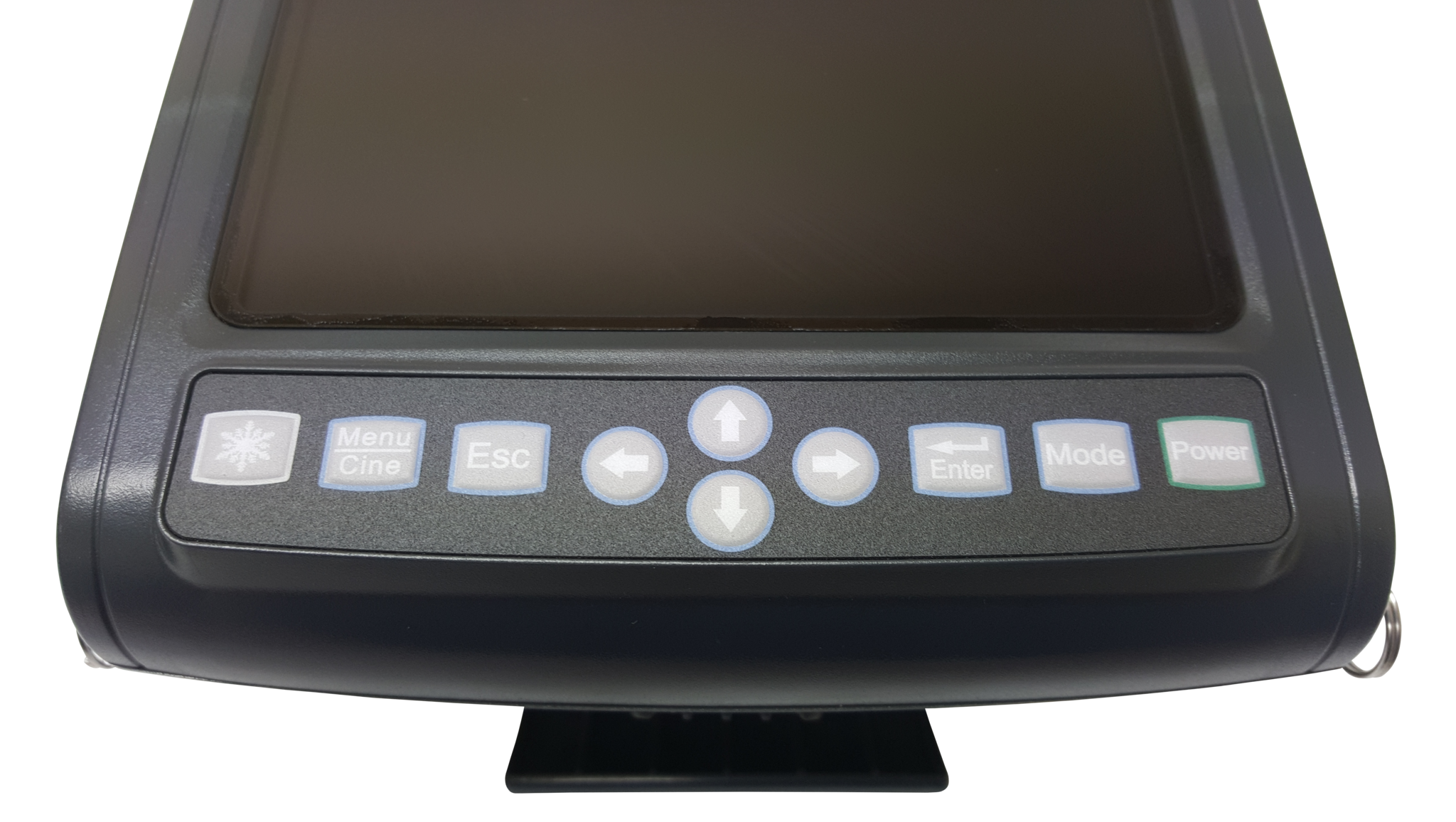

Ergonomic keyboard
USB disk function makes the images easily transferred into computer
Rechargeable battery could last at least 2 hours

Specification

Technology: All-digital imaging technology, full digital beam forming
Scanning methods: electronic convex, electronic linear, electronic micro-convex.
Scanning technology: Real-time dynamic imaging, harmonic imaging.
Probe: Multi-frequency probe series
Monitor: 5.7" high resolution non-interlaced SVGA display
Gray scale of the ultrasound machine: 256 levels.
Display modes: B, B/B, B/M, M, or 4B
Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and *3.0.
Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
CINE loop: 256-frame.
Zoom: Intelligent local zoom in real-time and frozen mode
Image storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station
Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, angle change, Image freeze/unfreeze, gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc, frame correlation function, adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc
Measurements: B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc, M mode: Distance, time, velocity, heart rate etc, General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc, Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks
Report: Obstetric report
Documentation: Full screen documentation, hospital name, Patient name, date/time.
Power Supply: AC 100-240V~, 50-60Hz
Power consumption: ≤ 40VA
Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable

Standard Configuration

KX5200V main machine
5.7Mhz high resolution non-interlaced LCD display
1 probe connector
256-frame CINE loop
100-frame image storage
USB disk port
Measurement & calculation software packages
6.5MHz linear veterinary rectal probe (for veterinary endorectal)
4 veterinary body marks

Optional Probes

3.5MHz convex abdomen probe (for veterinary abdomen, GYN, OB, Urology)
4.0MHz convex rectal probe (for veterinary endorectal)
4.0MHz convex rectal probe with handle (for veterinary endorectal)
5.0MHz micro-convex cardio probe (for veterinary cardio)
6.5MHz linear veterinary rectal probe with handle(for veterinary endorectal)
6.5MHz convex transvaginal probe (for veterinary endovaginal)
7.5MHz high frequency linear probe (for veterinary small parts, orthopedics, breast, musculoskeletal)

Optional

Belt
Biopsy needle-guided brackets
Ultrasound working station trolley
USB software with connection cable
Ultrasound goggles
Rechargeable power supply
Rechargeable power supply in car
Thermal printer (brand: Mitsubishi, model: P93W-S)
Printer paper (cheap)
Printer paper (expensive)
