Load image into Gallery viewer, KX5600 LED SCREEN DICOM

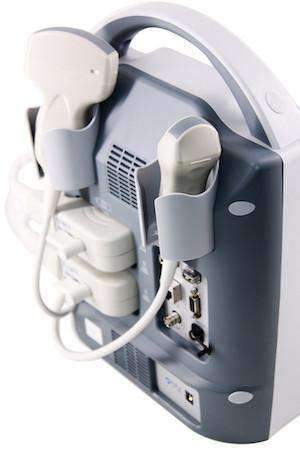

KX5600 LED SCREEN DICOM

Name: KX5600 LED SCREEN DICOM
Brand: KeeboMed
SKU: KX5600KM
Price: 3,999.00 USD
Availability: InStock

$ 3,999.00

Title

Quantity

KX5600 is featuring DICOM, new technology and high quality imaging. KX5600 is concise, practical, easy to use and affordable. Keebomed is an exclusive seller of the KX5600!

Advantages

Light weight (10 lbs) with battery and probe included (similar ultrasounds typically weight 20lbs)
Two probe connectors like standard
(Digital Imaging and Communications in Medicine (DICOM) is a standard for handling, storing, printing, and transmitting information in medical imaging. It includes a file format definition and a network communications protocol.)
Battery included like standards 4 hours
LED monitor allows working outside on sunlight without sun shade.
Large image-The images are displayed full screen, this is significant because many ultrasounds even with screens larger than 12" do not utilize full screen imaging resulting in empty space.
Anti dust and anti splash keyboard is very convenient for use even in dirty surroundings
Affordable--Other similar model are above $4999.
Rectal probe has a 70mm lens producing wide 70mm images which is important for detecting large follicles.

Specifications

10.4’ high resolution color LED backlight display with high contrast and wide viewing angle
Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
Menu operation system with different languages (Spanish, English, French, Russian and Portuguese)
Two probe sockets, auto-identify different optional probe
Display mode：B、2B、4B 、B/M、M
Adjustable depth: 10 grades, max depth to 236mm
Gain：0～127dB
Contrast：27～90dB
Gray scale：256
8 steps intelligent TGC
8 kinds pseudo colors
Image storage: 4G hard disk to permanently store about 5000 frames images；
Cine loop：256 frames
Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
the gravel software package with real-time position line measurement
Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
Cardio measurement：Depth, slope, heart rate, cycle
OB measurement and other measurement
OB report function
One-key store: concise and practical
One-key review：fast, practical image review function
One-key Print
One-key Transfer the current frozen image to net workstation to complete its image text report and print directly
Concise and practical making for easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station which is really complicated and waste time)
Unique One-key-light keyboard function for black room use;
Display brightness adjustable
Dual TV output: PAL/NTSC, can connect video printer when necessary
Power supply：100-240V～ 1.2-0.6A frequency：50-60Hz
Power supply adaptor output：DC12.8V 3.0A

Main Basic Configuration

Main unit
6.5MHz linear rectal probe
Power supply adaptor
Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
Reticle
Two probe sockets
DICOM 3.0

Optional

4.0MHz Convex Rectal probe
6.5MHz Micro-Convex Probe
3.5MHz Linear Probe for eye muscle
3.5MHz Convex Probe
7.5MHz Linear Probe
Battery charger
Trolley
Video printer（UP-897MD）
Ethernet Switch
