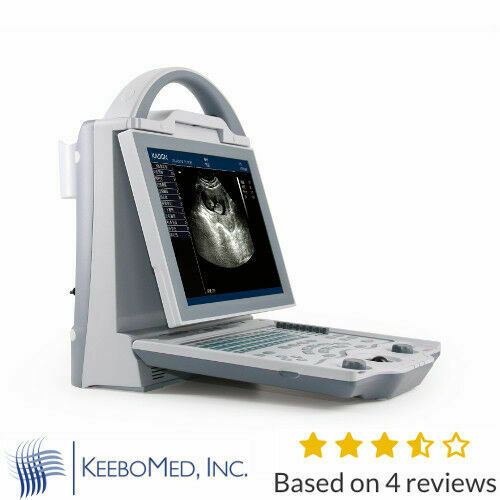

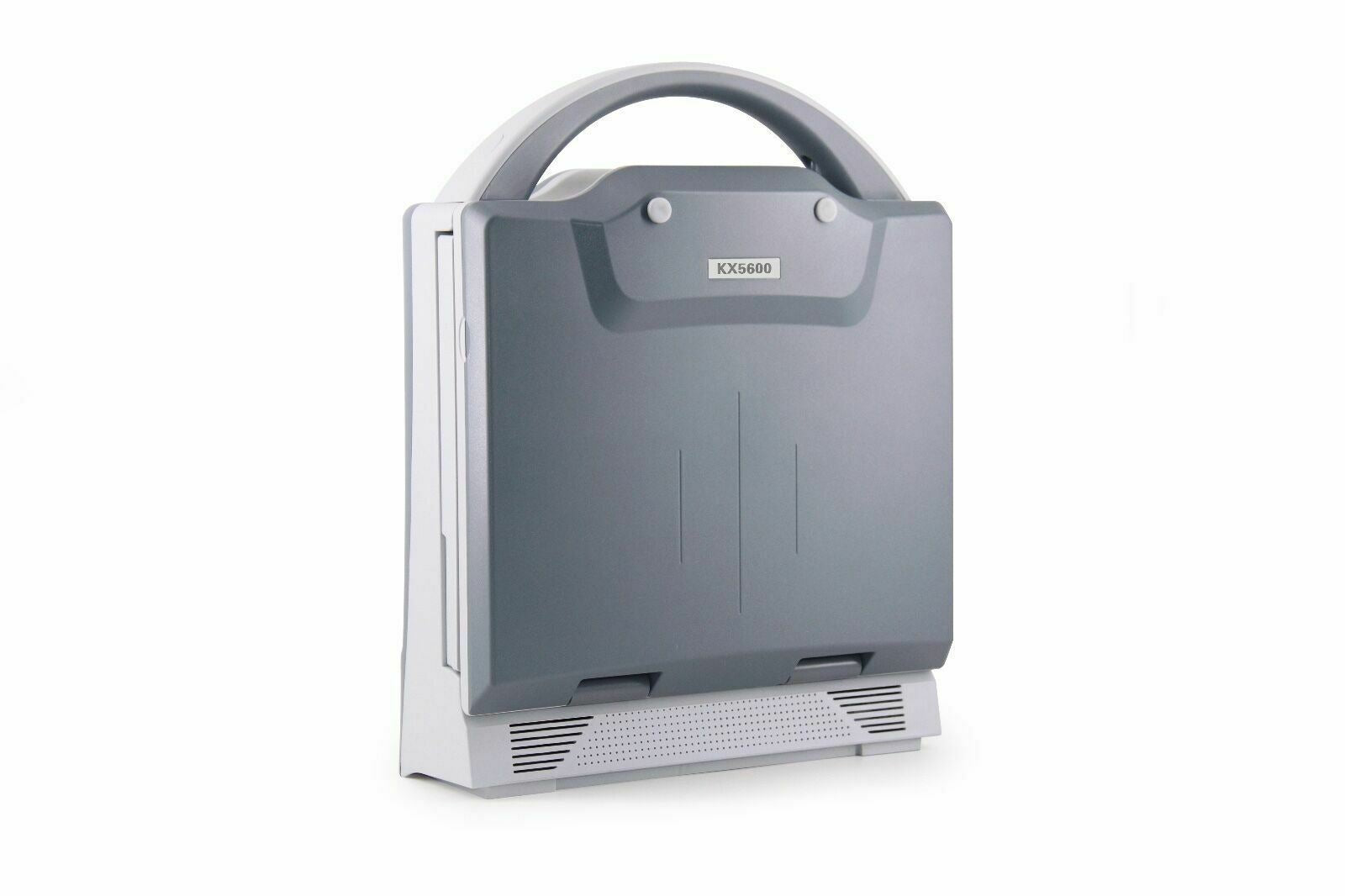

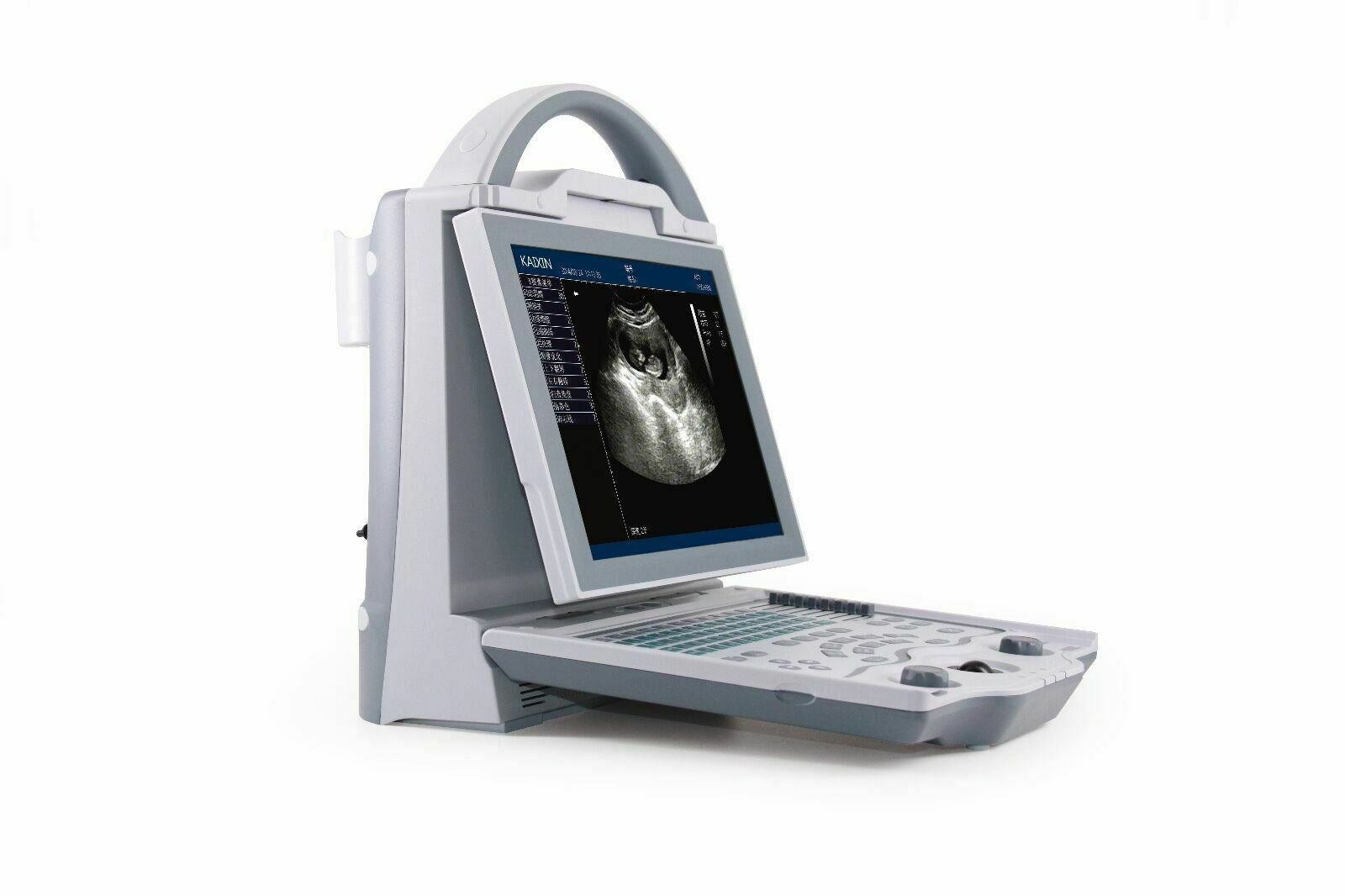

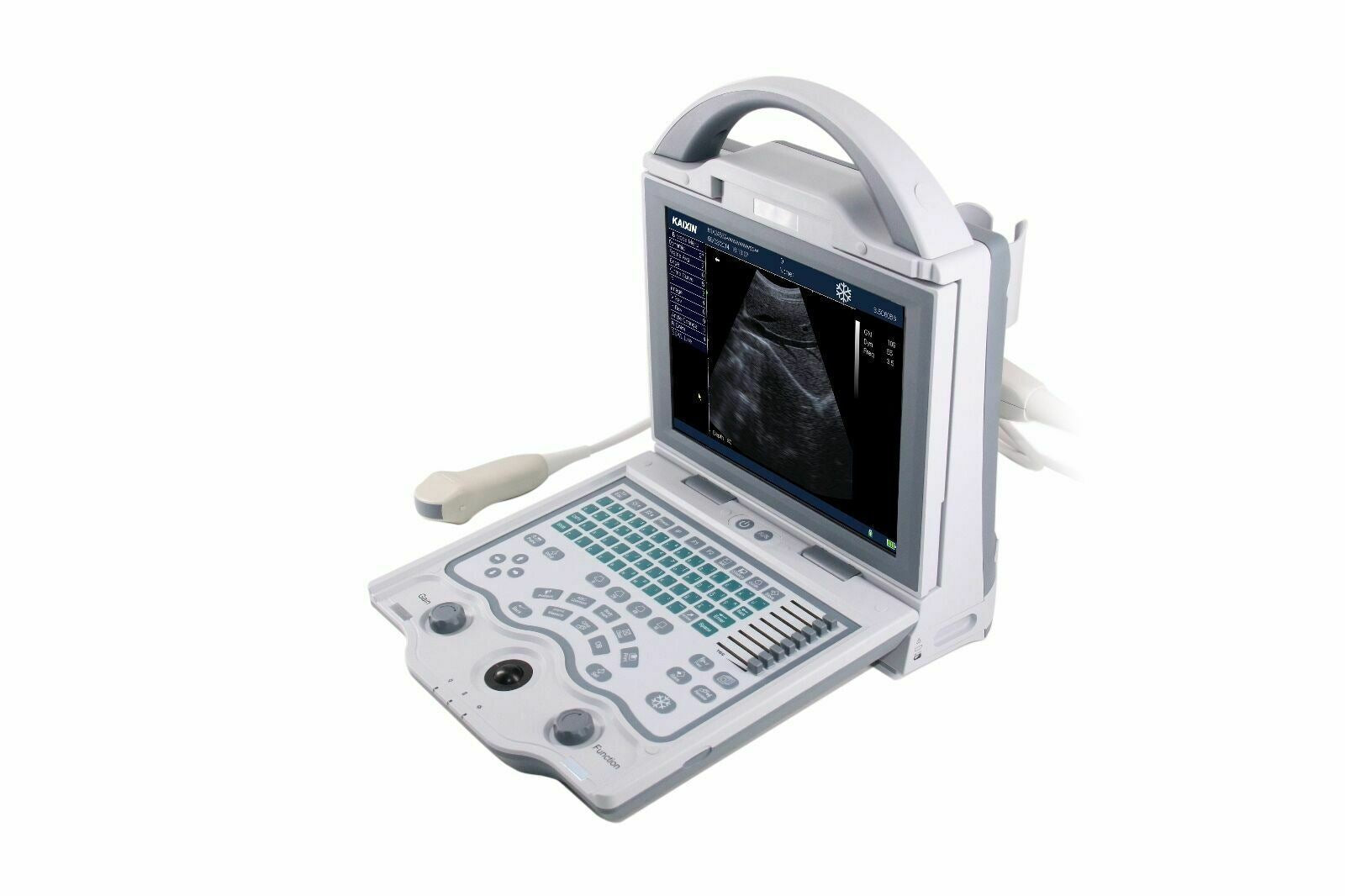

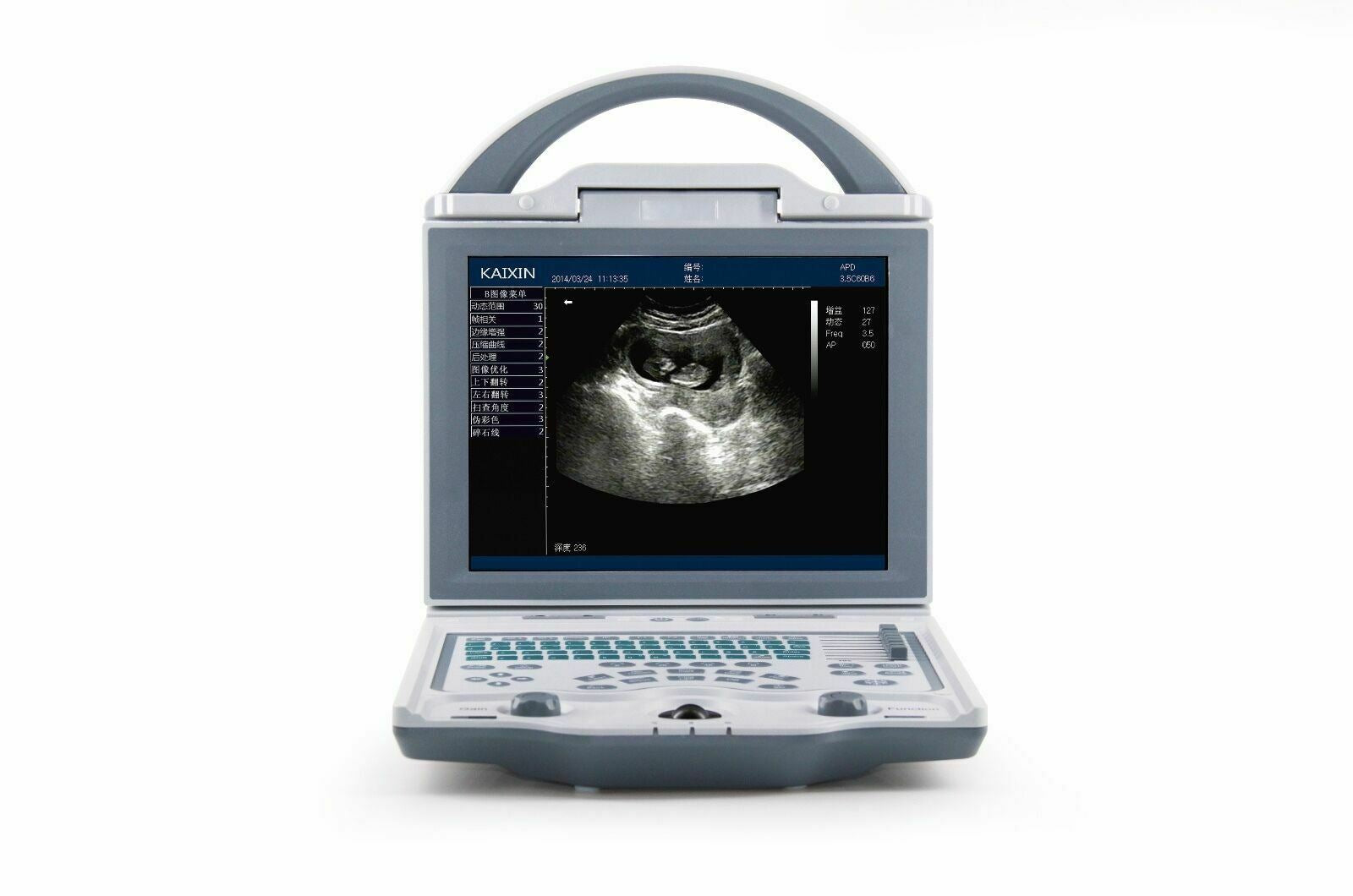

KX5600V - KeeboMed Exclusive Model
Veterinary Ultrasound Machine Laptop for All Animals with battery power. Affordability and good image quality in one place!
Newest technology in portability with LED Screen and DICOM.. This ultrasound is concise and practical, easy operation.
One Probe of Choice: (specify at chekcout)
- Micro-convex 5-9Mhz
- Rectal Linear 5.5/6.5/7.5MHz
- Convex 2-5MHz
- Linear Array 6.5/7.5/8.5MHz
Advantages
- Light weight, only 10 Lbs with battery and probe included. (other ultrasounds like this are about 20lbs)

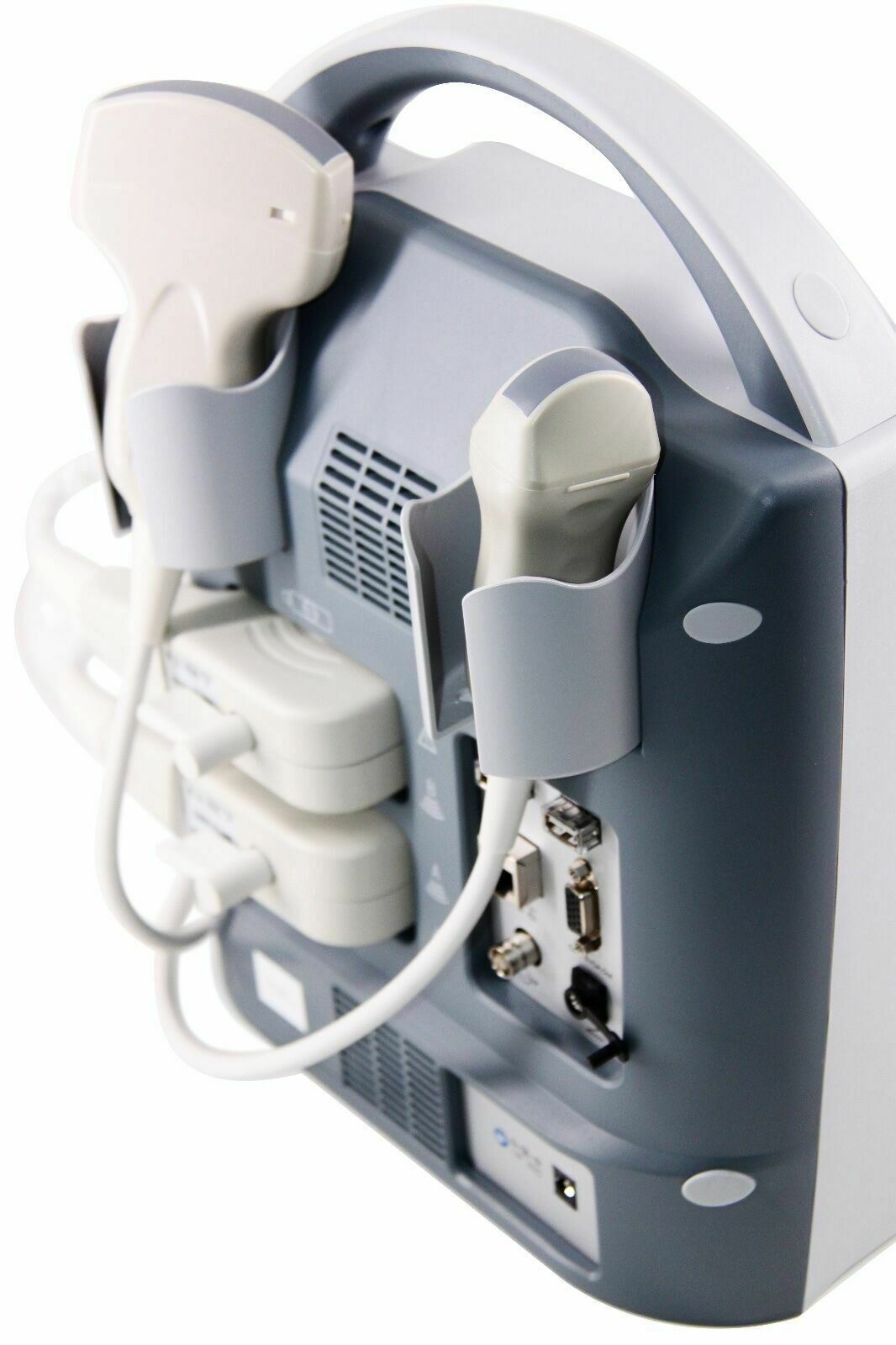

- Two probe connectors as standard.
- Digital Imaging and Communications in Medicine (DICOM) is a standard for handling, storing, printing, and transmitting information in medical imaging. It includes a file format definition and a network communications protocol.
- 4 hour battery included.
- LED monitor allows working outside in sunlight without sun shade.
- Full screen image, gives large image.
- Anti dust and anti splash keyboard, very convenient for working even in messy conditions.
- Rectal probe has 70mm lens and provides a 70mm image also, very important to see big follicles.
Specifications
- 10.4’ high resolution color LED backlight display with high contrast and wide viewing angle
- Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
- Menu operation system with different languages (Spanish, English, French, Russian and Portuguese)
- Two probe sockets, auto-identifies different optional probe
- Display mode: B、2B、4B 、B/M、M
- Adjustable depth: 10 grades, max depth to 236mm
- Gain: ～127dB
- Contrast: 27～90dB
- Gray scale: 256
- 8 steps intelligent TGC
- 8 kinds pseudo colors
- Image storage: 4G hard disk to permanently store about 5000 frames image.
- Cine loop: 256 frames
- Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position)
- The gravel software package with real-time position line measurement
- Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
- Cardio measurement：Depth, slope, heart rate, cycle
- OB measurement and other measurement
- OB report function
- One-key store: concise and practical
- One-key review: fast, practical image review function
- One-key Print
- One-key Transfer the current frozen image to net workstation to complete its image text report and print directly
- Concise and practical, easy operation. The system includes network workstation to complete data & report management.
- Unique One-key-light keyboard function for black room use.
- Adjustable display brightness
- Dual TV output: PAL/NTSC, can connect video printer when necessary
- Power supply: 100-240V～ 1.2-0.6A frequency: 50-60Hz
- Power supply adaptor output: DC12.8V 3.0A
Standard Configuration
- Main unit
- 6.5MHz linear rectal probe
- Power supply adaptor
- Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
- Reticle
- Two probe sockets
- DICOM 3.0
Optional
- Battery charger
- Trolley
- Video printer (UP-897MD）
- Ethernet Switch
