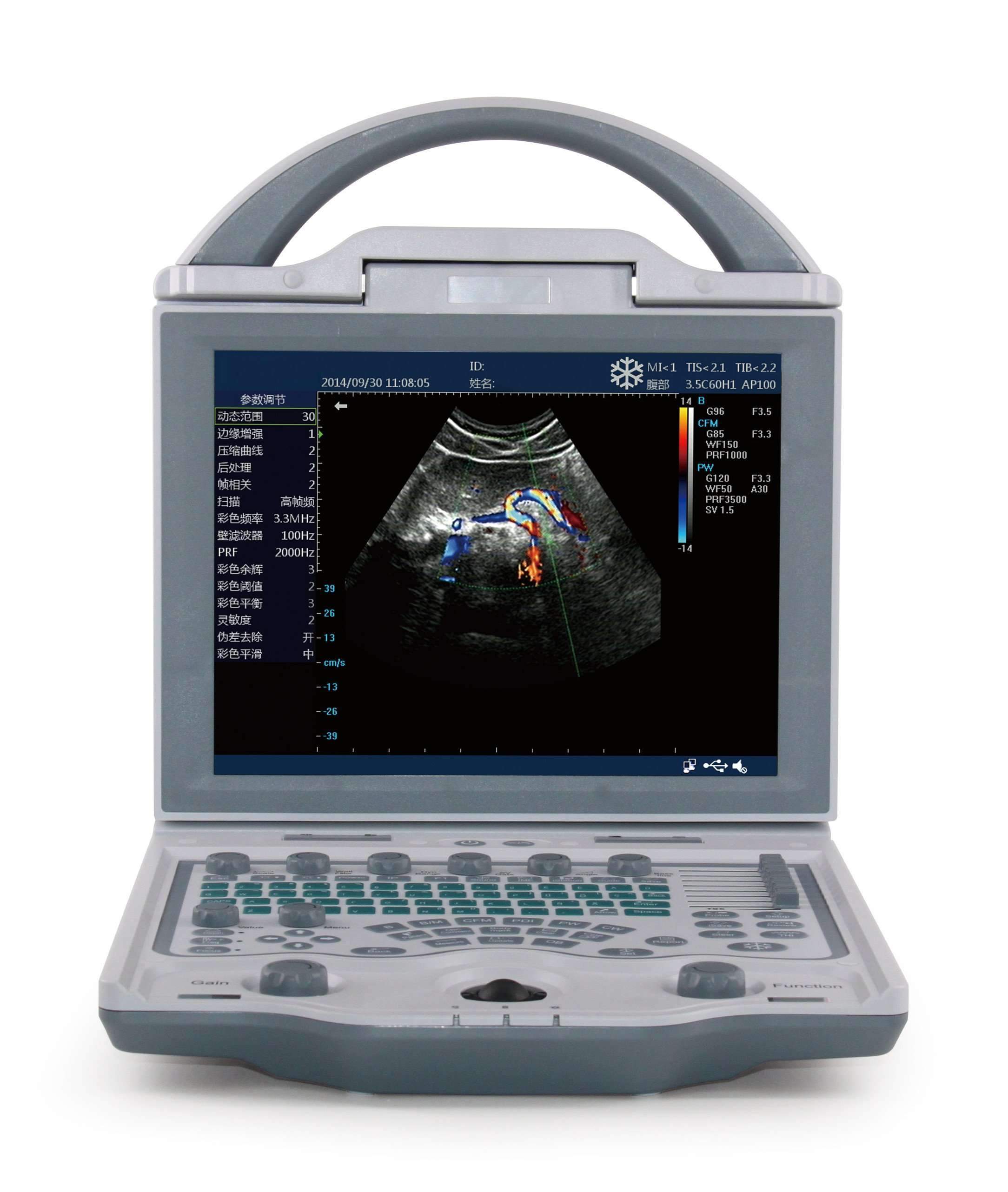

Refurbished DCU-12 Vet

Name: Refurbished DCU-12 Vet
Brand: KeeboMed
SKU: DCU12KM
Price: 3,999.00 USD
Availability: InStock

$ 3,999.00

Compare at $ 4,999.00

You save 20% $ 1,000.00

Probe Options

Quantity

Affordable Handheld Color Doppler Ultrasound

DCU-12 Vet is the most affordable full digital color Doppler system that you can buy. It is easy to use and has excellent image quality. The DCU-12 Vet Ultrasound provides reliable performance, includes an abundance of measurement software. Provides advanced practical clinical solutions for ultrasound diagnosis of cattle, dogs, horses, cats, goats, sheep, and pigs.

Standard Configuration

Main Unit
Choice of 4 probes:

3.5MHz R60 convex probe (2.0/2.5/3.5/5.0MHz)
7.5MHz L40 linear probe (6.0/6.5/7.5/9.0MHz)
6.5MHz R20 micro-convex probe(5.0/6.5/7.5 /9.0 MHz)
6.5MHz linear rectal probe (4.5/5.5 /6.5 /7.5MHz)

Features

Specific Veterinary Software Packages
Transmitted Signal Accuracy Control
i-Image, Image Optimization Imaging Enhancement
Adaptive Color Artifact Removal Technique
Linear Probe Independent Angle Deflection
i-Station, Integral Working Station
Phase Enhance Harmonic
Accurate Vessel Imaging
Convenient and Practical Data Manager
Abundant Measuring Software

General Description

Built-in embedded A8 platform, totally against virus invasion, with high reliability
Operating system: Linux
Digital multi-beam forming technology, precision delay-by-point dynamic receive focus, ultra-wideband imaging, adaptive image optimization, adaptive angiography, adaptive Doppler imaging
Ultra-wideband fully digital beam former: Dynamic Focus
Gray-scale imaging unit
M-mode imaging unit
Visual adjustable dynamic range
Gray-scale imaging unit, grayscale ≥256 levels, with excellent contrast resolution and the audience subtle and uniformity

Specifications

Grayscale: 256 levels
Color scale: 256 levels
Display: 10.4" flicker-free high-resolution LCD dedicated medical color display
Power supply: 100-240V～ 1.2-0.6A; Fre: 50-60Hz
Adapter output: DC12.8V 3.0A
Power consumption: ≤100VA
Main unit dimension: approx 256×150×326 (mm, L×W×H)
Main unit N.W.: 4.5Kg (without accessories)

Multimedia and Peripheral Equipment

Video printer
i-Station integrated workstations, to achieve store images, report generation, and cloud printing capabilities
U disk (file management support, software upgrades, and one-key store function), DICOM interface, easy to doctor's data management, remote transmission
Dual TV output: PAL/NTSC

Operating Modes

B, B/B, 4B mode
M, B/M mode
CFM
PDI
PW
THI

Operating System Setup

Basic Setting: Interface language, time, date and date format, screen-savers time settings, key tone setting, standard setting, font brightness setting
Formula preset: gestational formula for cattle, dogs, horses, cats, goats, camels, sheep, and pigs
Notes preset: disease, routine, abdominal, obstetric, cardiac, urology, superficial seven kinds, can be preset for each common noun and can be added, modified, and edited according to the actual requirements - very user-friendly
Stored presets: Photo storage format selection: BMP, PNG format (image compression format)
Password preset

Main Functions

System Preset
I-User-defined, to store the setting while he used the main unit to save time to set again
Probe switch
Mode switch
Magnification/Depth selection
Frequency switch
Frame switch
ID
Compression curve
IP
Focus switch
Up/down, left/right reverse
TGC, Gain & Dyn adjustment
i-Image optimization imaging technology
Color frequency, PRF, wall filter adjustment
Deflection angle, sample volume, linear color deflection, velocity scale, baseline function can be adjusted
Adjustable harmonics
B mode normal measurement, M mode routine measurements, CFM mode routine measurements, PDI mode routine measurements, PW mode measurements; and abdominal measurement applications, obstetrics application measurement, measuring cardiac applications, measuring urinary system applications, superficial organ application measurement
Sound power adjustable
Puncture guiding function
Gravel location positioning function
Built-in disk storage 16G, mass storage images, reports, videos, permanent storage, (BMP format picture ≥ 10 thousand, PNG format images ≥100 thousand)
Image management function
Mass video storage and replay (Under B mode: 380, under M mode: 4000）
Body mark
Note input
Patient info input
Report generation
One key store
One key to access report
One key to transfer an image to network printer to print the image
LCD brightness adjustable
Energy saving

Image Pretreatment

Total gain: 0～127 dB
TGC: 8 stages
Power output: 25%, 50%, 75%, 100%
Digital channels: 32

Image Treatment

IE: 0～3
Frame correlation: 0～3
IP: 0～7
Compression curve: 0～7

B Mode Scanning Parameters

B sound output: 25%, 50%, 75%, 100%
B Gain: 0～127
Depth: 32～252 mm (35 scales)
Dyn: 30～100dB
Frequency: 4 scales
Harmonic: 2 scales

M Mode Scanning Parameters

M sound output: 25%, 50%, 75%, 100%
M Gain: 0～127dB
Depth: 32～252 mm (35 scales)
M Dyn: 27～100dB
M Scanning speed: 1～8 adjustable
M sampling line visual & adjustable
M scanning mode: scrolling & scanning
Frequency: 4 scales
Harmonic: 2 scales

CFM Mode, PDI Mode

Output: 25%, 50%, 75%, 100%
CFM Gain: 0～127dB
Color frequency: 2 scales
Max PRF: 5kHz
Min PRF: 35kHz
CFM wall filter: 8 steps 50-350Hz
Sensitivity: 6 kinds
Color afterglow: 4 kinds
Color threshold: 6 kinds
Color balance: 16 steps
Color smoothing: 3 steps
Artifact removal: 2 steps
Linear color deflection adjustable
Image optimization: 12 scales

PW Mode

Sound output: 25%, 50%, 75%, 100%
PW Gain: 0～127dB
PW Dyn: 13 scales 0-120
PW frequency: 2 scales
PW wall filter: 8 steps 50-350Hz
Noise Reduction: 4 scales
Sample volume width: 5-20mm
Angle correction
Basic line adjustment: 7 steps
Max PRF (speed): 5kHz
Min PRF (speed): 35kHz
Speed ruler: 8 steps
Volume: adjustable
Linear color deflection adjustable

Measurement & Calculation

Routine measurement: measurement software package & report for B mode, Ｍ mode, D mode
OB software for Cattle, dogs, horses, cats, goats, camels, sheep, and pigs
Software package for urological measurement & analysis
Software package for superficial organs measurement & analysis
Software package for cardio measurement & analysis
