Used Chison 8300V

Chison Portable Used 8300V Ultrasound

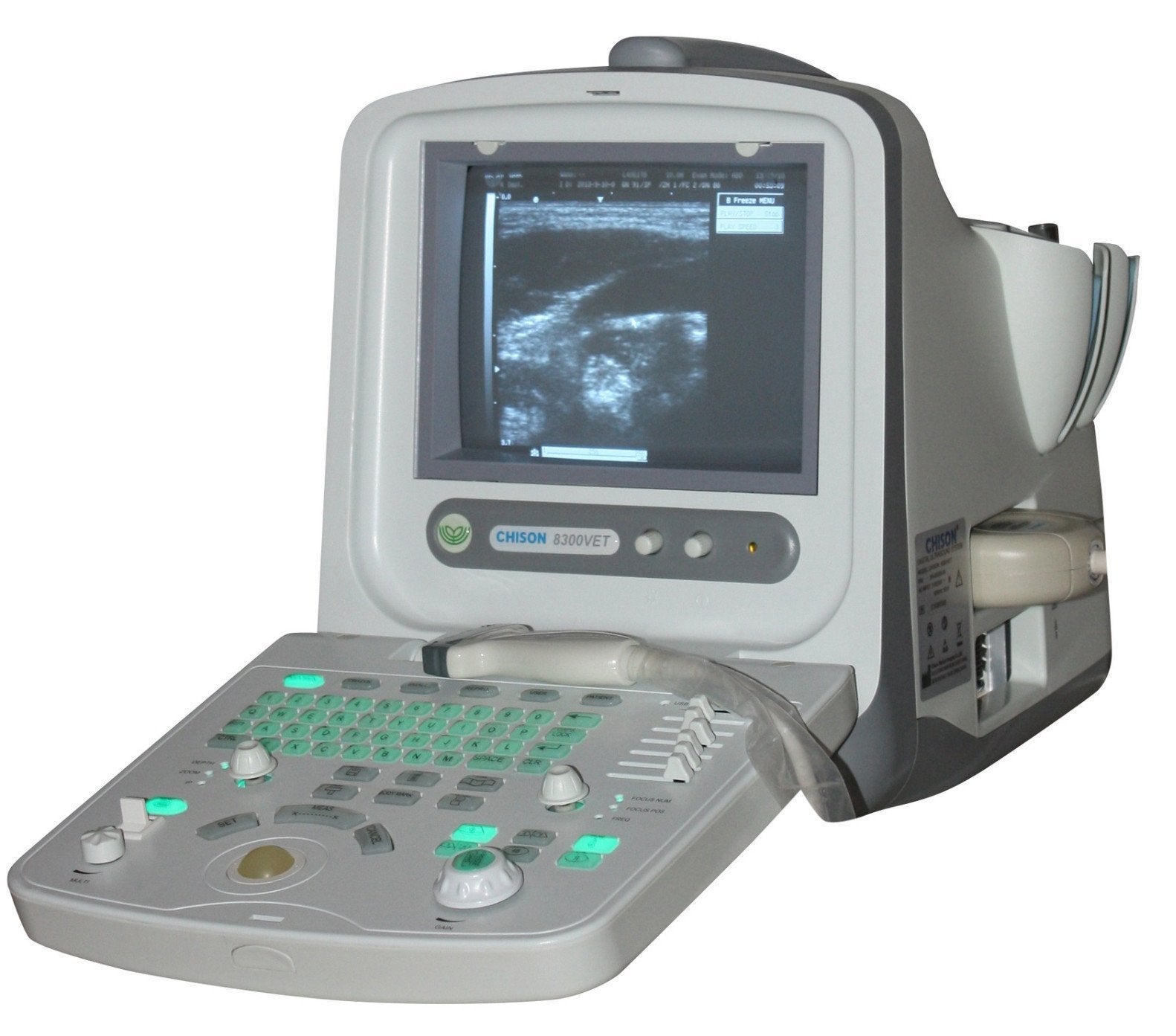

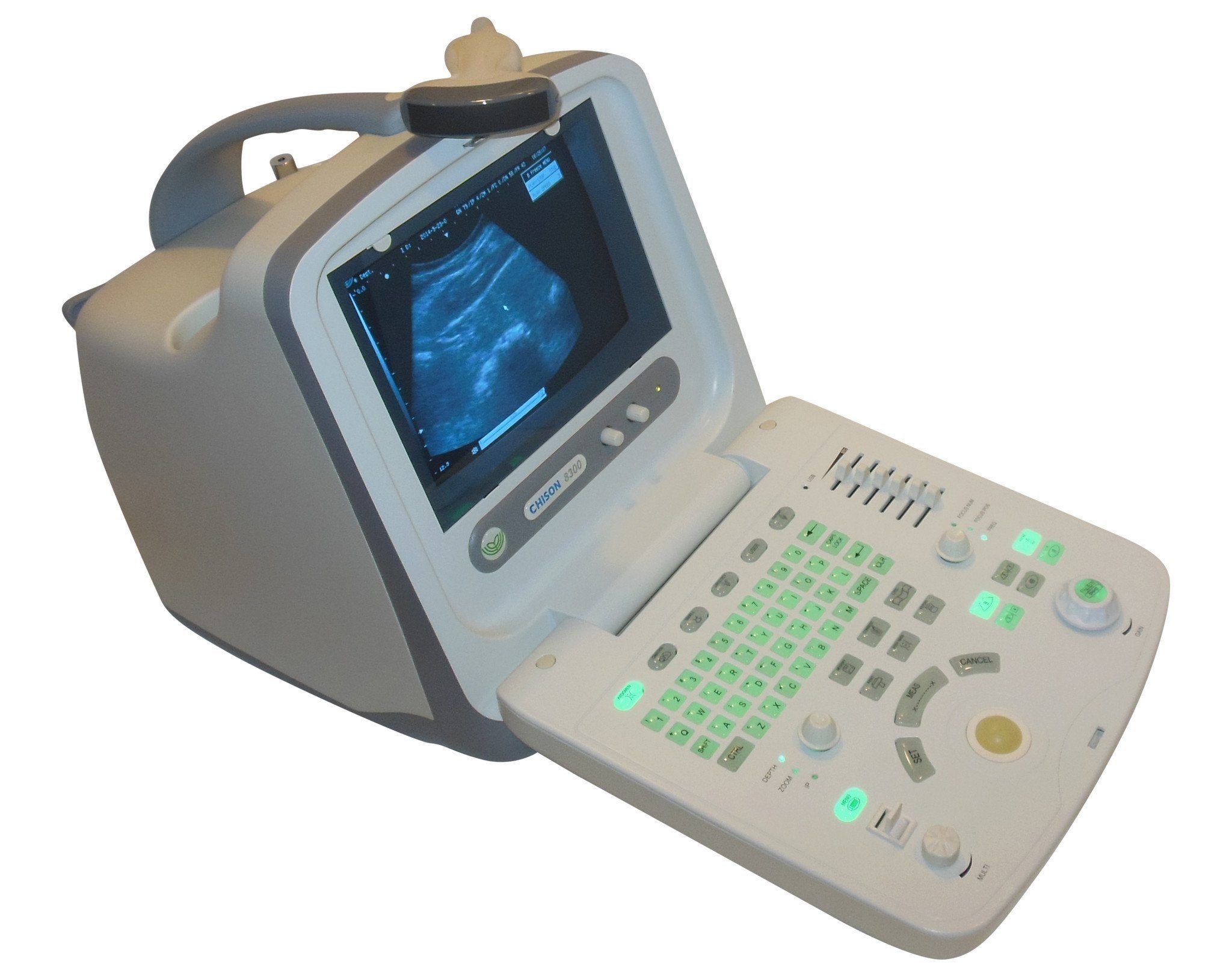

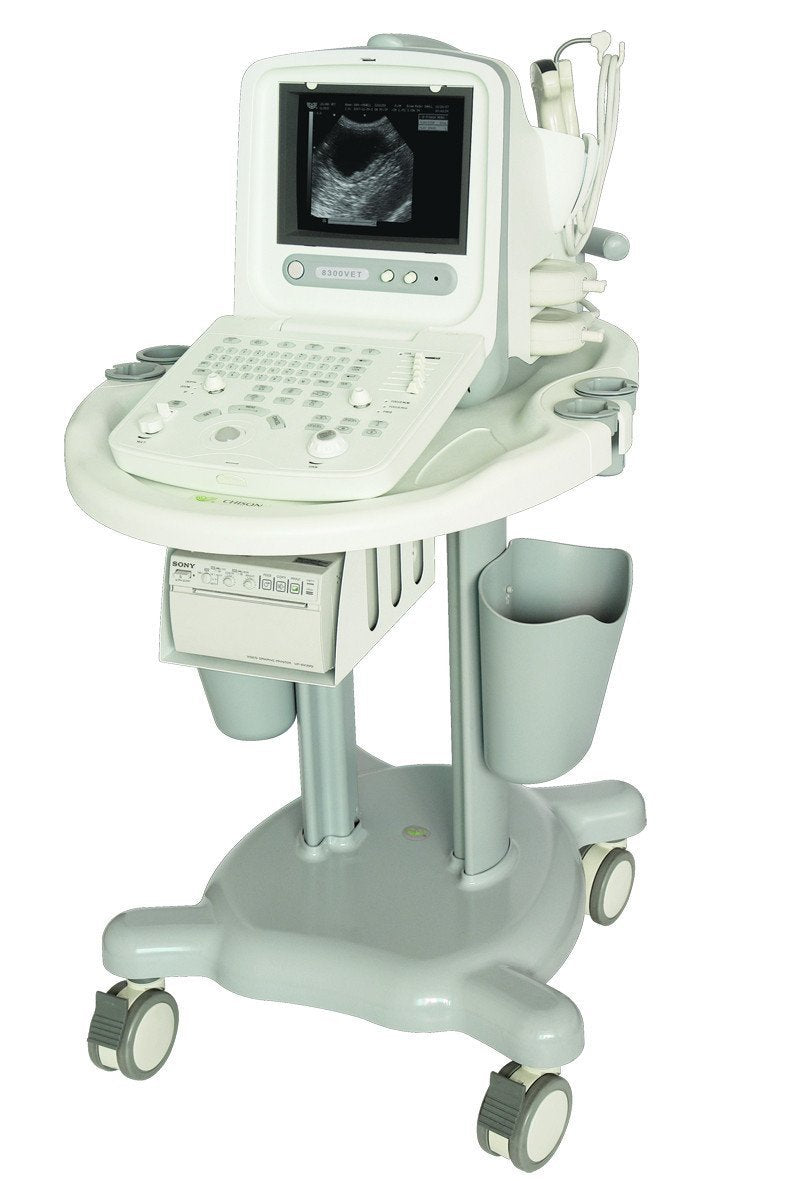

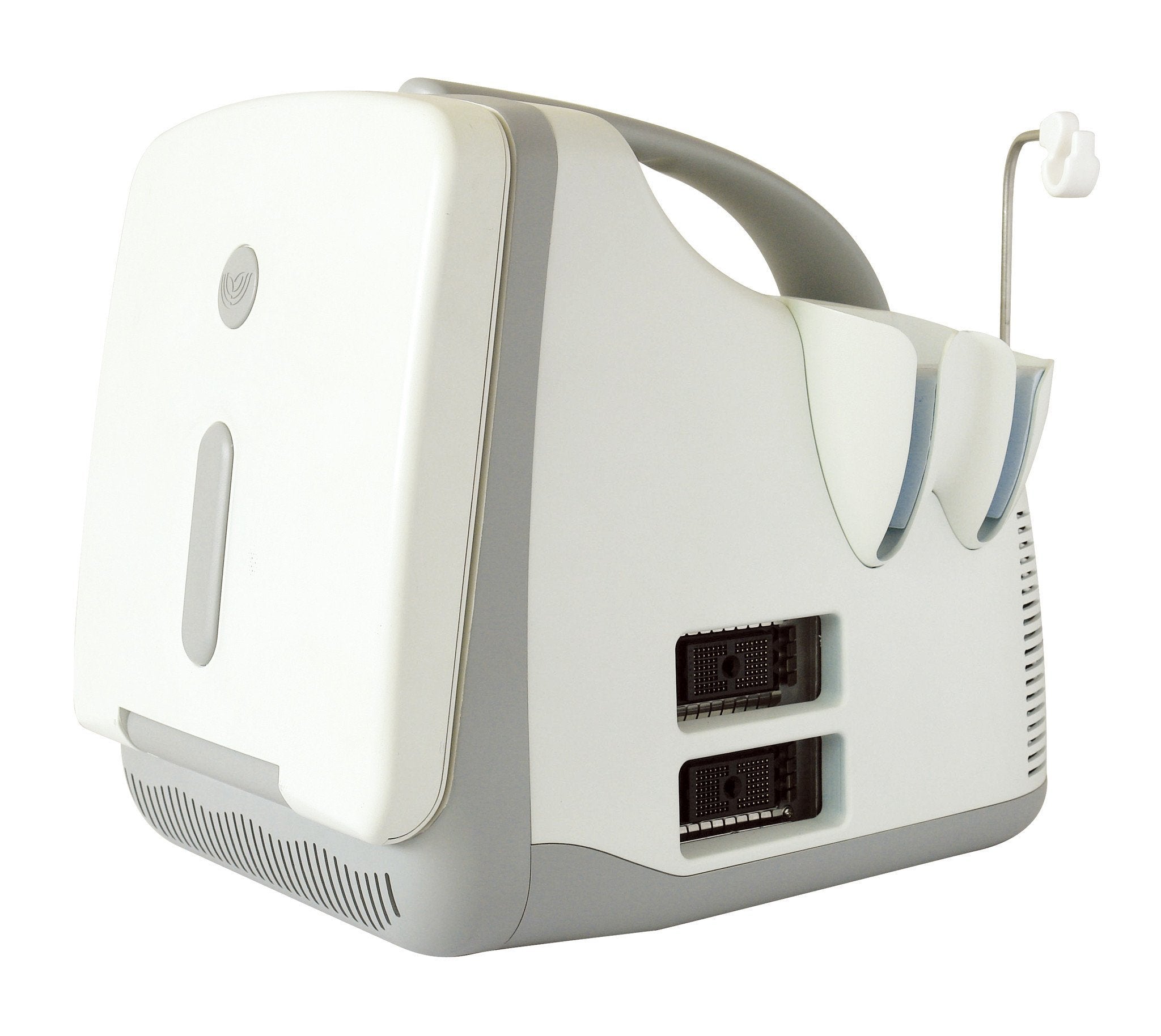

Chison 8300V Ultrasound is a quality digital compact machine that has sold for a long time with excellent customer reviews. It is recommended for equine and bovine diagnostic reproduction and pet ultrasound examination!

Features

  • Comes with one probe: Rectal, Convex, Micro Convex, Linear Array
  • 2 year warranty
  • Wide Applications and Special Software for veterinarian
  • Back-lit ergonomic keyboard for good visibility in dark room
  • Neat and Clean keyboard, easy to remember

Software Packages

  • Canine: GS, CRL, HD, BD
  • Feline: HD, BD
  • Equine: GS
  • Bovine: BPD, CRL, Trunk Diameter
  • Ovine: BPD, CRL, Trunk Diameter

Specifications

  • Scanning Methods: Electric Convex, Electronic Linear, Electronic micro-convex
  • Gray Scale 256 levels
  • Real-time dynamic imaging: RDF,RDA,DFS,DRA.
  • Harmonic imaging, Compound Imagaing, VHSI (Image optimization software)
  • 240mm Maximum scanning depth (depends on the probe type)
  • Probe Frequency: 2.5MHz - 10.0MHz (Depend on the probe type)
  • Electronic Convex/Electronic Linear/Electronic Micro-Convex
  • Abdomen, OB&GYN, Small parts, Reproduction, Cardiology
  • B,B/B,4B,M,B/M Display modes
  • 10-inch SVGA high resolution monitor
  • Cine loop: 128 frames
  • Can do permanent storage, Built-in memory, and USB disk (through USB port)
  • Has 4-step zoom
  • Pre-processing: IP selection, dynamic range, edge enhancement, smooth, frame averaging, scanning angle selection, line density selection etc.
  • Post-processing: Y correction, gray transformation, gray rejection etc.
  • STC:6 slides for Near, Far and Overall gain control
  • Left/Right, Up/Down Image reversing
  • B mode: distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile, etc.
  • M mode: distance, time, velocity, heart rate, etc.
  • Patient information management
  • Full screen documentation, hospital name, patient name, date/time
  • Annotation database available, pre-saved phrases can be recalled
  • AC230V ± 10%,50Hz(standard)/AC110V ± 10%,60Hz (Upon customer request)
