Kaixin KX2600V Display Model

Used Portable Electric Mixed Practice Vet Ultrasound

This scanner was a display model for only a few hours, looks like new. Comes with a full warranty!

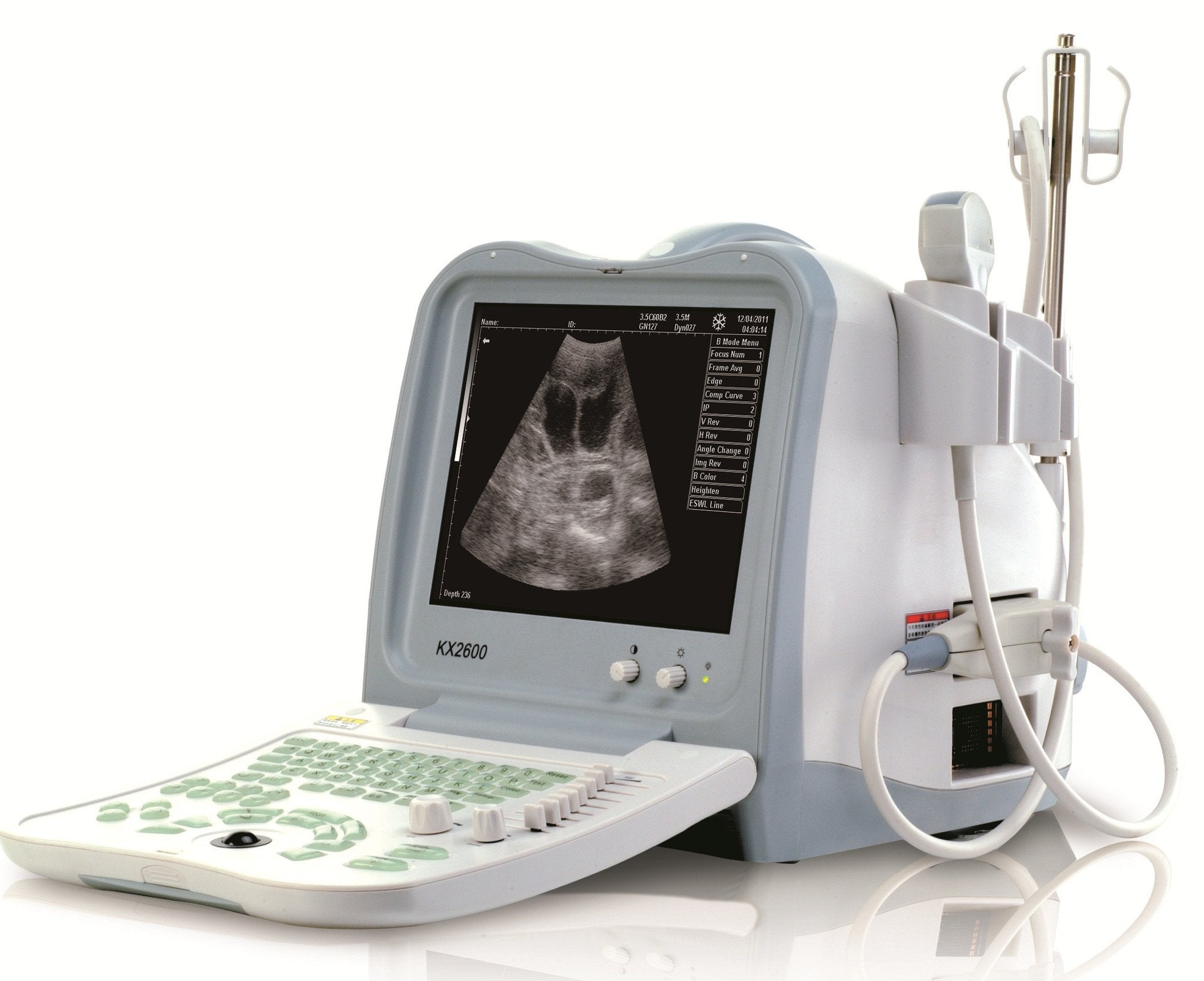

KX2600V is a high frequency 5.0-8.0MHz ultrasound scanner by Kaixin.  An excellent choice for small animal sonography at veterinary clinics or hospitals.

Features of the KX2600V

  • Two transducer probe connectors, automatic probe identifier
  • Full digital B Mode
  • Easy to operate
  • Support English, Spanish, Russian, French, Portuguese
  • EDD and GA measurement for bovine, equine, ovine, canine, feline, goat, swine and llama
  • Automatically calculate back fat and lean percentage of swine
  • Back lit gel keyboard with trackball and encoder
  • 28 grades depth adjustment under full visual field, maximum display depth is 245mm
  • 100 frames permanent storage
  • 256 frames cine loop
  • Two USB ports, supports large capacity U disk (supports document management/software upgrades/one-key storage)
  • Print from your laser printer various images and reports
  • DICOM 3.0 network port, easily realizes network transmission function

Parameter

  • Adopt ARM9 Embedded Control Systems, FPGA signal processing system and specially selected ultrasonic hardware system, making the machine more reliable.
  • 10" high resolution CRT display, progressive scanning without sparkle.
  • Double probe sockets, automatically identify the probe, support several optional probes.
  • Body mark: 1.general 2.bovine 3.canine 4.equine 5.feline 6.cadioloy - 7 kinds, total 22 body marks with probe position.
  • Display mode: B, 2B, 4B, B/M, M, total 5 kinds.
  • 28 grades depth adjustment, maximum display depth is 245mm.
  • Gain range: 0~ 127dB.
  • Dynamic range: 27~ 90dB.
  • Gray: 256.
  • Intelligent TGC control: 8 segments.
  • Frame frequency: 30 frames/second.
  • Image storage: main unit Disk C 32 MB capacity, 100 frames permanent image storage, without loss of image when power off.
  • Cine loop: 256 frames.
  • Puncture guiding function ( 2 guiding lines, angle and position adjustable )
  • General measurement: distance, perimeter, area (trace method, ellipse method), volume, etc.
  • Cardiac measurements: depth, slope, heart rate, time.
  • OB measurement: EDD and GA for swine, bovine, equine, ovine, canine, feline, goat and llama.
  • Other measurement: Lean meat percentage of swine.
  • OB report function.
  • Dual-mode TV output: PAL/NTSC, connecting to video recorder and ultrasonic working station.
  • DICOM 3.0 network port, realizing network transmission easily.
  • AC110/230V -15%~+10%(self-adaptation supply voltage)60/50Hz±1Hz.
  • 10kg
  • 400x280x325mm (length x width x height)

Standard configuration

  • Main unit
  • 10" high resolution CRT screen
  • Two probe sockets, automatically identify probe
  • Linear rectal probe 6.5MHz

Optional Probe/ configuration

  • 6.5MHz multi-frequency micro-convex probe
  • 3.5MHz multi-frequency convex probe
  • 7.5MHz multi-frequency linear probe
  • 6.5MHz multi-frequency trans-vaginal probe
  • 4.0MHz multi-frequency convex rectal Probe
  • 5.0MHz multi-frequency micro-convex probe
  • Trolley
  • Video recorder(P93W-S)
  • HP Laser Jet 1020, HP Laser Jet 1022, HP Laser Jet P1007, HP Laser Jet P1008)
