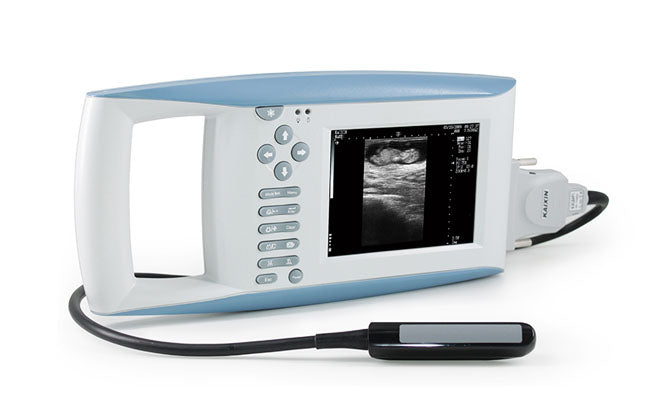

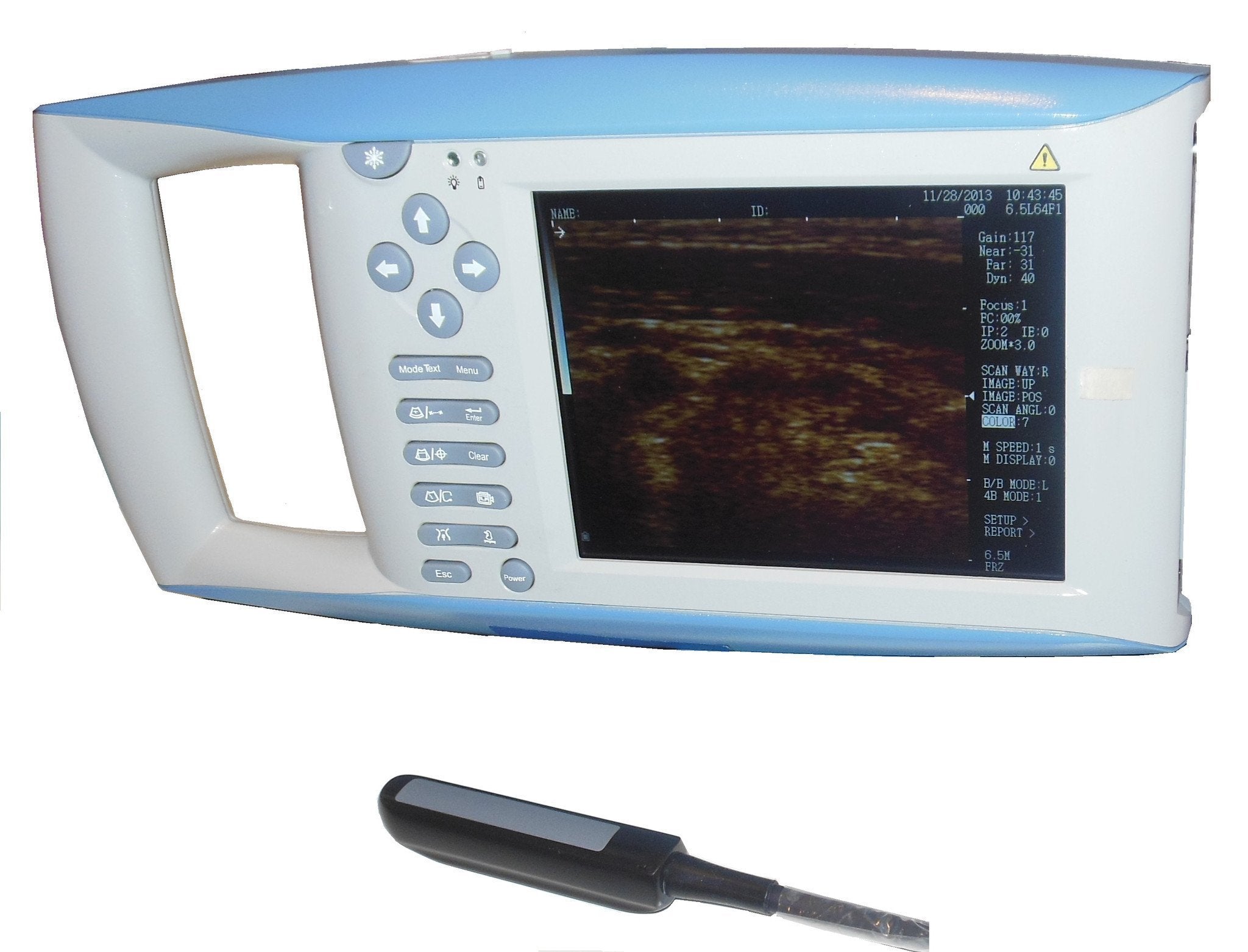

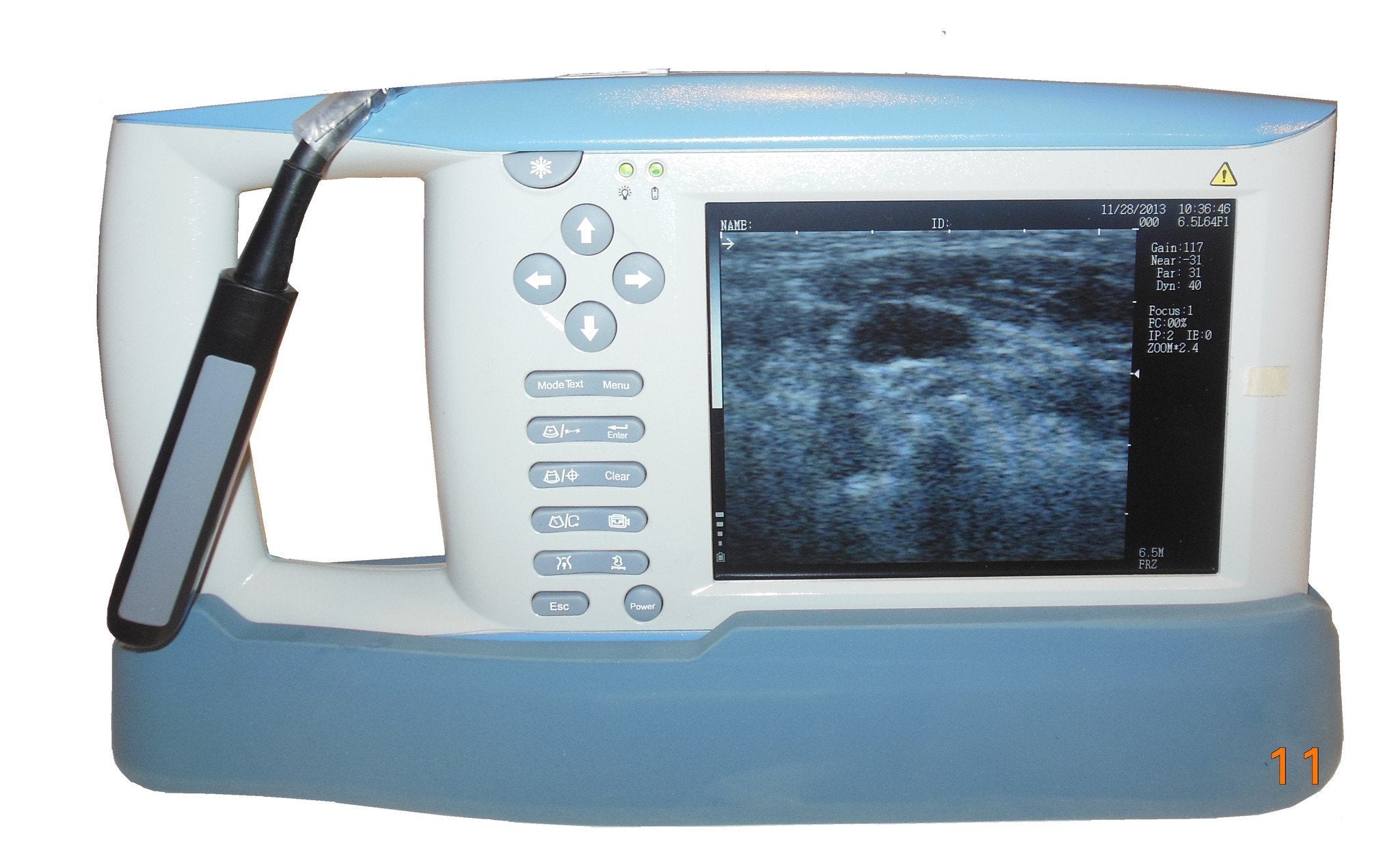

Kaixin KX5100V Demo Model

Used Handheld Diagnostic Veterinary Ultrasound

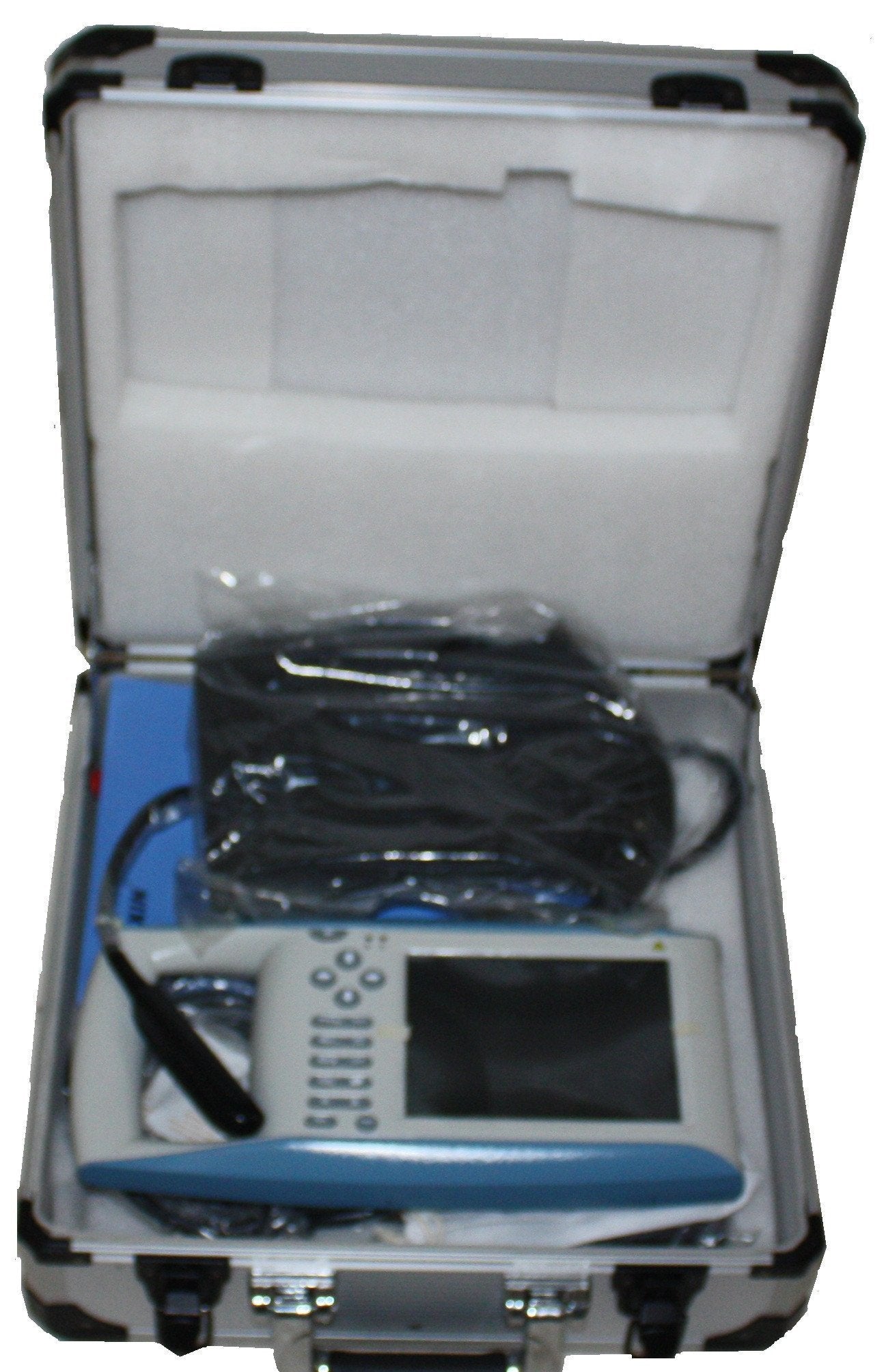

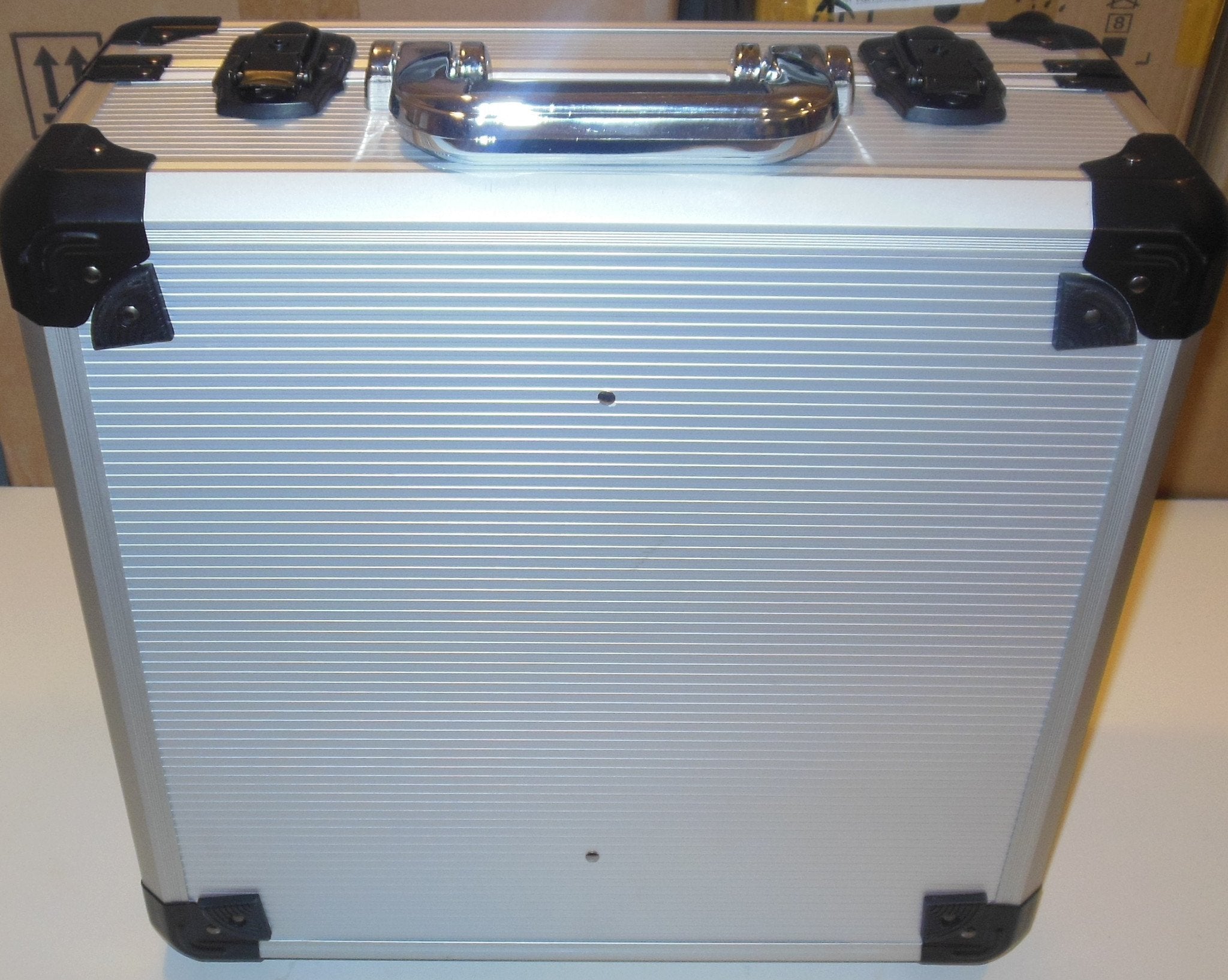

KX5100V demo model was working only a few hours. Comes in an aluminum case, with one extra battery.

This is a perfect ultrasound for large animals in a veterinary clinic or on the farm. LCD screen provides high brightness and contrast, a wide visual, and a clear image. USB port allows you to print out images and reports, making the output of diagnosis convenient and simple. Supports document management, software upgrades, and one key storage.

Only one used model in stock, and new model sells for $3999.

Features

  • Intelligent and adjustable focus
  • Hand-held design, multiple patents in one
  • Smart and light, easy to carry, convenient for examining.
  • 6.4" high resolution color LCD screen
  • Automatically calculate backfat and lean percentage of swine.
  • High speed USP port supports high capacity U disk, and color laser printer

OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
OB report function

Specifications

  • Optional mouse to operate easier
  • Adopted AC and DC to supply power
  • Equipped with two high-capacity lithium batteries with more than 200 minutes working time
  • Language: Chinese/English.
  • Single probe socket, automatically identifies the probe, support several optional probes.
  • Body mark: General cardiac, Bovine, Canine, Equine, Feline, Cardiology, Swine (7 kinds), total 27 body marks with probe position.
    • Display mode: B, 2B, 4B, B/M, M, (5 kinds)
    • 8 kinds of magnification, maximum display depth is 240mm.
    • Gain range: 0-127dB.
    • Dynamic range: 27-90dB.
    • Gray: 256.
    • Intelligent TGC control: near-field and far-field adjustment.
    • Frame frequency: 30 frames/second.
    • Pseudo-color: 8 kinds including black/white
    • Permanent image storage: 100 frames.
    • Cine loop: 256 frames.
    • General measurement: Distance, Perimeter, Area (trace method, ellipse method), volume, etc.
    • Cardiac measurements: depth, slope, heart rate, time.
  • Dual-mode TV output: PAL/NTSC, connecting to video recorder and ultrasonic working station.
  • Adapter rating:100-240V ,50-60Hz, 70VA. Output of adapter: DC12V 3.0A. Maom device rating: DC12V 3.0A..

Unit

Net weight: 1.5kg
Main unit size: 326x162x45mm(length x width x height)
