Product Description |

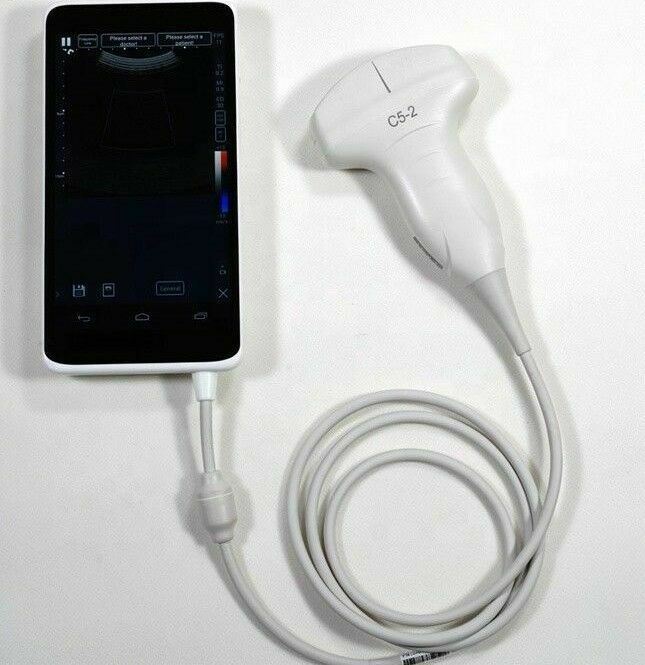

Handheld Ultrasound Scanner |
Monitor |
6 inch LCD high-resolution (1280*720) full touch screen |
Probe Type |
80 elements |
Frequency |
Convex array 2-5MHZ / Linear array 5-10MHZ |
Displaying Mode |
B, M,C,B+B,B+M |
Cine-loop |
1024 Frames |
Frame Rate |
Convex:16fps / Linear:24ps |
Depth |
Convex:≤200mm / Linear: ≤70mm |
Grayscale |
256 level |
Gain |
Convex: 0~150dB adjustable,Linear: 0~120dB adjustable |
Image Processing |
Line smoothing, Frame smoothing, Transversal filter, Longitudinal filter, Sharpening, Gamma transformation, etc. |
Power |
Built-in battery(5400mAh) to support 2h for continuous scanning |
Image Format |
JPEG, DICOM |
Language |
Over 60 different language including English, Spanish, German etc. |
Measurement |
Length, Area, Arrow, Angle, Perimeter, Text. |
Camera |
5M auto focus |
Wireless Connection |
WIFI, BLUETOOTH,3G/4G(LTE,WCDMA/EDGE/GPRS/GSM) |
Memory |
64GB |
Connection Interface |
Micro USB2.0, HDMI,3.5mm headphone jack, |
Operating System |
Android |
Printer |
WIFI printer |
File Management |
Patient file & image file |
Cloud |
Cloud image storage, cloud file management, standard API & SDK interface, Information sharing platform |
Technical Training |
Online and offline tutorial, self-built online training material |
Remote Software Update |
Yes |
Size |
165*85*23mm |
Weight |
Convex:570g / Linear:550g |
Standard Configuration |
Main unit (Transducer included): 1pc,USB wire: 1pc
Adapter: 1pc
Carrying bag: 1pc
Bag of gel(20g): 1pc |
