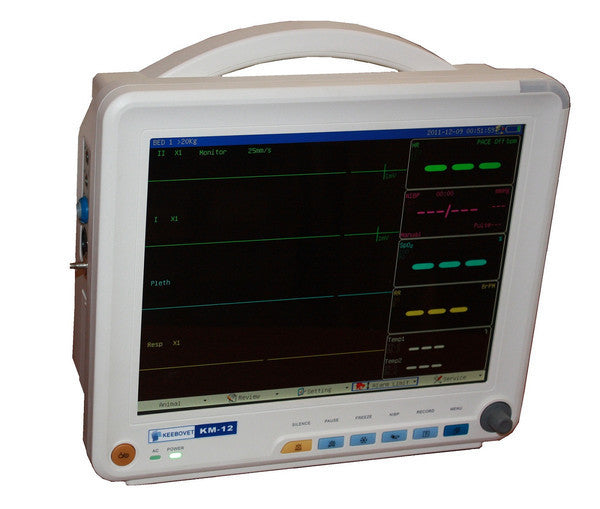

Veterinarian Software Monitor KM-12 With Printer

12" Vet Specific Software Patient Monitor

KM-12 Vet monitor comes with all accessories for animals and animal specific software.  This model is user friendly and has great customer reviews.


  • 12" color TFT display, up to 12 waveform
  • One level menu, easy to use
  • Parameters including ECG/RESP, SpO2 , NIBP, TEMP, Pulse Rate and IBP(optional)
  • Maximum 720 hour graphic and tabular trends of all parameters
  • Built-in recorder and battery
  • Suitable for adult, pediatric and neonatal patient
  • Arrhythmia analysis, ST calculation, Pace analysis Anti-ESU, anti- defibrillator
  • Standard network interface, can connect to Central monitor system
Main Functions
  • 12” widescreen TFT, Resolution ratio: 800×600, up to 12 waveform
  • Display ECG, SpO2, pulse rate, NIBP, respiration, temperature
  • Plumbic acid battery
  • Recorder (Built-in)
  • CO2
  • Anesthesia depth

Technical Specification

  • Dimensions:  300 × 275 × 150mm
  • Weight 4 kg

Power Supply and Battery

  • 4 Power Supply 100~240 VAC, 50/60 Hz, Pmax=90VA Fuse T1.5A
  • Battery:  2.6 Ah 12V rechargeable battery
  • Operating time after full charge is more than 1 hours
  • Operating time after the first alarm of low battery will be about 5 minutes
  • Maximum charging time is less than 6 hours.
  • Signal Interface Network interface standard RJ45 Socket


Type: Patient Monitors
