Bovine Visual Insemination Gun Instrument Veterinary Transcervical Insemination

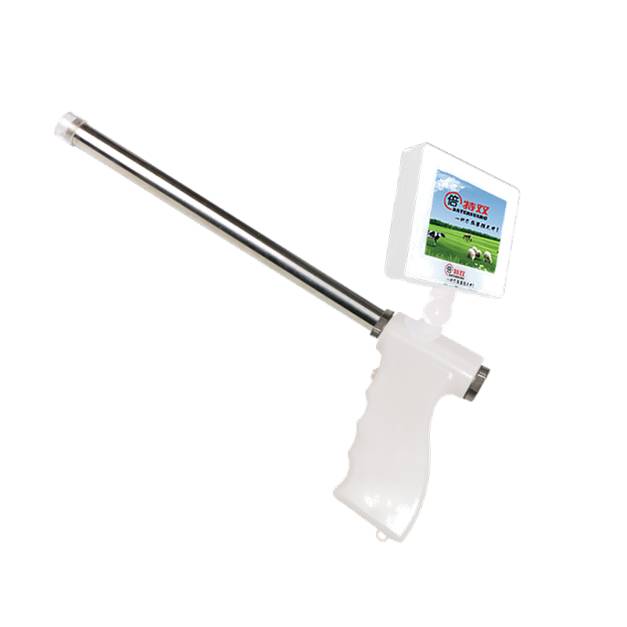

User friendly design, the gun type handle is convenient for gripping, and the displayer can be installed on the top at 120° up and down and 360° left and right.
The displayer can be compatible with any working environment such as strong light, dark, cold, dry, hot and humid.
The camera is installed in the front of the metal probe tube body, with waterproof function.

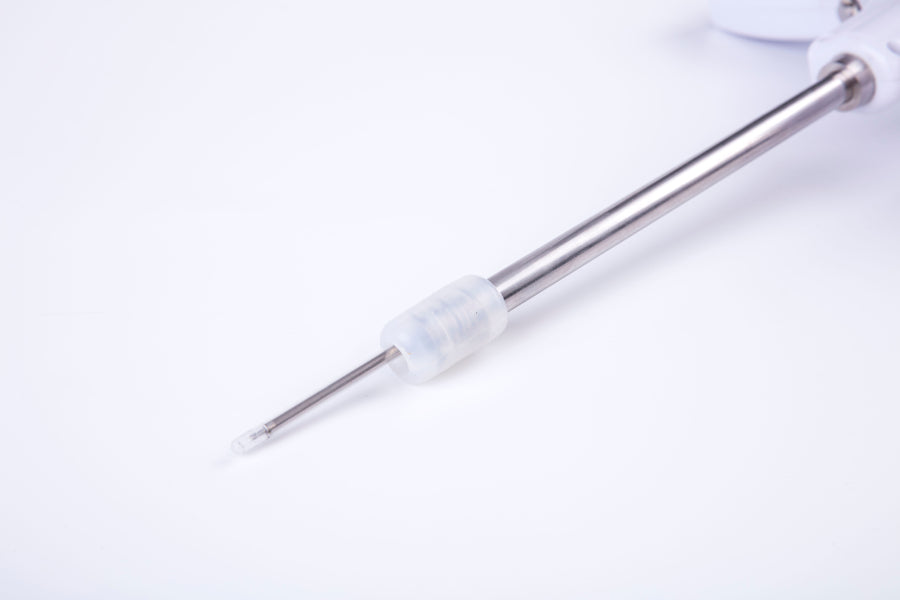

The front end of the probe is designed with a transparent viewing angle expansion head, which makes it easier to observe the surrounding and front end.
The handle switch controls the electric air pump and makes a ventilation passage.
Video, photo, playback, image enlargement, image output printing, you can clearly record every moment.
- The spherical head vas deferens design combines the physiological structure of the cow. According to the experiment, when the sphere of the vas deferens reaches a certain size, it is not obstructed by the fold of the cervix.
- During the insemination process, the insemination process can be easily viewed at any angle and position.
- Enable the air channel at any time to flush the mucus that blocks the camera.
- During insemination, if the cow produces cramping, the vibration massage function is turned on, so that the cow can complete the insemination in a comfortable environment (optional function).
- Turn on the endoscope thermostat function at any time, close to the cow's body temperature (optional function).
- Total length: 45cm
- Handle width: 8cm
- Endoscopic Probe Rod: 35cn
- Sheath material of Diameter: 22mm
- Gas Channels: 2mm
- Camera: 3.9mm Medical Megapixel (cold light source)
- Camera: 180 Wide Angle
- Service Aisle: 11mm
- Pixel: 1 million
- Screen Size: 3.5"
- Resolution Ratio: 640x480
- Screen Adjustment Angle: Capable of rotating up and down 120°m 360° left and right.
- Extension length: 15mm
- Power Supply: 5V2000MA rechargeable battery (removable, replaceable)
- Feeler Lever: 304 Stainless steel
- Operating Temperature: -10-50° (heating thermostat function, which is not limited by low temperature)
- Operating Humidity: 15-85% (the probe camera has waterproof function, which is not affected by the environment)
