WED-3100Vet

Welld Handheld Digital Vet Ultrasound Scanner

WED-3100Vet is a great partner for veterinary clinics to make regular diagnosis and calculations of gestation for cat, dog, swine, sheep, equine, bovine, etc.  It provides excellent images with advanced ultrasonic frame forming technology. Full digital technology with non-tortured echo ensures high definition images. Practical for use clinics, animal hospitals, and outside.  It is a good choice for vet echocardiography with doppler function heart rate.

Features

  • Net weight is 700g
  • 5" TFT color LCD screen
  • Easy to use GUI menu
  • Low power consumption
  • USB 2.0 real-time picture uploading to PC
  • Full digital beam forming technology
  • Automatic probe identification
  • Gama correction, Color encode, Image Smoothing

Technical Specification

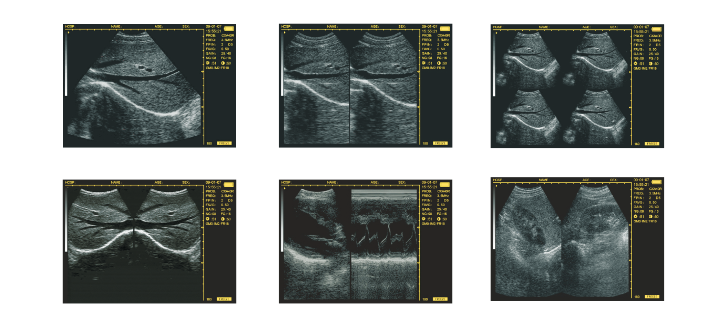

  • Display Modes: B, B+B, B+M, M, 4B
  • Scanning Depth: 80-220MM
  • Gray Scales: 256
  • Cine-loop: 400 frames
  • Image Permanent Storage: 128 Frames
  • Image Conversion
  • Measurements: distance, circumference, area, volume, EF rate, heart rate,time
  • OB Measurements: BPD, GS, CRL, FL, HC, AC, EDD, GA, FW
  • Port: Video(PALD, NTSC), USB 2.0, Mouse
  • Body marks: 40
  • Comments: date, time, name, sex, age, hospital, etc.
  • Applications: abdominal, OB/GYN, urology, cardiology
  • Dimensions: 230mmX120mmX38mm
  • Battery Working: >3 hours

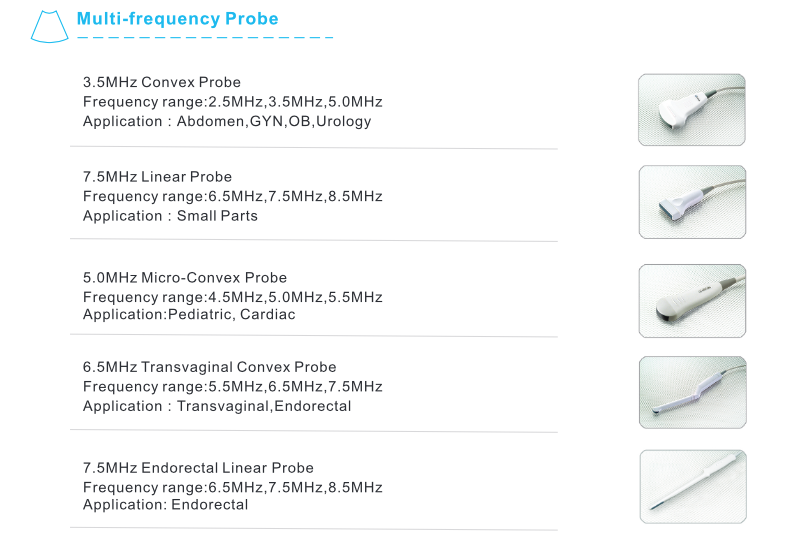

Probes

  1. 3.5MHz Convex Probe Frequency range: 2.5MHz,3.5MHz,5.0MHz  or Rectal linear probe 5.5/6.5/7.5 for veterinary use. Application:Abdomen, GYN, OB, Urology
  2. 7.5MHz Linear Probe Frequency range: 6.5MHz,7.5MHz,8.5MHz Application: Small Parts
  3. 5.0MHz Micro-Convex Probe Frequency range: 4.5MHz,5.0MHz,5.5MHz Application: Pediatric, Cardiac
  4. 6.5MHz Transvaginal Convex Probe Frequency range: 5.5MHz,6.5MHz,7.5MHz Application: Transvaginal, Endorectal
  5. 7.5MHz Endorectal Linear Probe Frequency range: 6.5MHz,7.5MHz,8.5MHz Application: Endorectal

Standard configuration

  •  3.5MHz convex probe (Frequency range: 2.5MHz,3.5MHz,5.0MHz)
  •  SP-3 power adapter
  •  Mouse
  •  Car charger
