Affordable Low-Cost Mixed Practice Ultrasound Machine.

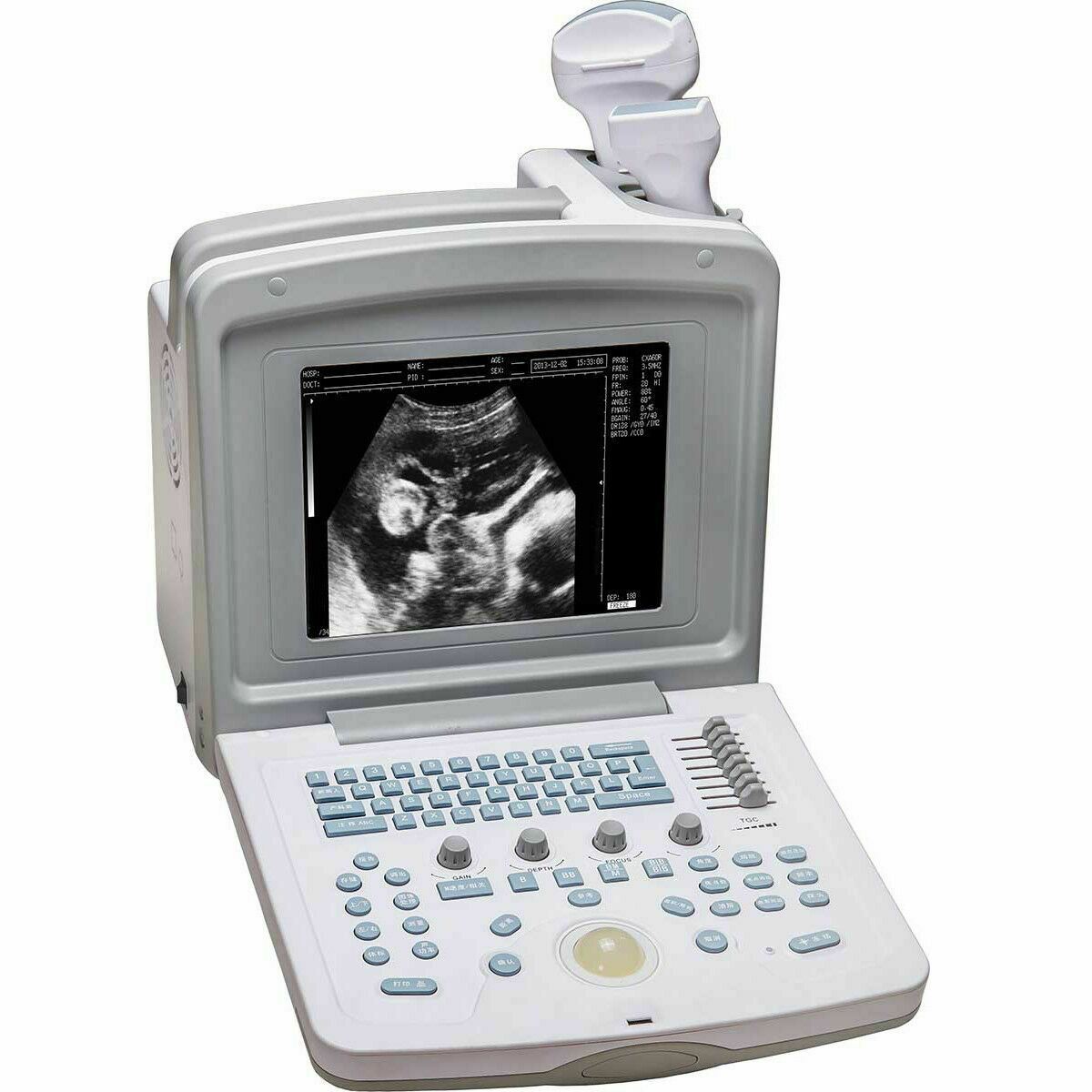

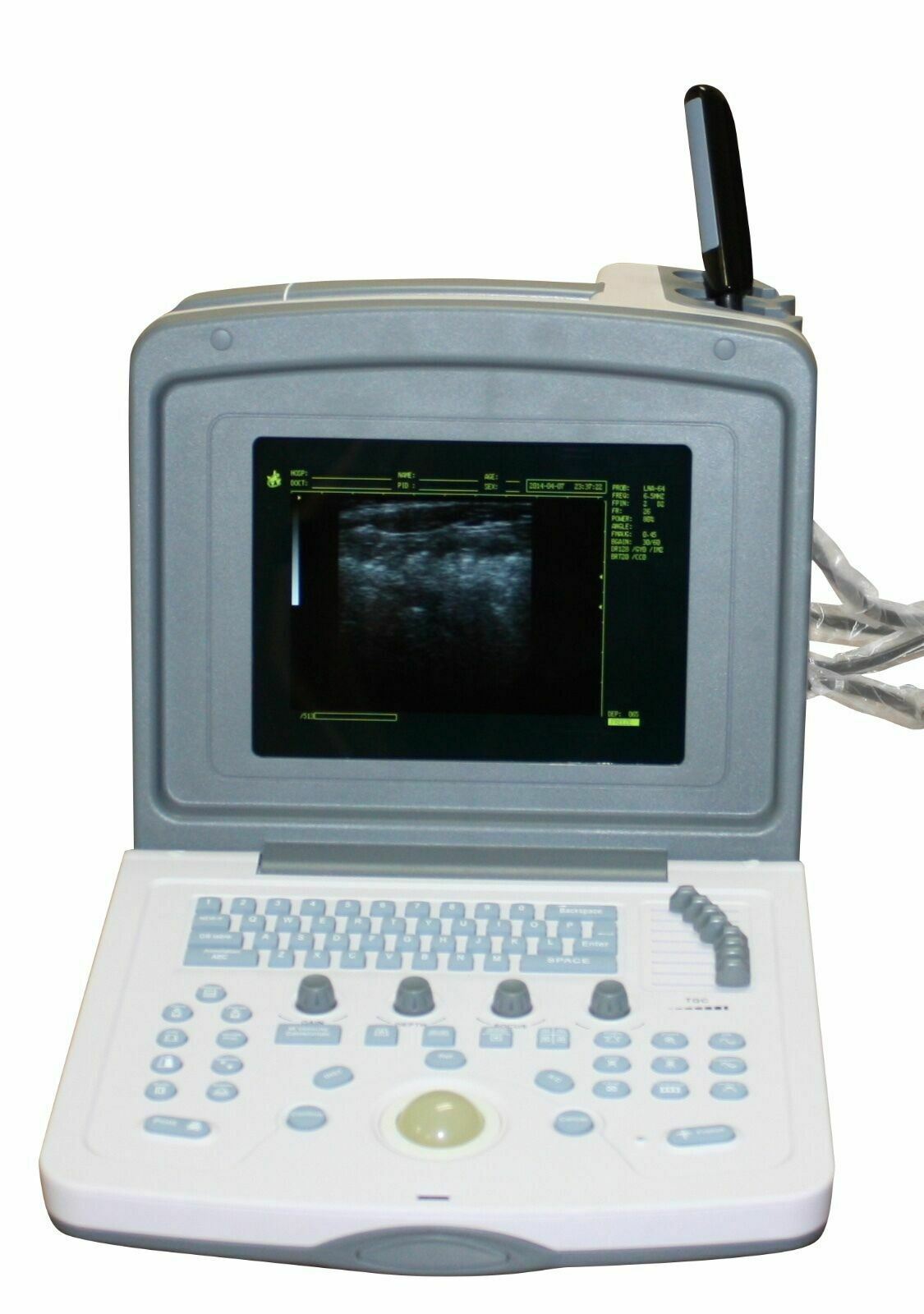

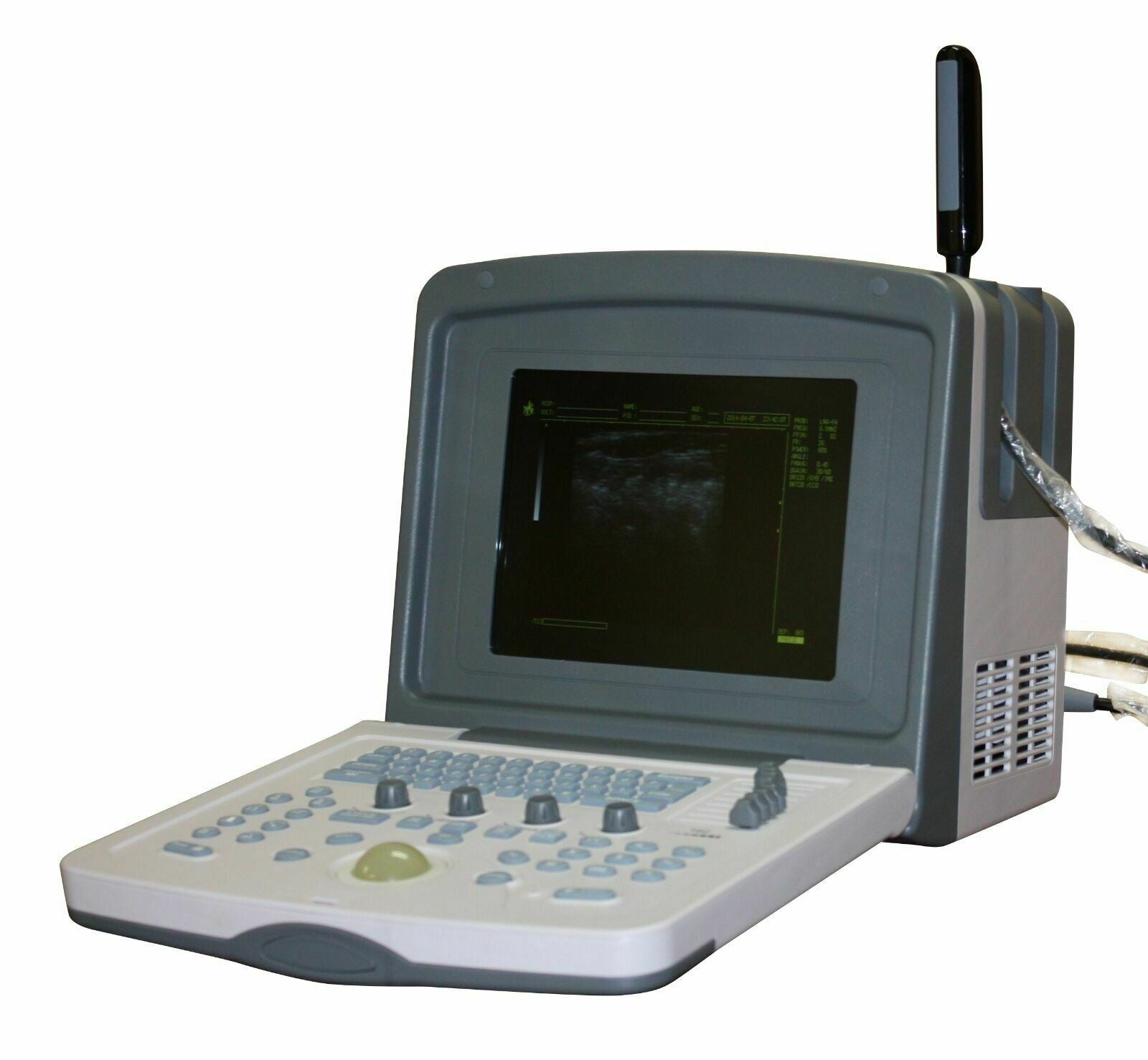

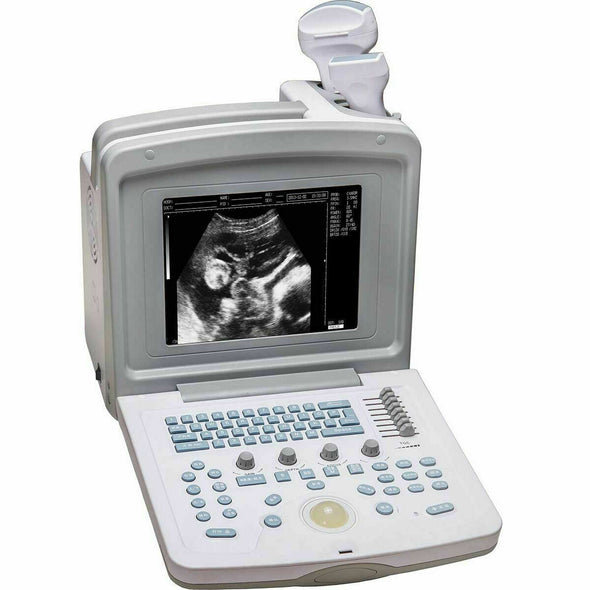

The WED-180V digital ultrasound scanner features an advanced ultrasonic frame forming technology, producing excellent image quality and processing real-time images to ensure the proper diagnosis. This ultrasound is made for veterinary examinations on a cat, dog, swine, sheep, and equine. The WED-180V is compact and lightweight, allowing for easy use. With two probe connectors with automatic identification and scanning angle adjustment, the WED-180V will provide quick results and better care.
Features
- Lightweight: 6.1kg
- 12.1” TFT color LCD (1024*768)
- THI (tissue harmonic imaging)
- Automatic report generation (Normal/OB)
- Probe automatic identification (2 probe connectors)
Technical Specifications
- Scanning mode: Convex/Linear/Micro-convex
- Display modes: B,B+B,B+M,M,4B,B+2B,6B,12B
- Scanning depth: 40mm-240mm
- Gray scales: 256
- Cine-loop: ≥500 frame
- Image permanent storage: 64 frames
- Image conversion: up/down, left/right, black/white
- pseudocolor: 3
- Local zoom: 2 times both in real-time and frozen
- Measurement: distance, circumference, area, volume, EF rate, heart rate
- OB measurements: EDD, GA, FW ( BPD, GS, CRL, FL, HC, AC )
- Port: PAL-D, USB 2.0, RS-232
- Monitor: 12.1 inch color LCD (brightness/contrast adjustable)
- Body marks: 40
- Comment: date, time, name, sex, age, doctor, hospital, annotation (whole screen comment input)
- Power supply: AC 100V~240V, 50/60Hz
- Standard Probe configuration: 3.5MHz Convex
Options
- 6.5 MHz Vet Rectal
- 7.5MHz Linear
- 5.0MHz Micro-Convex
- Video Printer
- Biopsy Bracket
- Cart
