KX5200V

Veterinary Wrist Ultrasound Scanner

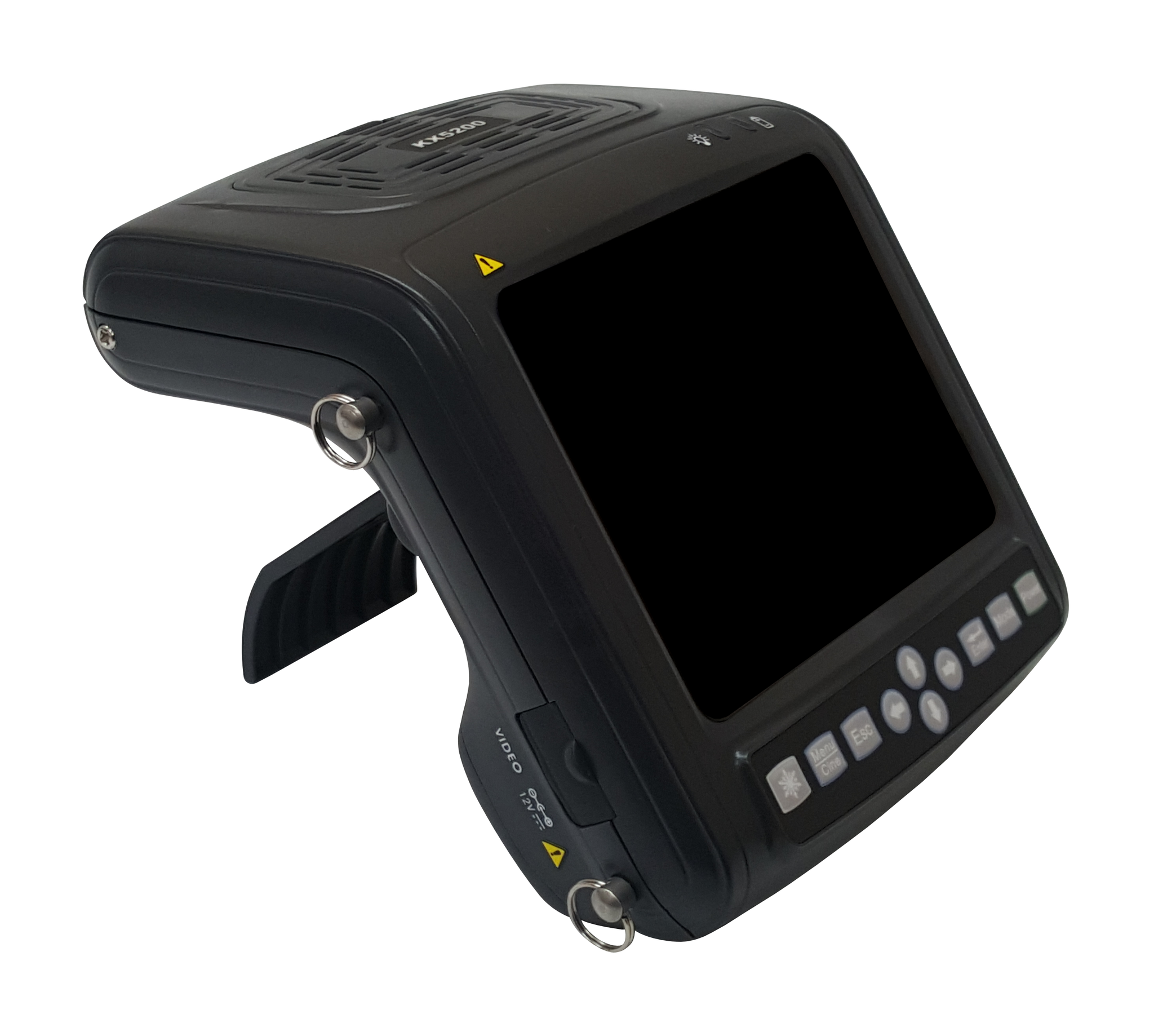

Kaixin KX5200V is a full digital B mode ultrasound scanner with extensive veterinary clinical applications. It gives an excellent image quality with high resolution and high penetration.  It is lightweight and can conveniently be worn on the wrist or hung on the neck for hands free use.

Purchase with us for best price, and a two year warranty on ultrasound and probe.

Features

  • Digital image technology
  • Ingenious outline and multifunction
  • Different probes can be used optionally
  • Very light for using

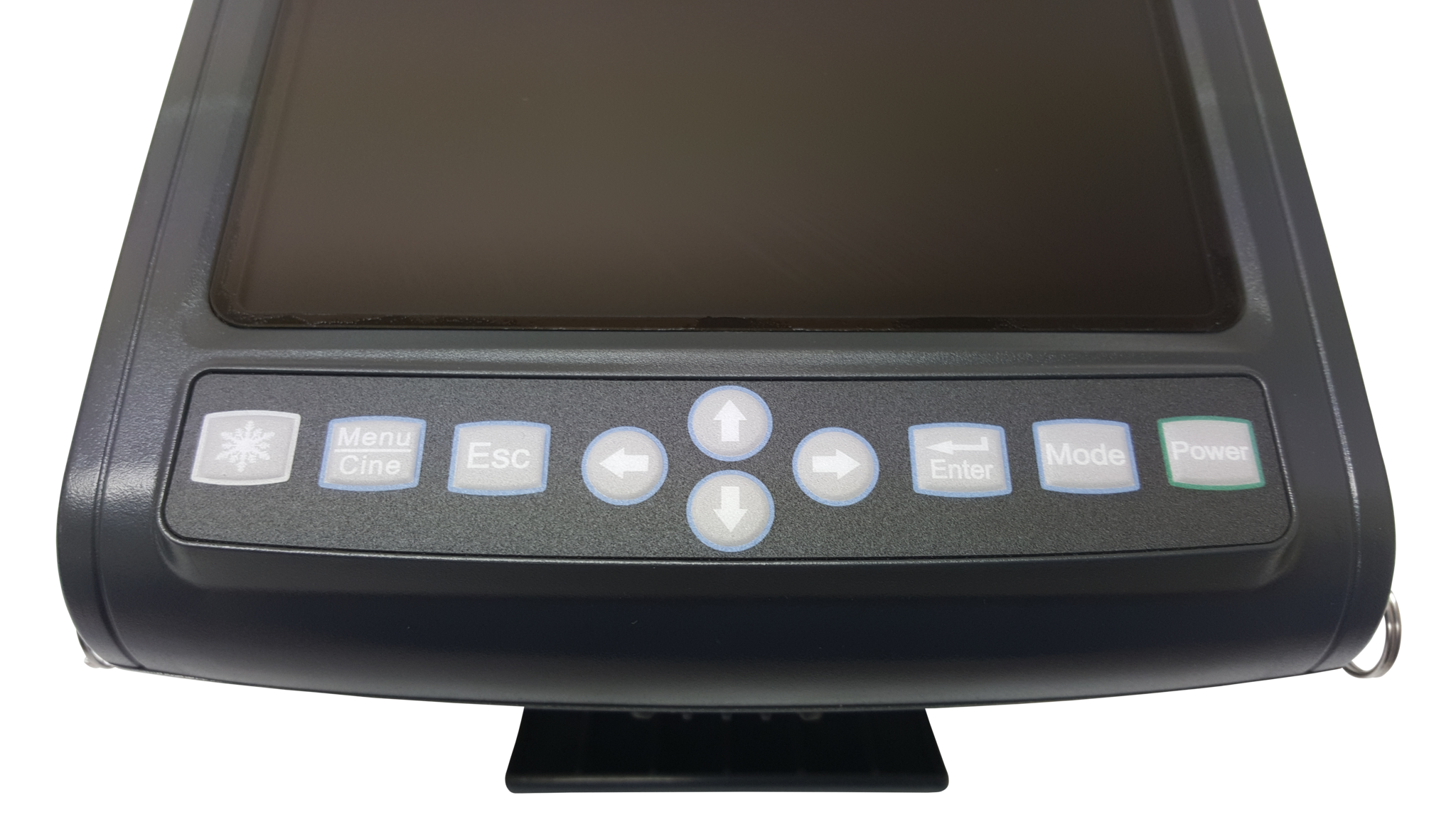

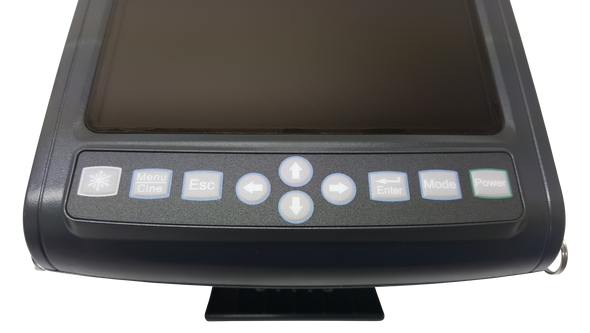

  • Ergonomic keyboard
  • USB disk function makes the images easily transferred into computer
  • Rechargeable battery could last at least 2 hours

Specification

  • Technology: All-digital imaging technology, full digital beam forming
  • Scanning methods: electronic convex, electronic linear, electronic micro-convex.
  • Scanning technology: Real-time dynamic imaging, harmonic imaging.
  • Probe: Multi-frequency probe series
  • Monitor: 5.7" high resolution non-interlaced SVGA display
  • Gray scale of the ultrasound machine: 256 levels.
  • Display modes: B, B/B, B/M, M, or 4B
  • Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
  • Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and *3.0.
  • Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
  • CINE loop: 256-frame.
  • Zoom: Intelligent local zoom in real-time and frozen mode
  • Image storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station
  • Image Processing: Depth enhancement/pan function, Left/right, positive/negative, vertical, horizontal flip and B/W conversion, angle change, Image freeze/unfreeze, gamma correction, EDGE enhancement for image after-processing, gray transformation, gray rejection etc, frame correlation function, adjustment and display of near field, far field, total gain and dynamic range, Pre-processing: IP selection, dynamic range, EDGE enhancement, smooth, frame averaging, scanning angle selection, line density selection etc
  • Measurements: B mode: Distance, circumference, area, volume, ratio, angle, % stenosis, histogram, profile etc, M mode: Distance, time, velocity, heart rate etc, General software packages for Abdomen, OB/GYN, Small parts, Urology, Cardiology etc, Obstetric package including 10 tables, automatic calculation of EDD, BPD, GS, CRL, FL, HC, AD, AC, GA, FW and fetus weight, 4 veterinary body marks
  • Report: Obstetric report
  • Documentation: Full screen documentation, hospital name, Patient name, date/time.
  • Power Supply: AC 100-240V~, 50-60Hz
  • Power consumption: ≤ 40VA

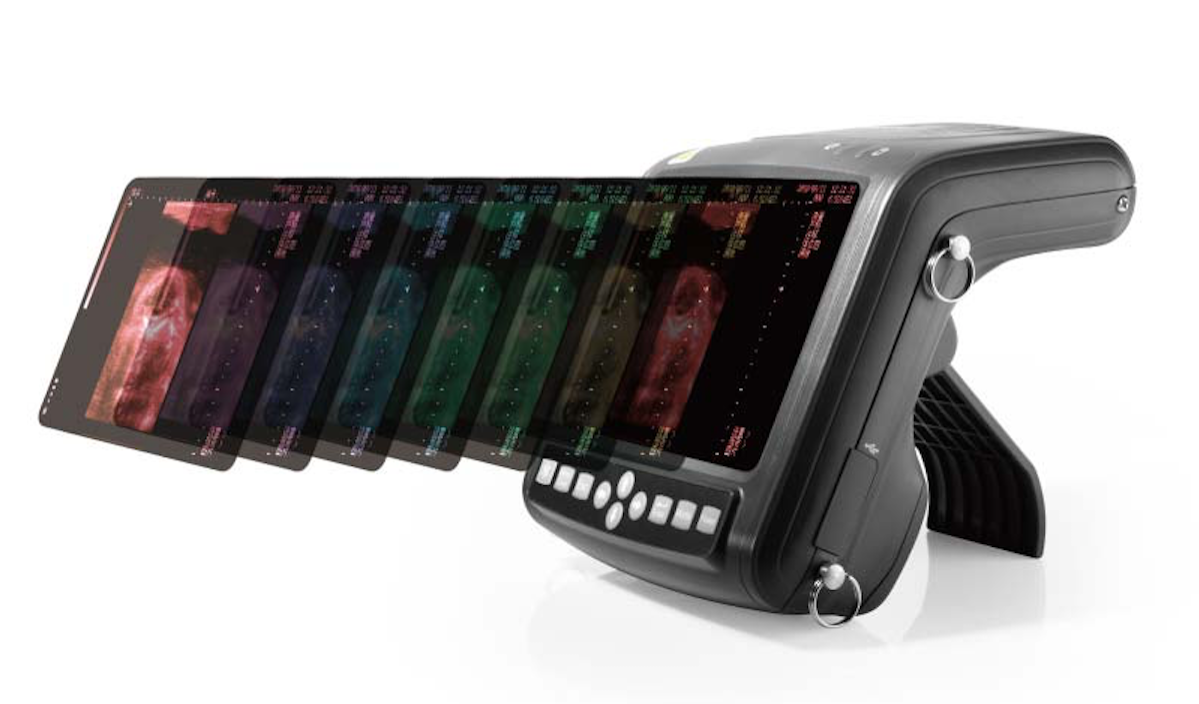

  • Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable

Standard Configuration

  • KX5200V main machine
  • 5.7Mhz high resolution non-interlaced LCD display
  • 1 probe connector
  • 256-frame CINE loop
  • 100-frame image storage
  • USB disk port
  • Measurement & calculation software packages
  • 6.5MHz linear veterinary rectal probe (for veterinary endorectal)
  • 4 veterinary body marks

Optional Probes

  • 3.5MHz convex abdomen probe (for veterinary abdomen, GYN, OB, Urology)
  • 4.0MHz convex rectal probe (for veterinary endorectal)
  • 4.0MHz convex rectal probe with handle (for veterinary endorectal)
  • 5.0MHz micro-convex cardio probe (for veterinary cardio)
  • 6.5MHz linear veterinary rectal probe with handle(for veterinary endorectal)
  • 6.5MHz convex transvaginal probe (for veterinary endovaginal)
  • 7.5MHz high frequency linear probe (for veterinary small parts, orthopedics, breast, musculoskeletal)



Optional

  • Belt
  • Biopsy needle-guided brackets
  • Ultrasound working station trolley
  • USB software with connection cable
  • Ultrasound goggles
  • Rechargeable power supply
  • Rechargeable power supply in car
  • Thermal printer (brand: Mitsubishi, model: P93W-S)
  • Printer paper (cheap)
  • Printer paper (expensive)
