MSU-1

Veterinary Wrist Full Digital Mechanical Sector Ultrasound Scanner

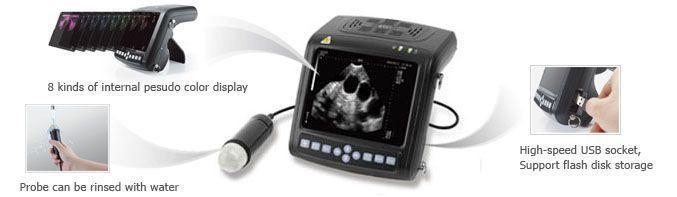

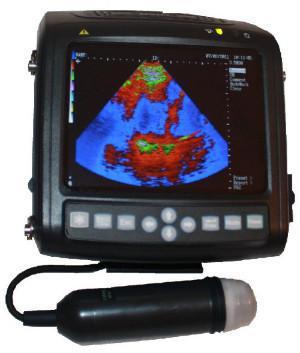

Kaixin MSU-1 is a fully digital lightweight portable small hand vet ultrasound with mechanical sector probe. It has a smart design and internal battery to make your diagnosis a more convenient mobile experience.

It gives the best results for pregnancy scanning detection of goats, sheep and pigs, but still easy to use even for cattle and mare scanning. It provides high quality pictures. It has a USB port for pictures and video data saving.

Features

  • Mechanical sector probe scanning technology
  • Ingenious outline and multifunction
  • Use on workbench, wrist, hung on chest, or with carrying box shelter for outdoor light
  • Mechanical sector probe can be used optionally
  • Lightweight with backpack integration design for ease of use
  • USB disk function makes it easy to transfer images to your computer
  • One rechargeable LI batteries with at least 2 hours working time each
  • Fully digital image technology with high resolution and penetration for excellent image quality
  • OB report function
  • Measurement Function
    • Common measurement: distance, circumference, area, volume
    • OB measurement: Bovine, Equine, Ovine, Canine, Feline, Goat, Llama, gestational weeks and expected date.
    • Cardio measurement: depth, slope, heart rate, cycle

Specifications

  • Scanning methods: Mechanical sector scanning.
  • Scanning technology: Real-time dynamic imaging, harmonic imaging.
  • Probe: Mechanical sector probe, 3.5MHz, 2.5/3.5MHz frequency
  • No. Of probe connectors: 1.
  • Monitor: 5.7'' high resolution TFT LCD monitor.
  • Keyboard: Ergonomic keyboard
  • Gray scale: 256 levels.
  • Display modes: B, B/B, B/M, M, or 4B.
  • Speed in M mode: 1s, 2s, 3s, 4s, 5s, 6s, 7s and 8s.
  • Magnification: *0.8, *1.0, *1.2, *1.5, *1.6, *2.0, *2.4 and*3.0.
  • Focusing methods: Single-point, multi-stage transmitting, dynamic focusing
  • CINE loop: 256-frame.
  • Zoom: Intelligent local zoom in real-time and frozen mode.
  • Image storage and transfer: Built-in 100-frame image storage, USB Image transfer, Ultrasound working station.
  • Body mark: 28 kinds including Swine, Ovine, Canine, Feline, Goat, Llama.
